Panasonic SA-PM53E - Page 36

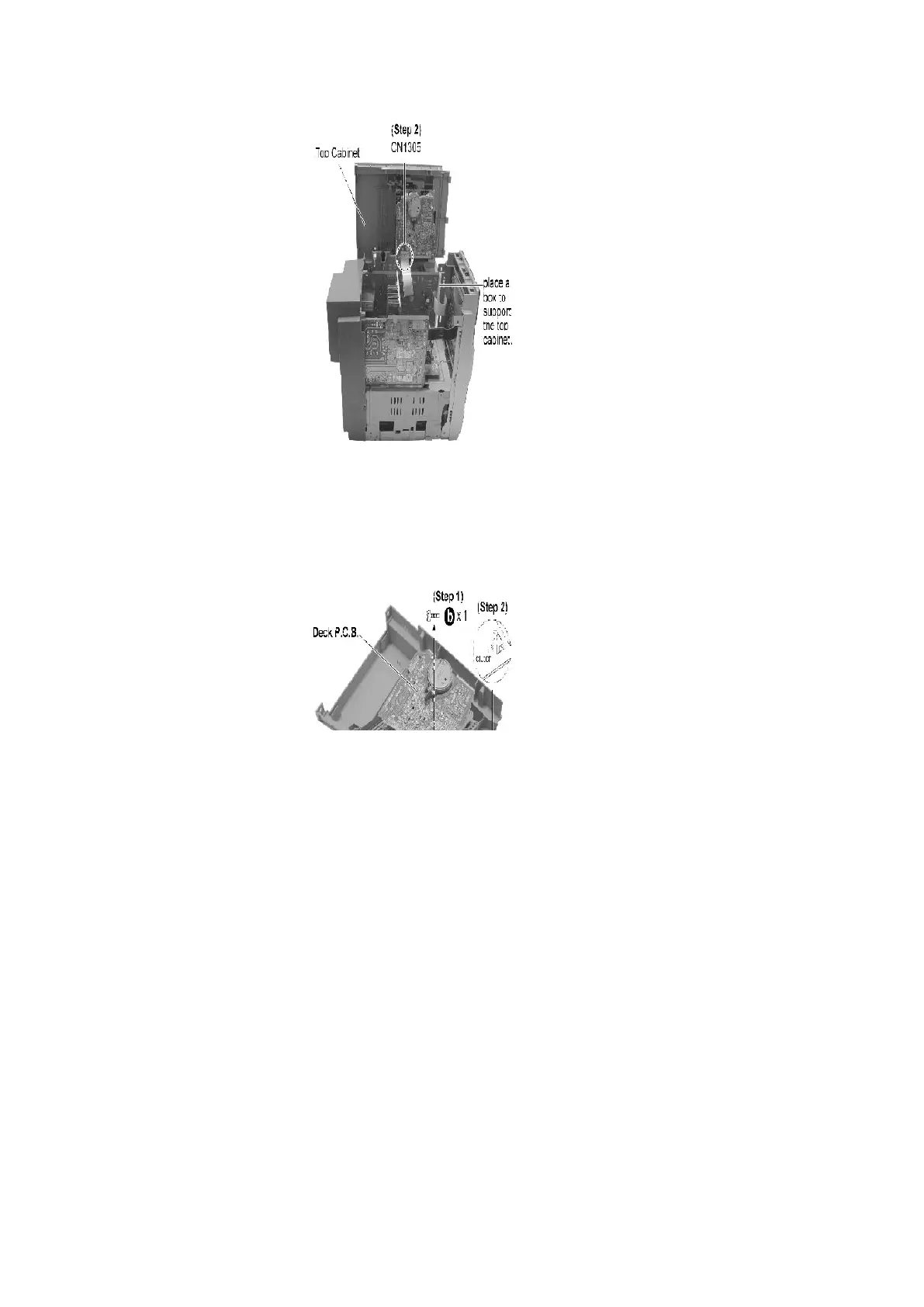

Step 2 : Place the top cabinet as shown and detach the connector CN1305.
9.6. Disassembly of Deck P.C.B. and Tape Eject P.C.B.
- Follow the (Step 1) - (Step 6) of item 9.4.
- Follow the (Step 1) - (Step 2) of item 9.5.
Step 1 : Remove 1 screw.
Step 2 : Release the clutch and remove the Tape Eject P.C.B..
36
