Panasonic SA-PM53E - Disassembly of Power P.C.B; Disassembly of CR16 Mechanism

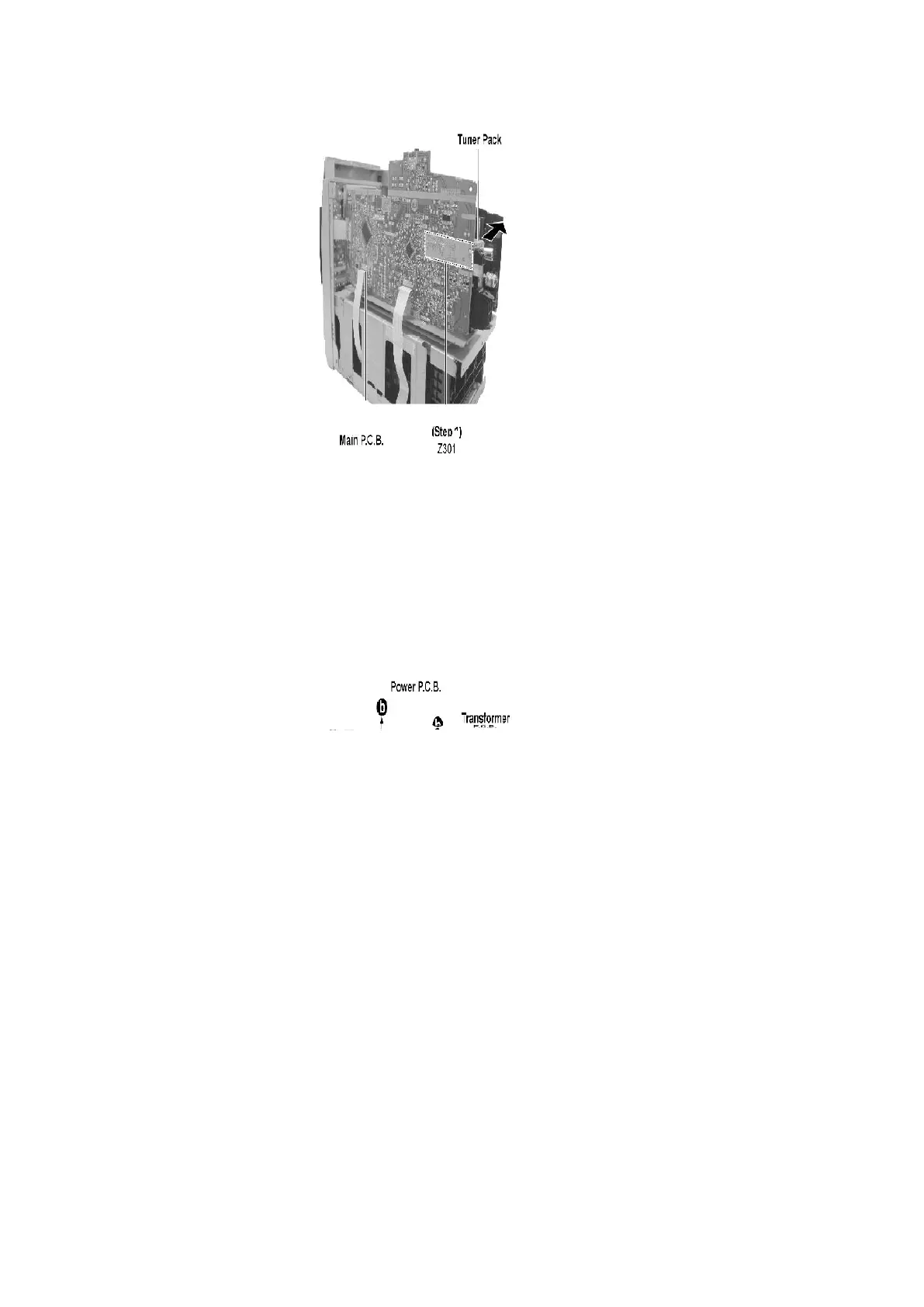

Step 1 : Unsolder Z301 and remove the tuner pack as arrow show.
9.13. Disassembly of Power P.C.B.
- Follow the (Step 1) - (Step 6) of item 9.4.
- Follow the (Step 1) - (Step 2) of item 9.5.
- Follow the (Step 1) - (Step 3) of item 9.9.
- Follow the (Step 1) - (Step 2) of item 9.10.
- Follow the (Step 1) of item 9.11.
Step 1 : Remove 5 screws.
Step 2 : Remove the Power P.C.B. as arrow shown (Be careful of the catch)
9.14. Disassembly of CR16 Mechanism
- Follow the (Step 1) - (Step 6) of item 9.4.
- Follow the (Step 1) - (Step 2) of item 9.5.
43
