Panasonic SA-PM53E - Disassembly of Transformer P.C.B

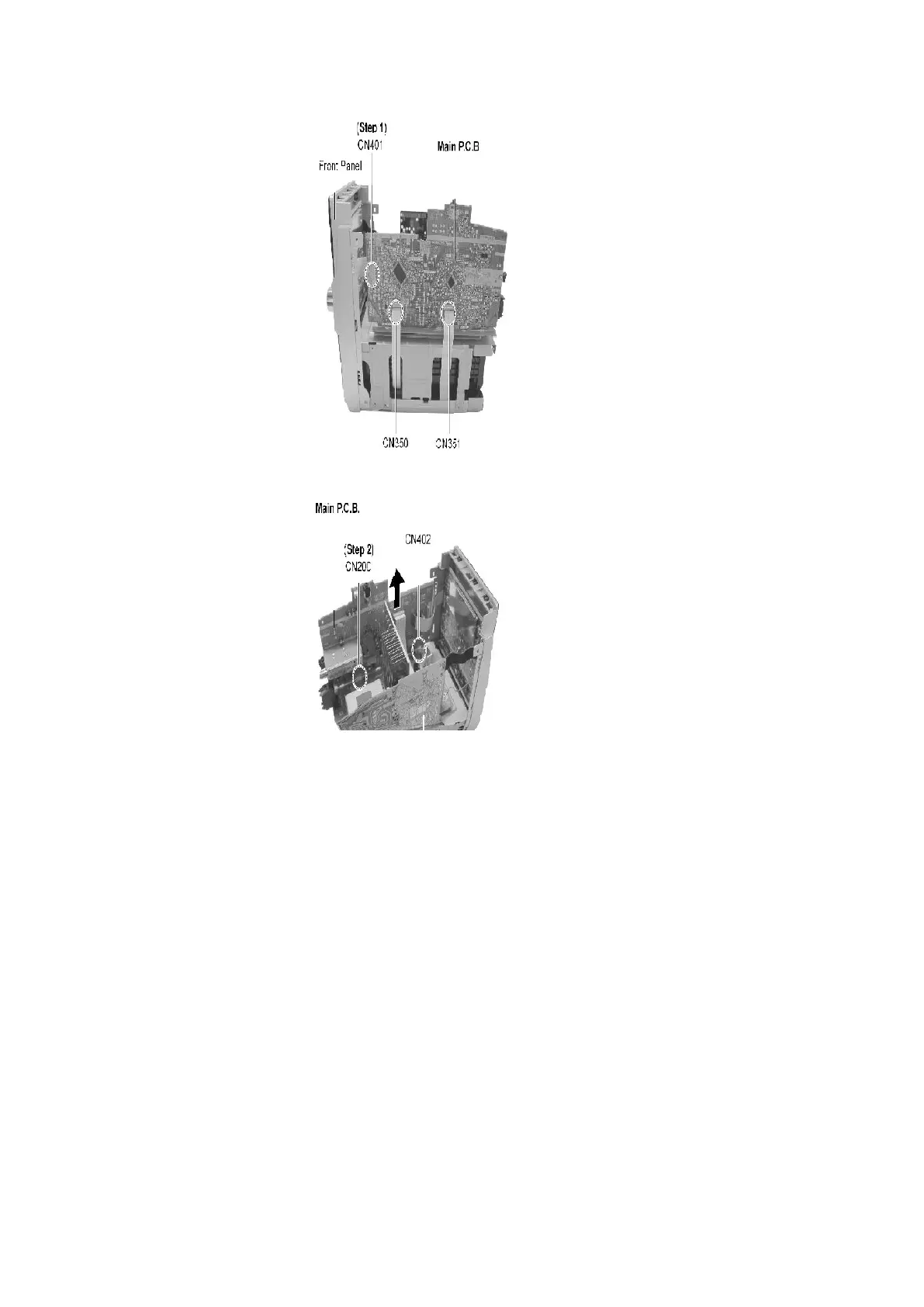

Step 1 : Detach the connector CN401, CN350 and CN351.
Step 2 : Detach the connectors CN200 and CN402 and pull out the Main P.C.B. as arrow shown.
9.11. Disassembly of Transformer P.C.B.
- Follow the (Step 1) - (Step 6) of item 9.4.
- Follow the (Step 1) - (Step 2) of item 9.5.
- Follow the (Step 1) - (Step 3) of item 9.9.
41
