Panasonic SA-PM53E - Disassembly of Main P.C.B

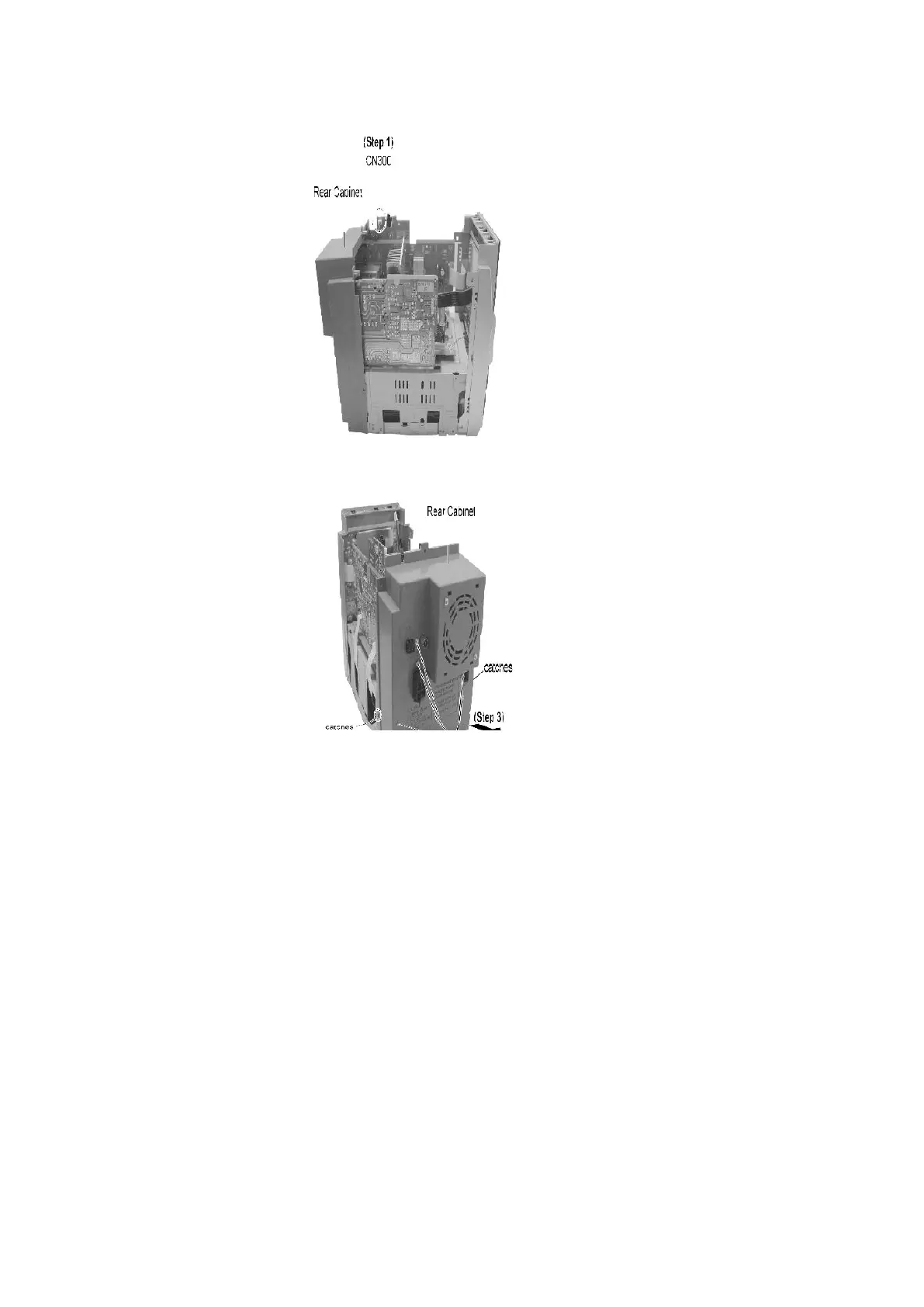

Step 1 : Detach the connector CN300.
Step 2 : Remove 7 screws altogether.
Step 3 : Remove the rear cabinet as arrows shown (Be careful of the catches).
9.10. Disassembly of Main P.C.B.
- Follow the (Step 1) - (Step 6) of item 9.4.
- Follow the (Step 1) - (Step 2) of item 9.5.
- Follow the (Step 1) - (Step 3) of item 9.9.
40
