Panasonic SA-PM53E - Disassembly of Rear Cabinet

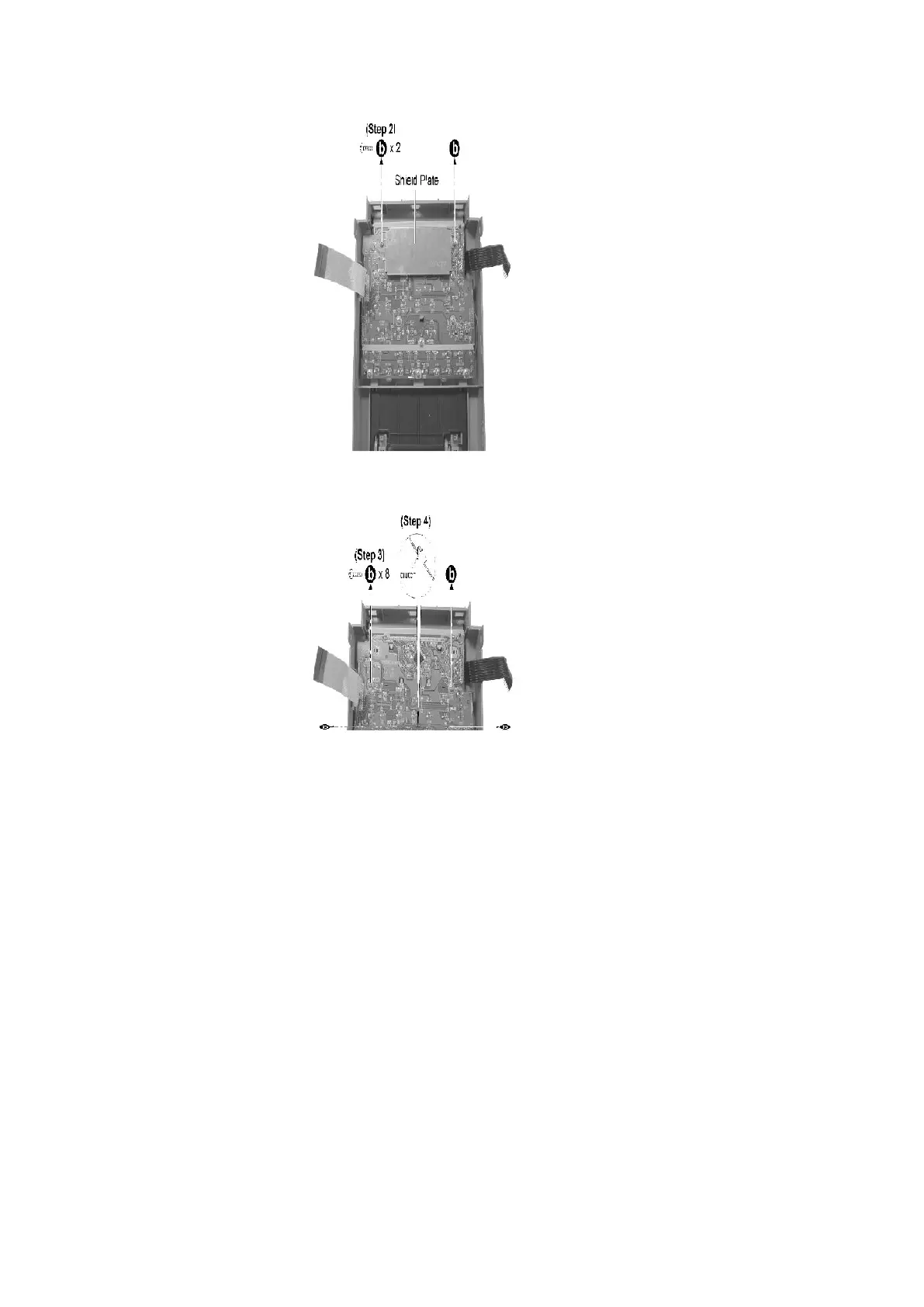

Step 2 : Remove 2 screws and remove the shield plate.
Step 3 : Remove 8 screws .
Step 4 : Release 1 clutch and remove the Panel P.C.B.
9.9. Disassembly of Rear Cabinet
- Follow the (Step 1) - (Step 6) of item 9.4.
- Follow the (Step 1) - (Step 2) of item 9.5.
39
