11.2. Operation Check without Cassette Tape

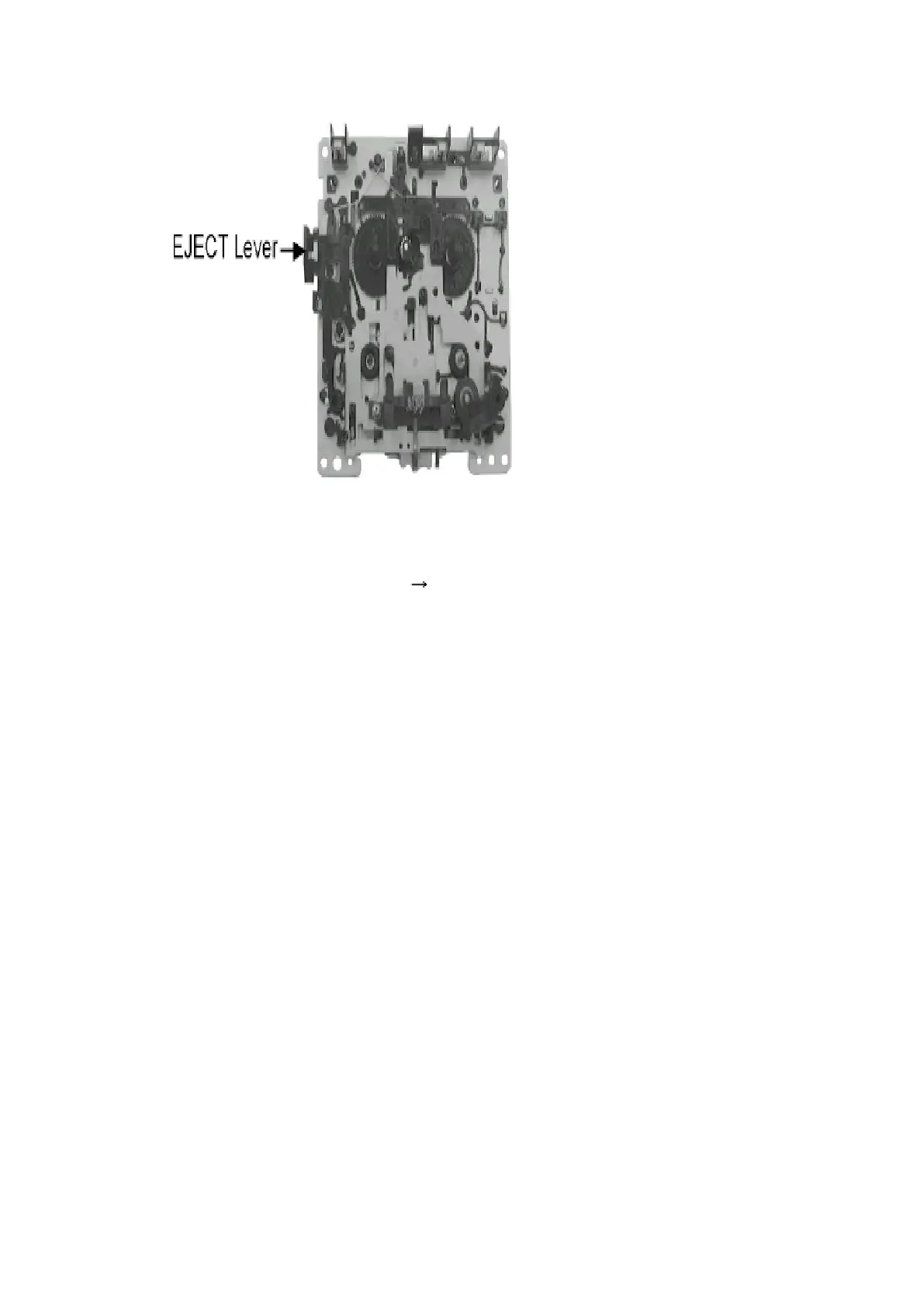

1. Pull up the EJECT lever using a rubber band. (Fig. 6)
2. Supply DC5V to MOTOR. ( MOTOR rotates.)
3. Lift up the mechanism unit’s plunger/rib with the tip of a negative
screwdriver, and operate the unit in the same timing as / supplying the
power. (Fig. 7) /
Fig. 7
12. Measurement And Adjustments
12.1. Cassette Deck Section
12.1.1. Requirements
- Test tape (QZZCFM) (QZZCWAT)
