Panasonic SA-PM53E - Disassembly of Tuner Pack

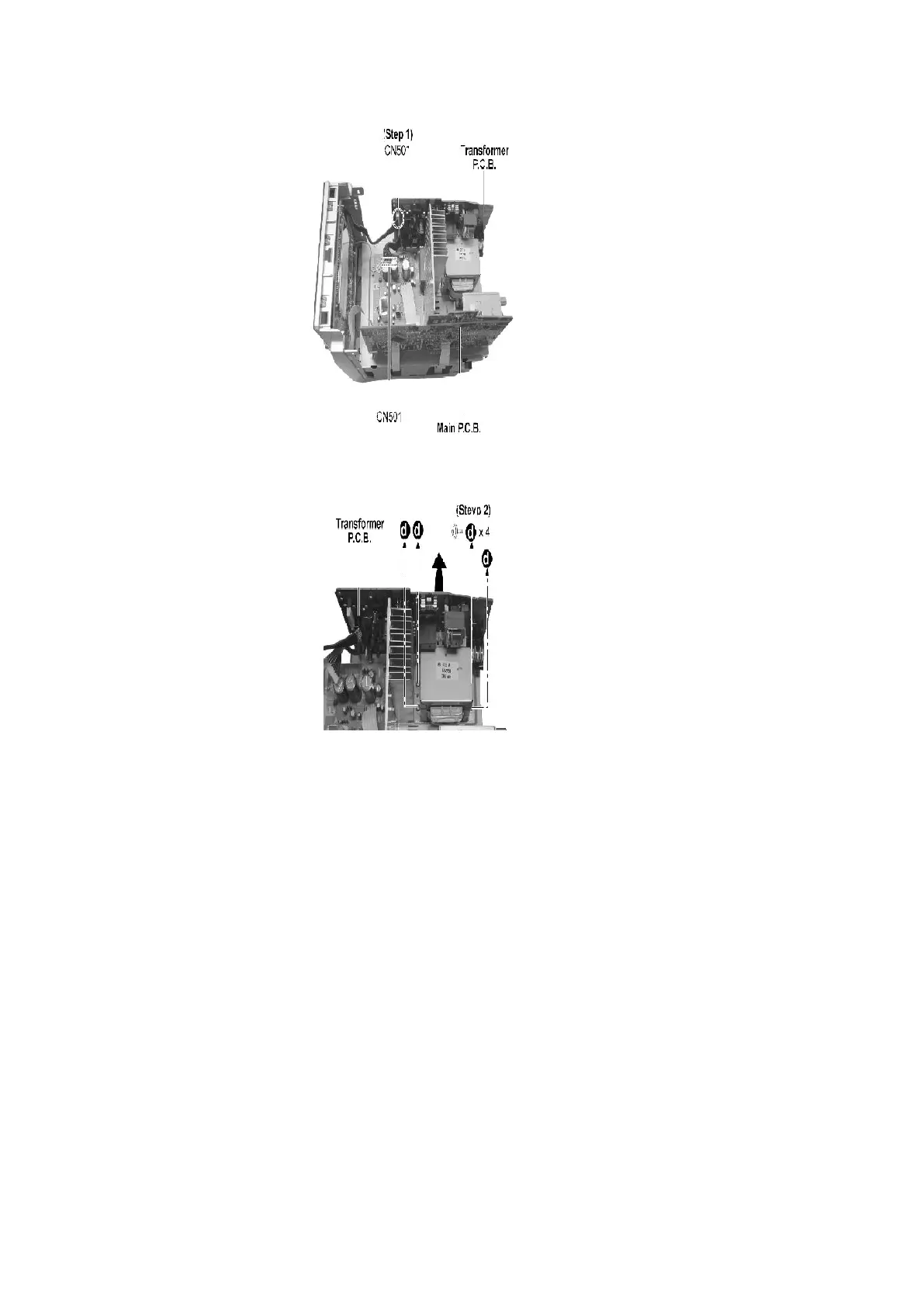

Step 1 : Detach 2 connectors CN501.
Step 2 : Remove 4 screws and pull out the Transformer P.C.B. as arrow shown.
9.12. Disassembly of Tuner Pack
- Follow the (Step 1) - (Step 6) of item 9.4.
- Follow the (Step 1) - (Step 2) of item 9.5.
- Follow the (Step 1) - (Step 3) of item 9.9.
42
