Panasonic SA-PM53E - Disassembly of Top Cabinet

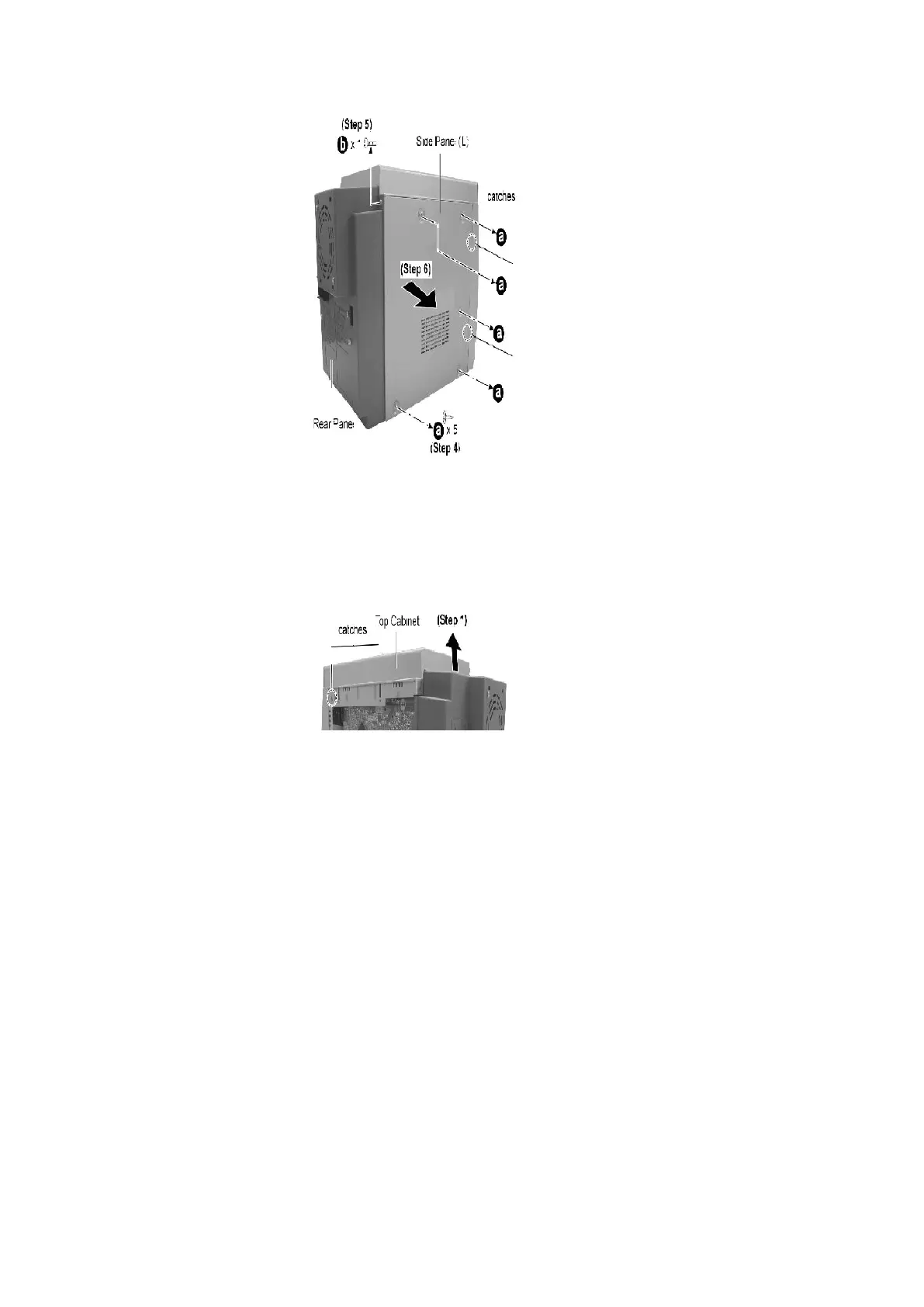

Step 4 : Remove 5 screws from the side panel (L).
Step 5 : Remove 1 screw from the corner of the side panel (L).
Step 6 : Remove the side panel as arrow shown (Be careful of the catches).
9.5. Disassembly of Top Cabinet
- Follow the (Step 1) - (Step 6) of item 9.4.
Step 1 : Lift up the top cabinet as arrow shown (Be careful of the catches).
35
