Panasonic SA-PM53E - Disassembly of Panel P.C.B

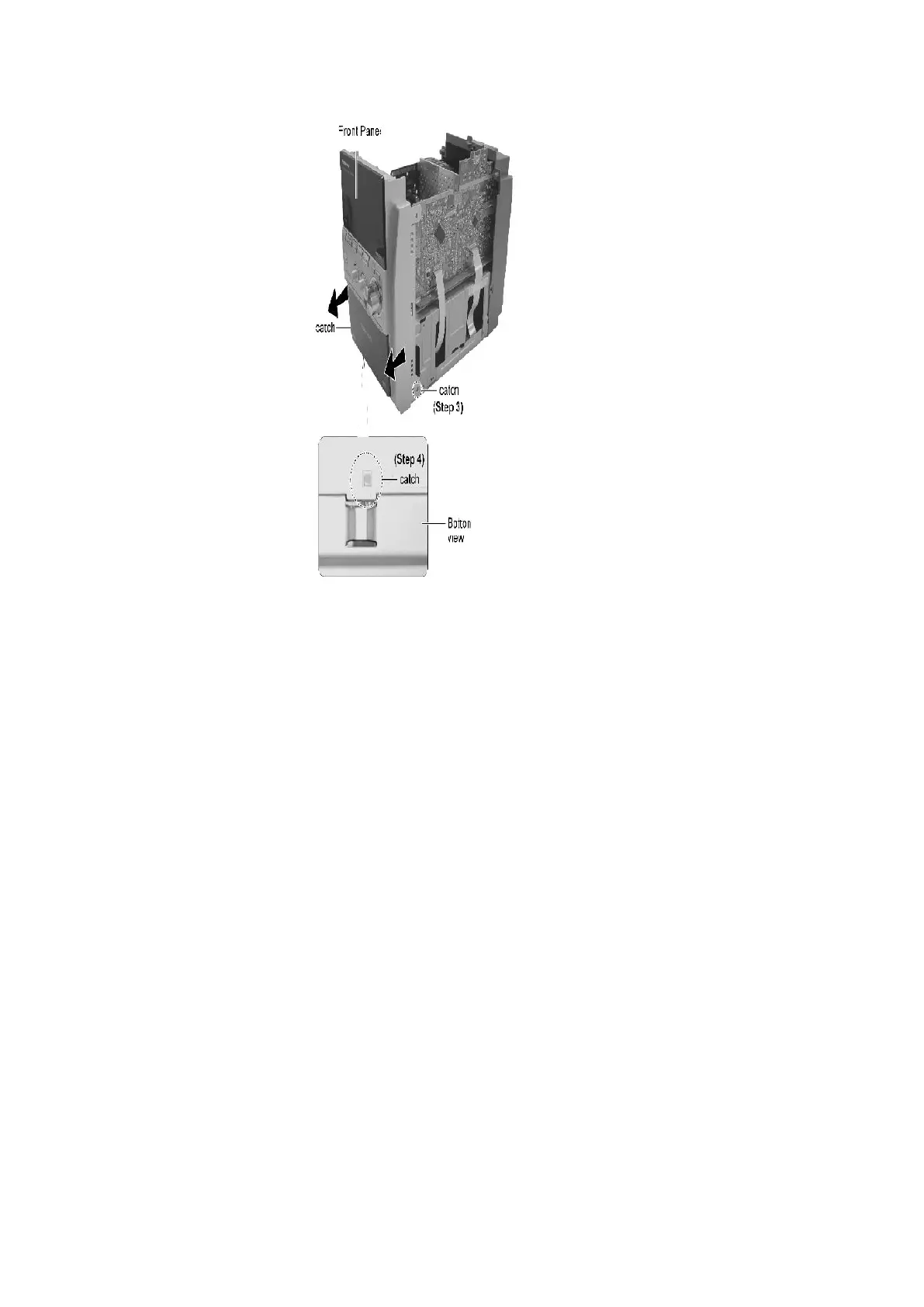

Step 3 : Release 2 catches.
Step 4 : Release the catch at the bottom cabinet and remove the front panel as arrow shown.
9.8. Disassembly of Panel P.C.B.
- Follow the (Step 1) - (Step 6) of item 9.4.
- Follow the (Step 1) - (Step 2) of item 9.5.
- Follow the (Step 1) - (Step 4) of item 9.7.
Step 1 : Remove the Volume, Treble and Bass knob.
38
