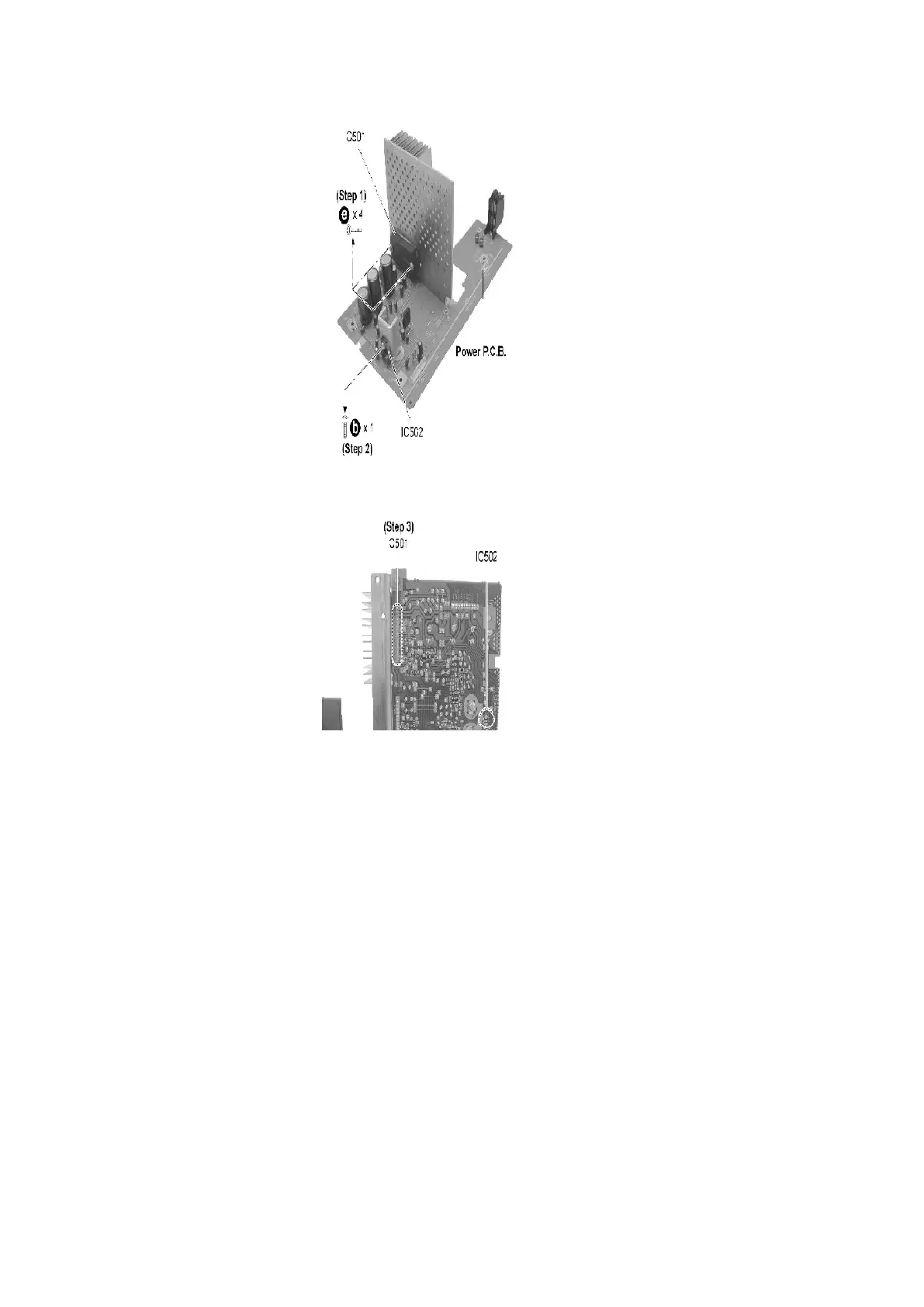

Step 1 : Remove 4 screws.
Step 2 : Remove 1 screw.
Step 3 : Unsolder the Power IC501 and 502.
9.18. Procedure for Replacing Pinch Roller and Head Block (Deck
Mechanism Unit)
- Follow the (Step 1) - (Step 6) of Item 9.4.
- Follow the (Step 1) - (Step 2) of Item 9.5.
- Follow the (Step 1) - (Step 4) of Item 9.6.
