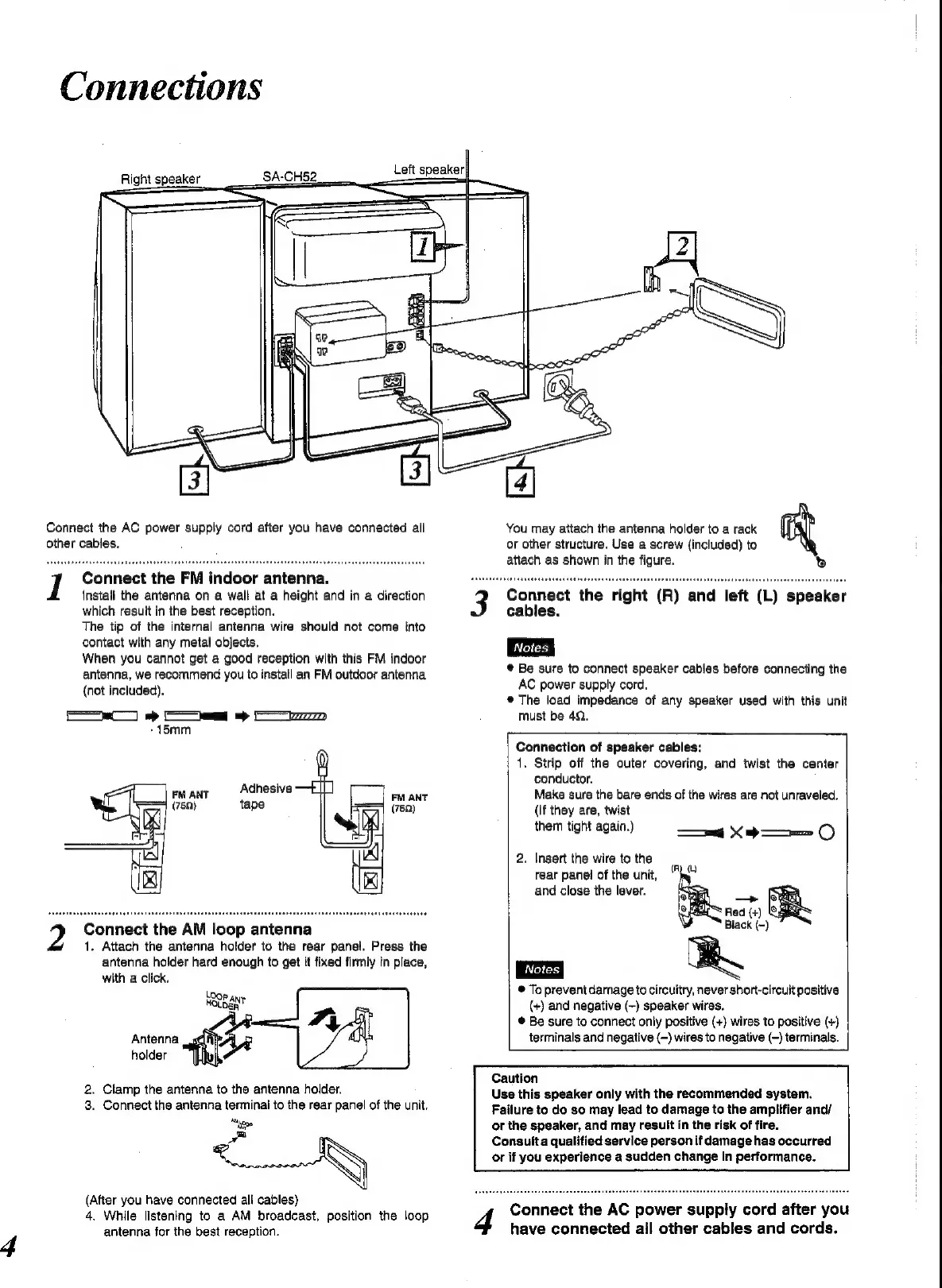

Connections
Connect the AC power supply cord after you have connected all
other cables.
a Connect the FM indoor antenna.
install the antenna on a wall at a height and in a direction
which result in the best reception.
The tip of the internal antenna wire should not come into
contact with any metal objects.
When you cannot get a4 good reception with this FM indoor
antenna, we recommend you to install an FM outdoor antenna
{not included).
Ew > Eee > EE 77m
+15mm
rant Adhesive -
(750) tape |
Connect the AM loop antenna
1. Attach the antenna holder to the rear panel. Press the
antenna holder hard enough to get it fixed firmly in place,
with a click,
een
Antenna
holder
2. Clamp the antenna to the antenna holder.
3. Connect the antenna terminal to the rear panel of the unit.
My
‘ager
(After you have connected all cables)
4, While listening to a AM broadcast, position the loop
antenna for the best reception.
You may attach the antenna holder to a rack
or other structure. Use a screw (included) to
attach as shown in the figure. &®
Connect the right (R) and left (L) speaker
cables.
® Be sure to connect speaker cables before connecting the
AC power supply cord.
® The load impedance of any speaker used with this unit
must be 49.
Connection of speaker cables:
1. Strip off the outer covering, and twist the center
conductor.
Make sure the bare ends of the wires are not unraveled.
(If they are, twist
them tight again.) —rg X > em oO
2. Insert the wire to the
rear panel of the unit,
and close the lever.
(ALD
Red (+) Gg
Black (-)
Ss
© To prevent damage to circuitry, never short-circuit positive
(+) and negative (~) speaker wires.
® Be sure to connect only positive (+) wires to positive (+)
terminals and negative (—-) wires to negative (—) terminals.
Caution
Use this speaker only with the recommended system.
Failure to do so may lead to damage to the amplifier and/
or the speaker, and may result in the risk of fire.
Consult a qualified service person if damage has occurred
or if you experience a sudden change In performance.
Connect the AC power supply cord after you
have connected ail other cables and cords.
