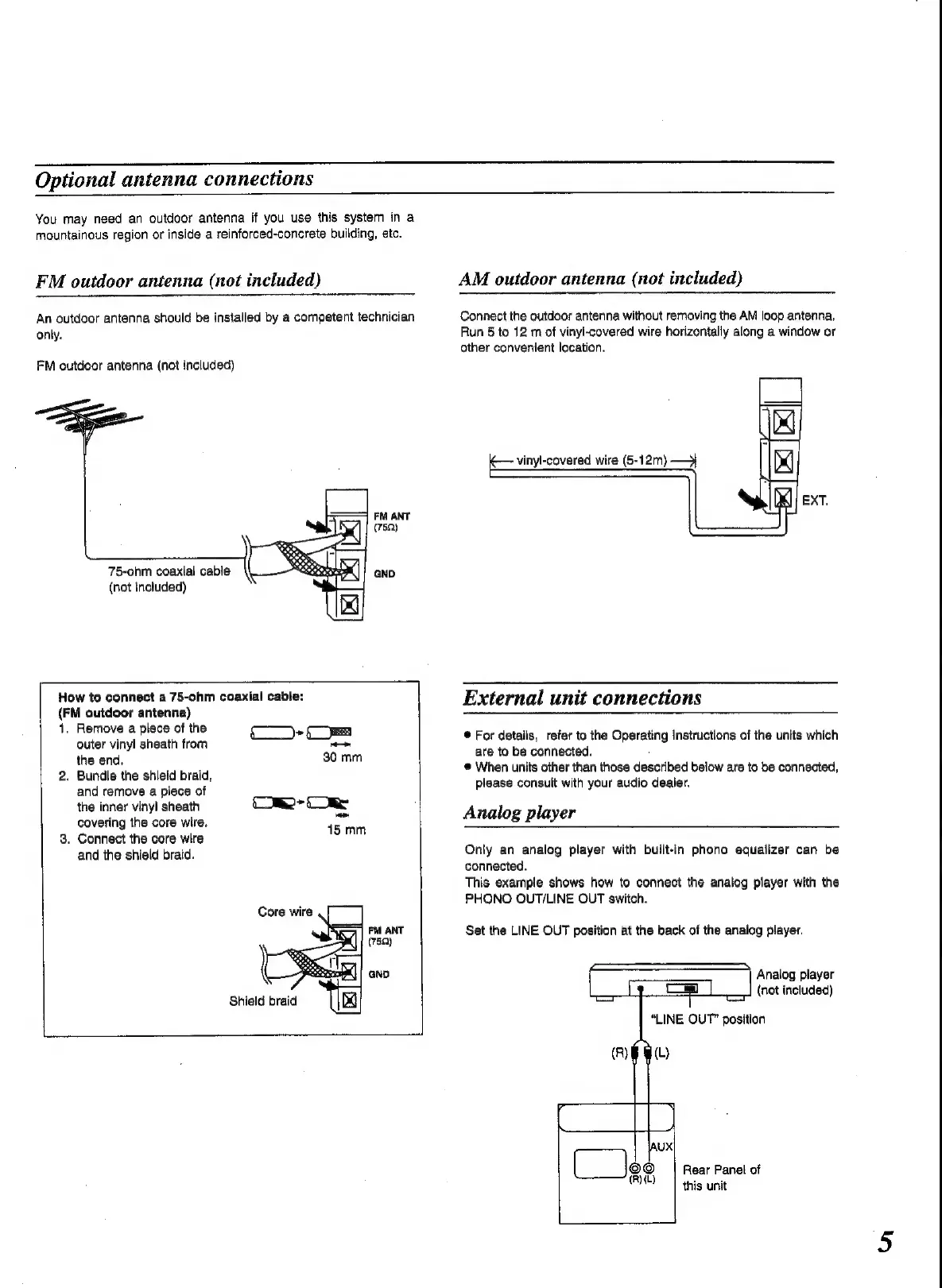

Optional antenna connections
You may need an outdoor antenna if you use this system in a
mountainous region or inside a reinforced-concrete building, etc.
FM outdoor antenna (not included)
AM outdoor antenna (not included)
An outdoor antenna should be installed by a competent technician
only.
FM outdoor antenna (not included)
75-ohm coaxial cable
(not included)
How to connect a 75-ohm coaxial cable:
(FM outdoor antenna)
1, Remove a piece of the
: > =
outer vinyl sheath from i
the end. 30 mm
2. Bundle the shield braid,
and remove a piece of
the inner vinyl sheath Cm2> me
covering the core wire. 1 Ba fant
3. Connect the core wire
and the shield braid.
Core wire
Shield braid
Conneci the outdoor antenna without removing the AM loop antenna.
Run 5 to 12 m of vinyl-covered wire horizontally along a window or
other convenient location.
K_ vinyl-covered wire (5-12m) —}
External unit connections
© For details, reter to the Operating Instructions of the units which
are to be connected.
® When units other than those described below are to be connected,
please consult with your audio dealer.
Analog player
Only an analog player with built-in phono equalizer can be
connected.
This example shows how to connect the analog player with the
PHONO OUT/LINE OUT switch.
Set the LINE OUT position at the back of the analog player.
Analog player
(not included)
Rear Panel of
this unit
