Panasonic SC-UA3E - Page 18

18

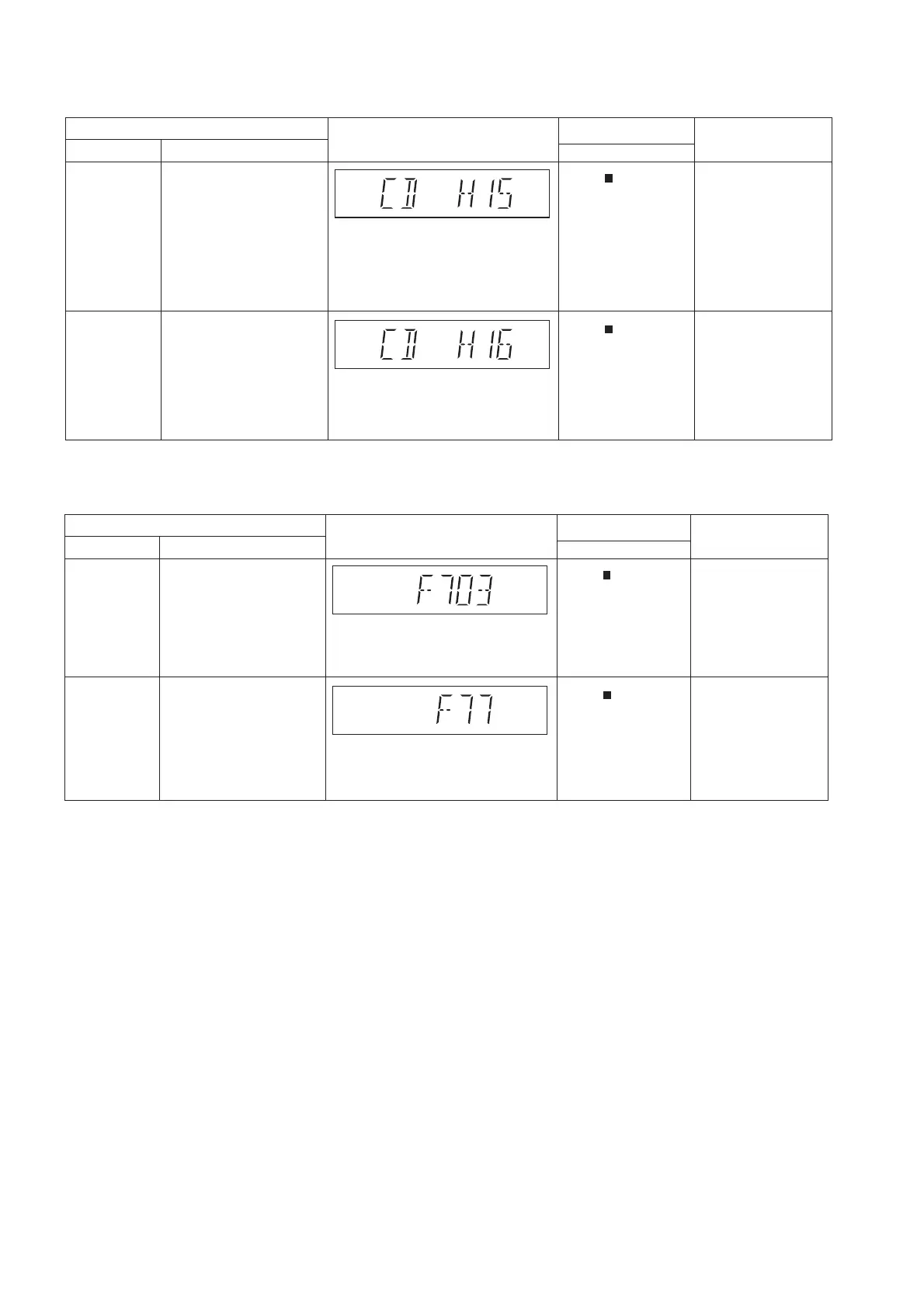

6.5.2. CD Mechanism Error Code Table
6.5.3. Bluetooth Error Code Table
Solution
(PCB exchange repair)
FL Display
Key Operation
Front Key
Item
DescriptionMode Name
Error Code
CD H15
Diagnosis Contents:
CD Open Abnormal
.
During operation
POS_SW_R On fail to be
detected within 4 sec.
Error No. shall be clear
by force or during cold start.
Error Code
CD H16
Diagnosis Contents:
CD Closing Abnormal
.
During operation
POS_SW_CEN
On fail to be
detected within
Error No. shall be clear by
force
Press [ ] on main unit
for next error.
Press [ ] on main unit
for next error.
4 sec.
Check following:
1. CD Interface P.C.B.
(Pin 3, 4, 6)
2. SOC IC (IC2001)
Check following:
1. CD Interface P.C.B.
(Pin 6, 3, 4)
2. SOC IC (IC2001)
Solution
(PCB exchange repair)
FL Display
Key Operation
Front Key
Item
DescriptionMode Name
Error Code
F703
Diagnosis Contents:
Bluetooth Communication.
Communication between
Bluetooth module and
micro-p abnormal.
Error Code F77 Diagnosis Contents:
Bluetooth Address Error
If there is no valid Bluetooth
address stored in the
EEPROM IC.
Press [ ] on main unit
for next error.
Press [ ] on main unit
for next error.
Check following:
1. Bluetooth P.C.B.
2. SOC IC on Main
P.C.B.
Check following:
1. EEPROM IC
(IC2002) on Main
P.C.B.
