Panasonic SC-UA3E - Mechanical and Electrical Parts Lists

65

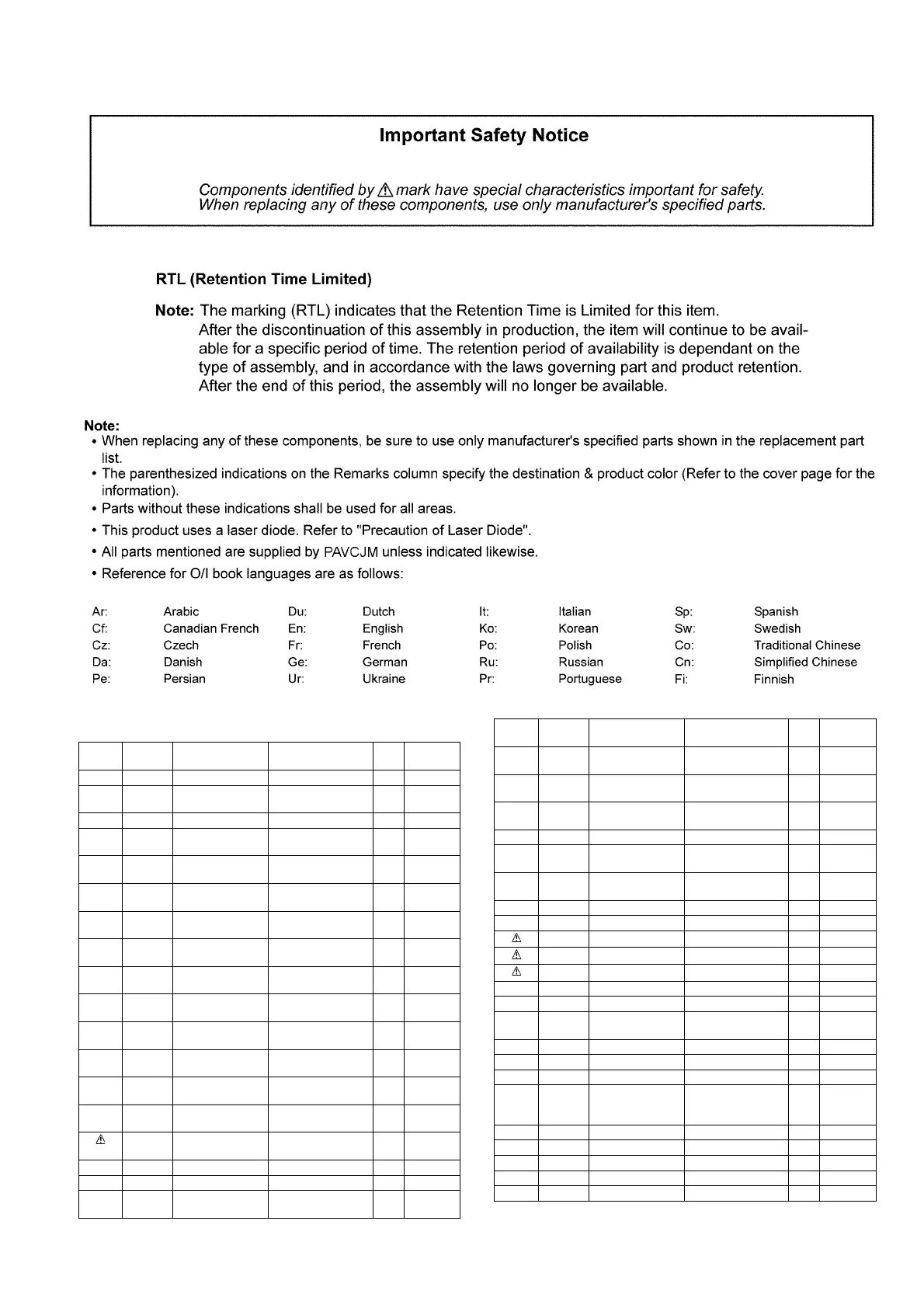

15.4. Mechanical Replacement Part List
Safety Ref.
No.
Part No. Part Name &
Description
Qty Remarks
CABINET AND
CHASSIS
1 REE1730 10P FFC (MAIN-
MECHA)
1
2 REX1808 9P FLAT WIRE
(MAIN-SMPS)
1
3 TNMX071-1 4P WIRE (MAIN-
SPEAKER)
1 UA3E-K,
UA3GN-K
3 TNMX038-1 4P WIRE (MAIN-
SPEAKER)
1 UA3PR-K,
UA3PU-K
4 TNMX039 4P WIRE (MAIN-
USB)
1
5 TNMX040 2P WIRE (MAIN-
LED)
1
6 TNMX061 5P SHIELDED
WIRE (MAIN-MIC)
1UA3E-K
6 TNMX041 5P WIRE (MAIN-
MIC)
1 UA3PR-K,
UA3PU-K
7 TZH3QKZ011 17P FFC (MAIN-
PANEL)
1
8 RFKHSCUA3PRK REAR CABINET
ASS'Y
1 UA3E-K,
UA3PR-K
8 RFKHSCUA3GNK REAR CABINET
ASS'Y
1 UA3GN-K
8 RFKHSCUA3PUK REAR CABINET
ASS'Y
1 UA3PU-K
8-1 RMF0689B EPT SEALER 1
8-2 TMKK688 EPT SEALER 2
9 RFKGSCUA3PUK FRONT PANEL
ASS'Y
1
10 RFKNSCUA3PUK BUTTON LIGHT
PIECE ASS'Y
1
11 RFKNCUA3PUHK HANDLE BACK
ASS'Y
1
12 RFKJSCUA3PUK BOTTOM FRAME
ASS'Y
1
12-1 TMKZ992 EVA 2
13 RFKNCUA3PULK TWEETER SPACER
(L) ASS'Y
1
14 RFKNCUA3PURK TWEETER SPACER
(R) ASS'Y
1
15 RMG0968-G REAR DAMPER 4
16 RMN1049-1 FL HOLDER 1
17 TBMK4906 NAMEPLATE 1 UA3E-K
17 TBMK4904 NAMEPLATE 1 UA3GN-K
17 TBMK4902 NAMEPLATE 1 UA3PR-K
18 TBXA61801 BUTTON 1
19 TEKL013 MECHA FRAME 1
20 TKKC54711 HANDLE LIGHT
BAR
1
21 TKKQ50021 HANDLE FRONT 1
22 TEKL016 CENTER SUPPORT 1
23 RMF0731 EVA 1
24 TMKZ959 EVA 2 UA3E-K,
UA3PR-K,
UA3PU-K
25 TMKS037 EPT 8
26 TMKZ962 HIMELON 1
27 RHD26043-1 SCREW 2
28 RHD26046 SCREW 13
29 RHD26056 SCREW 10
