Panasonic SC-UA3E - Electrical Replacement Parts List

67

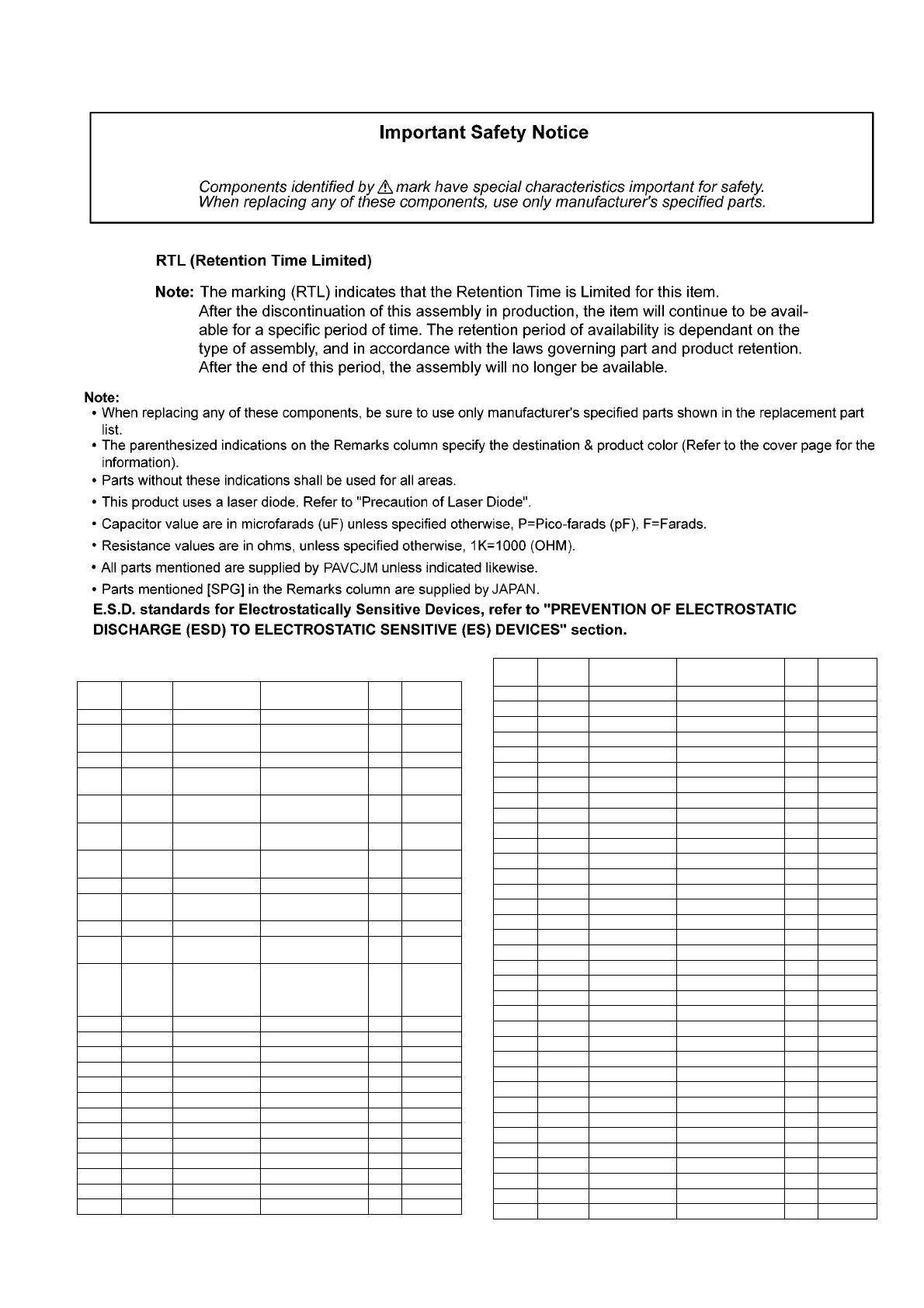

15.5. Electrical Replacement Parts List
Safety Ref.
No.
Part No. Part Name &
Description
Qty Remarks
PRINTED CIRCUIT
BOARDS
PCB1 TNPA6463AC MAIN P.C.B 1 (RTL)
UA3E-K
PCB1 TNPA6463AD MAIN P.C.B 1 (RTL)
UA3GN-K
PCB1 TNPA6463AB MAIN P.C.B 1 (RTL)
UA3PR-K
PCB1 TNPA6463 MAIN P.C.B 1 (RTL)
UA3PU-K
INTEGRATED CIR-
CUITS
IC52 VUEALLPT094 IC 1 (E.S.D)
UA3E-K
IC52 VUEALLPT091 IC 1 (E.S.D)
UA3GN-K,
UA3PR-K,
UA3PU-K
IC1000 C0DBGYY03909 IC 1 (E.S.D)
IC1002 C0DBAYY01594 IC 1 (E.S.D)
IC1004 C0DBGYY06507 IC 1 (E.S.D)
IC1005 C0DBGYY03909 IC 1 (E.S.D)
IC1102 C0DBAYY02695 IC 1 (E.S.D)
IC2001 C1AB00004409 IC 1 (E.S.D)
IC2002 C0EBY0000664 IC 1 (E.S.D)
IC2003 RFKWFSCUA3PU IC 1 (E.S.D)
IC2004 RFKWESCUA3PU IC 1 (E.S.D)
IC4201 VUEALLPT095 IC 1 (E.S.D)
IC4401 C0JBAR000644 IC 1 (E.S.D)
IC5001 C0GBY0000213 IC 1 (E.S.D)
IC6000 C1AB00004014 IC 1 (E.S.D)
IC6500 VUEALLPT090 IC 1 (E.S.D)
IC7000 RSNE031B0 IC/BT MODULE 1 (E.S.D)
IC7001 C0DBGYY00969 IC 1 (E.S.D)
IC9001 C0DBZYY00716 IC 1 (E.S.D)
CAPACITORS
C51 F1G1H102A830 1000pF 50V 1
C61 F1H1H104B047 0.1uF 50V 1
C62 F1H1H104B047 0.1uF 50V 1
C66 F1H1H330B052 33pF 50V 1
C67 F1H1H3R0B050 3pF 50V 1
C1000 F1J1A106A043 10uF 10V 1
C1001 F1J1C1060006 10uF 16V 1
C1002 F1J1E106A253 10uF 25V 1
C1003 F1H1H561B052 560pF 50V 1
C1004 F1H1H104B047 0.1uF 50V 1
C1005 F1H1H104B047 0.1uF 50V 1
C1018 F1H1H103B047 0.01uF 50V 1
C1020 F1K1H475A250 4.7uF 50V 1
C1022 F1H1H104B047 0.1uF 50V 1
C1023 F1H1H104B047 0.1uF 50V 1
C1024 F1H1A1050039 1uF 10V 1
C1025 F1H1A1050039 1uF 10V 1
C1026 F1H1H103B047 0.01uF 50V 1
C1029 F1H1H102B047 1000pF 50V 1
C1031 F1H1H104B047 0.1uF 50V 1
C1032 F1J1C1060006 10uF 16V 1
C1033 F1H1H103B047 0.01uF 50V 1
C1039 F1J1C1060006 10uF 16V 1
C1040 F1H1A1050039 1uF 10V 1
C1042 F1H1E105A153 1uF 25V 1
C1044 F1J1C1060006 10uF 16V 1
C1045 F1J1A106A043 10uF 10V 1
C1047 F1H1H104B047 0.1uF 50V 1
Safety Ref.
No.
Part No. Part Name &
Description
Qty Remarks
