Panasonic SC-UA3E - Disassembly of Front Speakers (SP3 and SP4); Disassembly of Front Speakers (SP1 and SP2); Disassembly of LED P.C.B

26

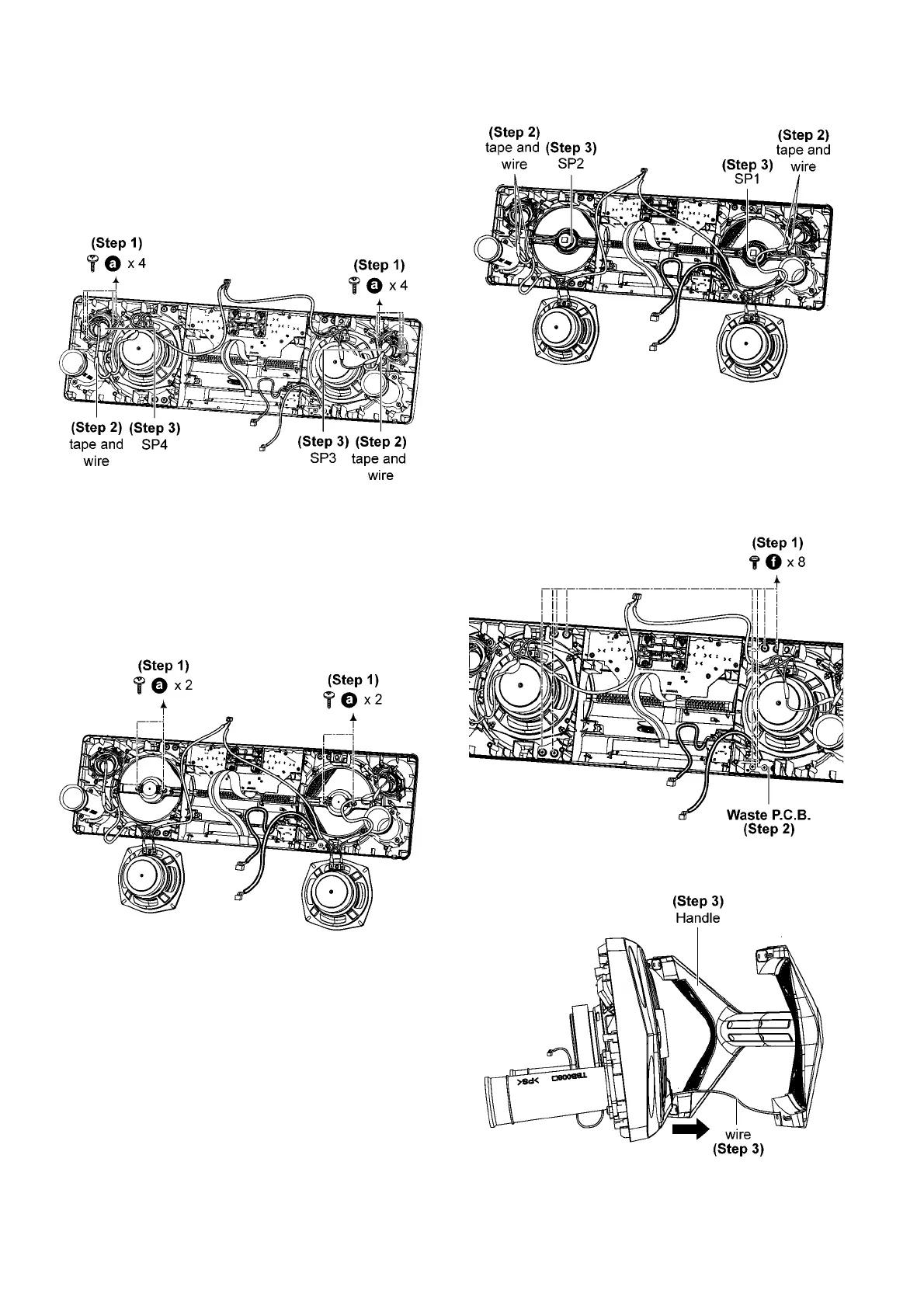

8.8. Disassembly of Front Speakers
(SP3 and SP4)
• Refer to “Disassembly of Front Panel Unit”.
Step 1 Remove 8 screws.
Step 2 Remove tape and wire.
Step 3 Remove SP3 and SP4.
8.9. Disassembly of Front Speakers
(SP1 and SP2)
• Refer to “Disassembly of Front Panel Unit”.
• Refer to “Disassembly of Front Speaker (SP5 and SP6)”.
Step 1 Remove 4 screws.
Step 2 Remove tape and wire.
Step 3 Remove SP1 and SP2.
8.10. Disassembly of LED P.C.B.
• Refer to “Disassembly of Front Panel Unit”.
Step 1 Remove 8 screws.
Step 2 Detach Waste P.C.B..
Step 3 Remove Handle and wire.
