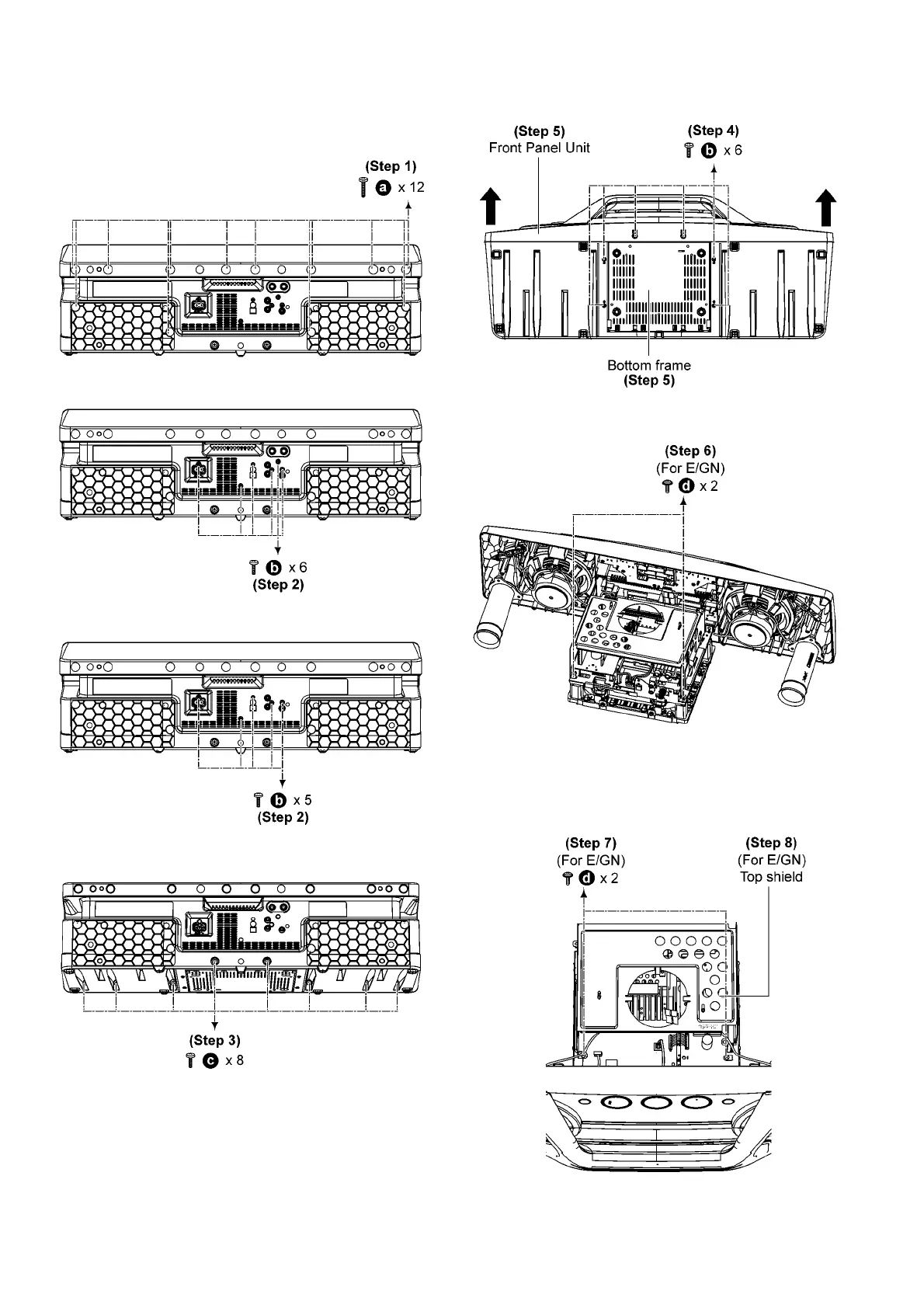

8.4. Disassembly of Front Panel
Unit
Step 1 Remove 12 screws.
Step 2 Remove 6 screws. (For E/PR/PU)
Step 2 Remove 5 screws. (For GN)
Step 3 Remove 8 screws.
Step 4 Remove 6 screws.
Step 5 Remove Front Panel Unit and Bottom frame.
Step 6 Remove 2 screws. (For E/GN)
Step 7 Remove 2 screws. (For E/GN)
Step 8 Remove Top shield. (For E/GN)
