Panasonic SC-UA3E - Disassembly of SMPS Module

28

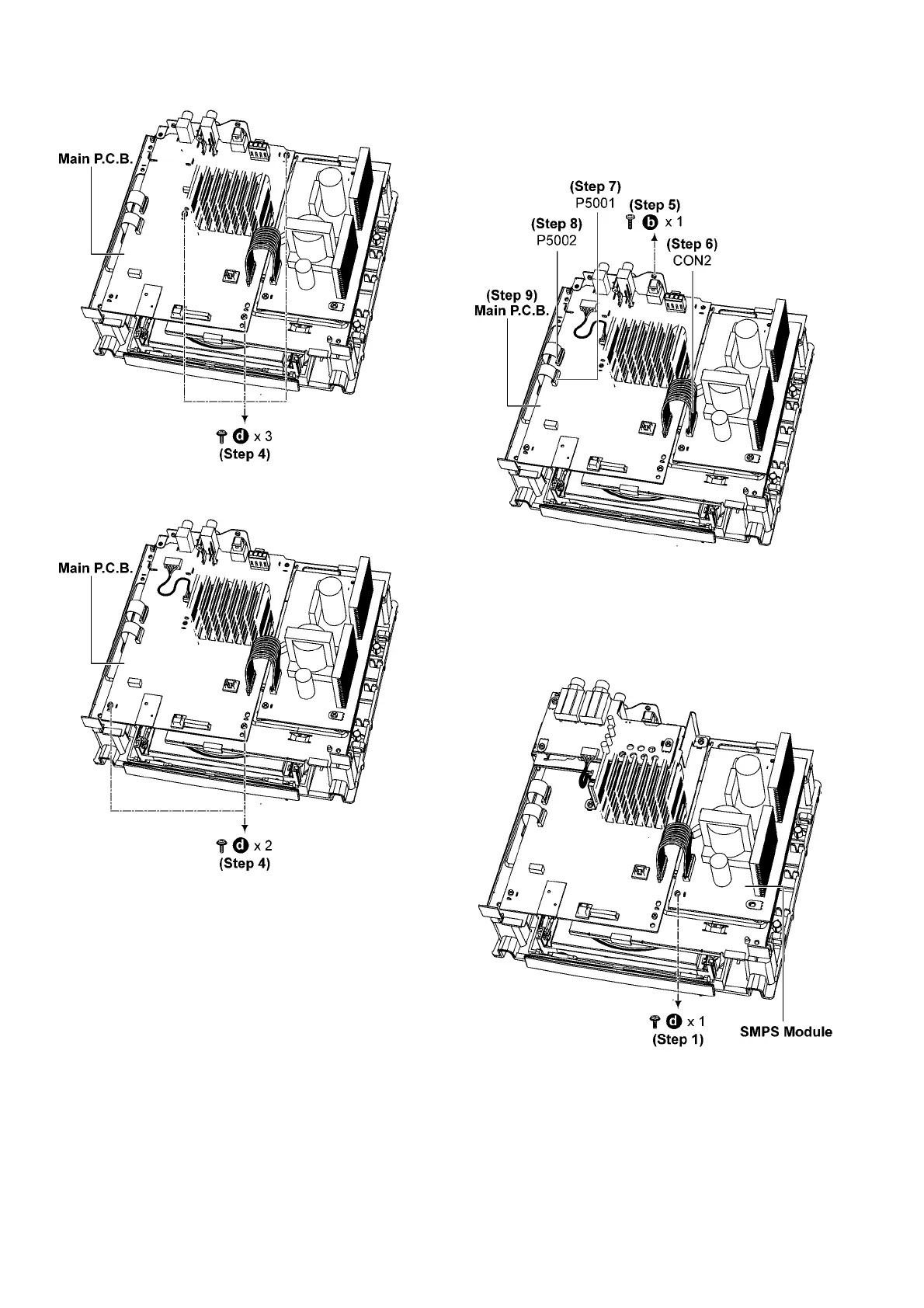

Step 4 Remove 3 screws. (For GN)
Step 4 Remove 2 screws. (For PR/PU)
Step 5 Remove 1 screw.
Step 6 Detach 9P Wire at connector (CON2) on SMPS Module.
Step 7 Detach 10P FFC at connector (P5001) on Main P.C.B..
Step 8 Detach 24P FFC at connector (P5002) on Main P.C.B..
Step 9 Remove Main P.C.B..
8.13. Disassembly of SMPS Module
• Refer to “Disassembly of Front Panel Unit”.
Step 1 Remove 1 screw. (For E)
