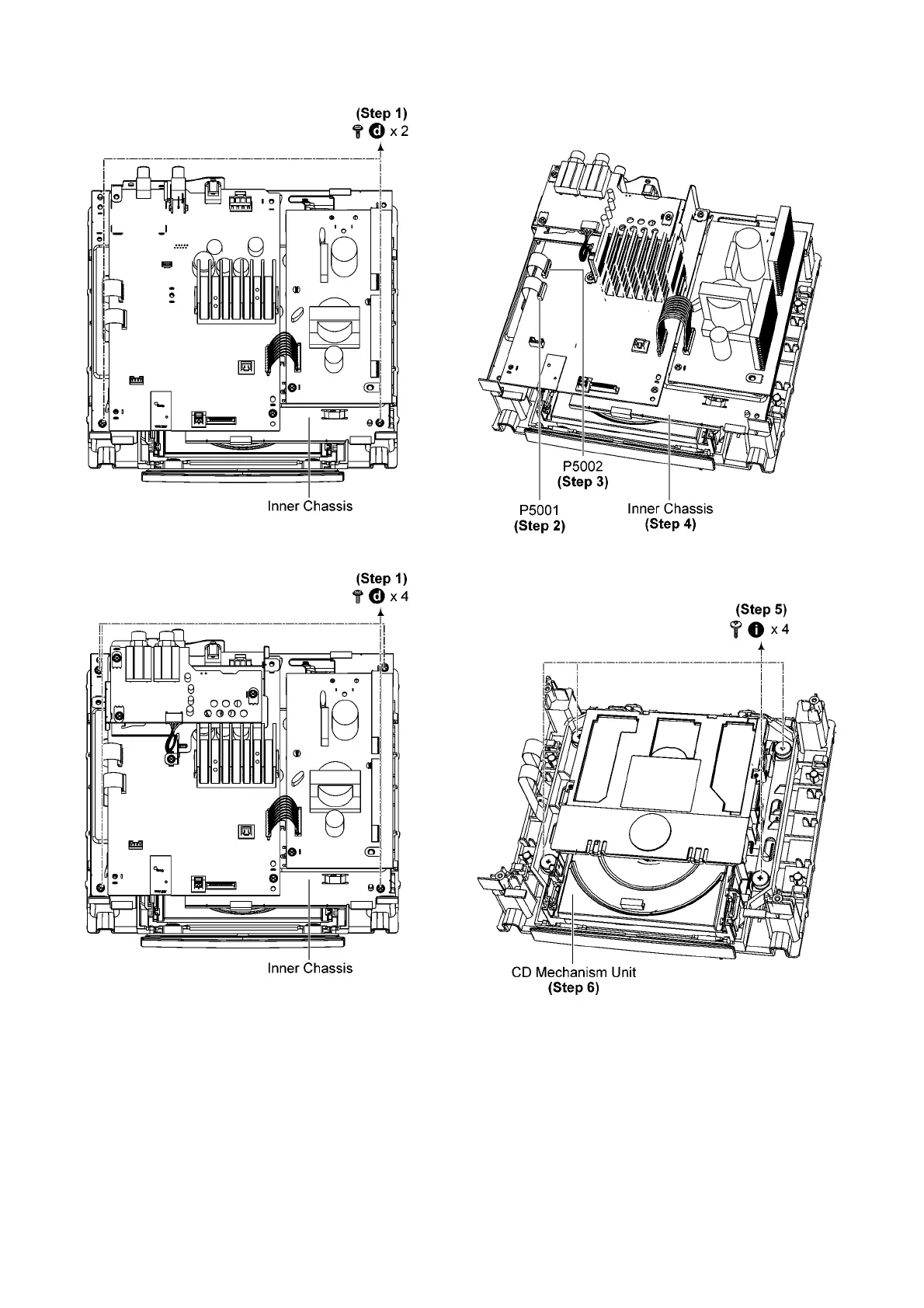

Step 1 Remove 2 screws. (For GN)
Step 1 Remove 4 screws. (For PR/PU)
Step 2 Detach 10P FFC at connector (P5001) on Main P.C.B..
Step 3 Detach 24P FFC at connector (P5002) on Main P.C.B..
Step 4 Remove Inner chassis.
Step 5 Remove 4 screws.
Step 6 Remove CD Mechanism Unit.
