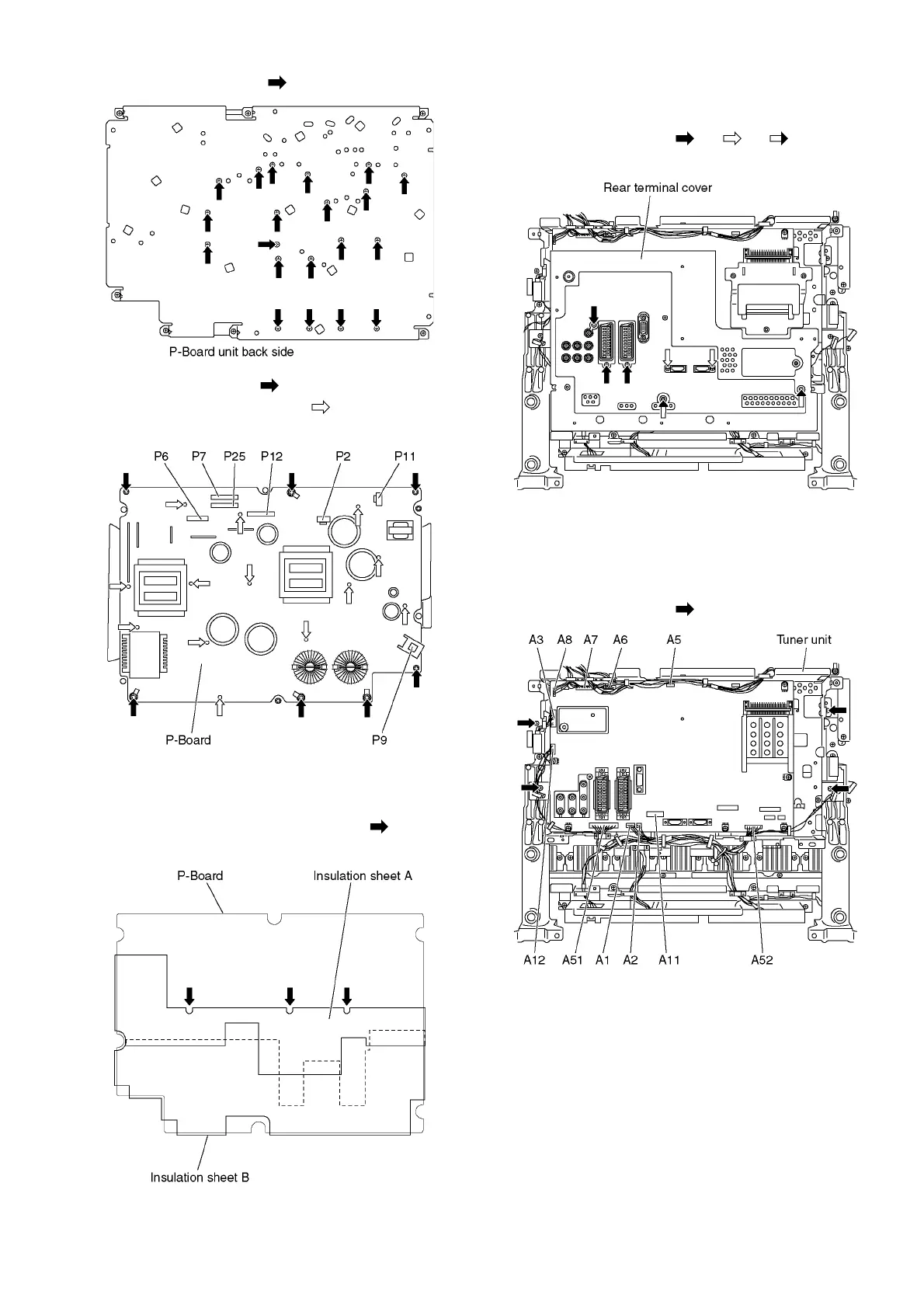

4. Remove the screws (×20 ) on the back side.
5. Remove the screws (×7 ).
6. Remove the molding props (×13 ).
7. Remove the P-Board.
Note:
When assembling the P-Board, the position of each hole of
the insulation sheets (A and B) is set to the position of each
hole of the P-Board, then assemble them. ( marks indi-
cate setting positions.)
7.5. Remove the Rear Terminal
cover
1. Remove the screws (×3 , ×2 , ×2 ).
2. Remove the Rear Terminal cover.
7.6. Remove the tuner unit
1. Unlock the cable clampers to free the cable.
2. Disconnect the connectors (A1, A2, A3, A5, A6, A7, A8,
A11, A12, A51 and A52).
3. Remove the screws (×4 ) and remove the tuner unit.
To Next Page
