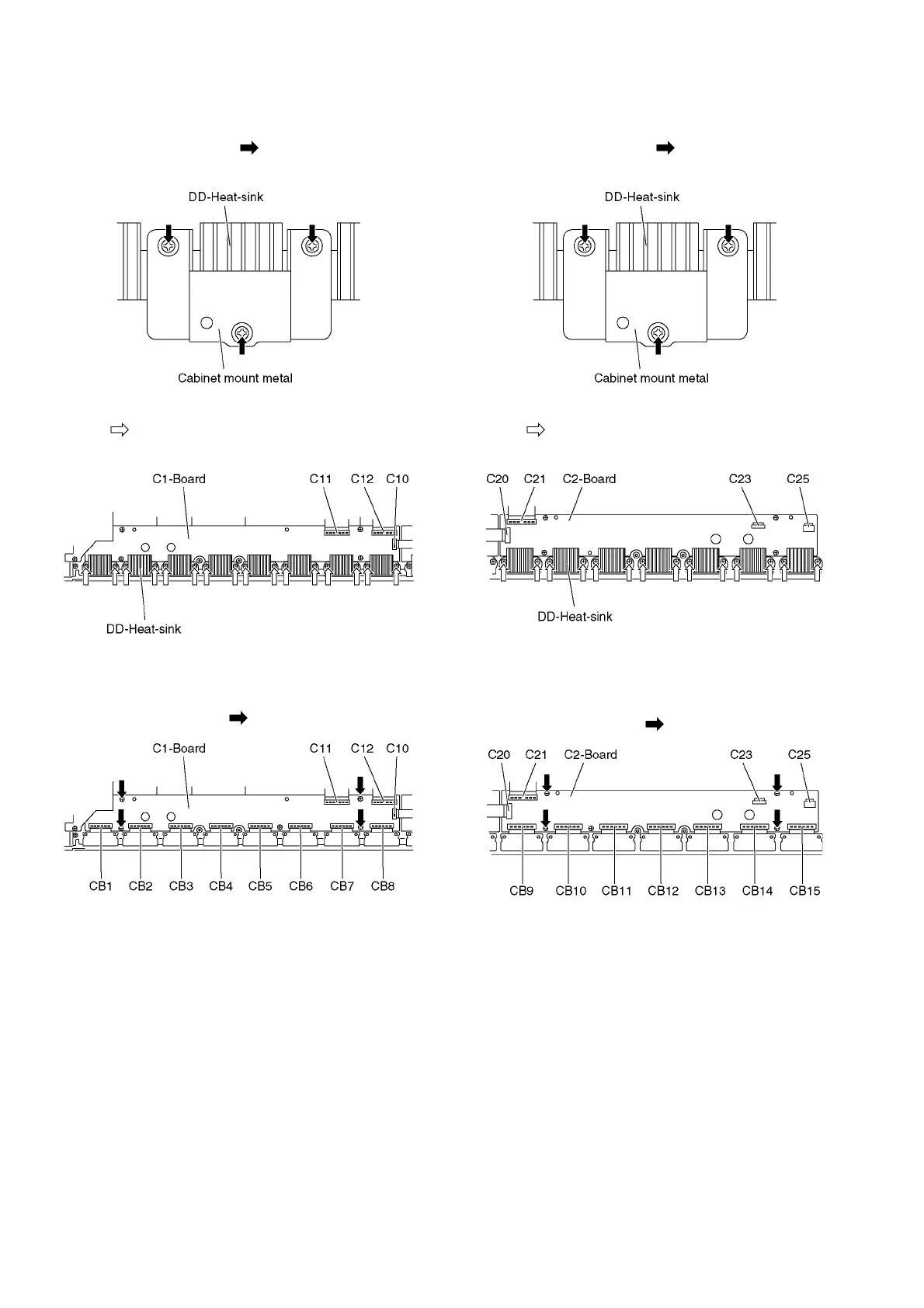

7.14. Remove the C1-Board
1. Remove the tuner unit. (See section 7.6.)
2. Remove the Stand bracket R. (See section 7.12.)
3. Remove the screws (×3 ) and Remove the Cabinet
mount metal.
4. Remove the DD-Heat-sink holder fastening screws
(×16 ).
5. Remove the DD-Heat-sink (×8).
6. Disconnect the flexible cables (CB1, CB2, CB3, CB4,
CB5, CB6, CB7 and CB8).
7. Disconnect the flexible cables (C10, C11 and C12).
8. Remove the screws (×4 ) and remove the C1-Board.
7.15. Remove the C2-Board
1. Remove the tuner unit. (See section 7.6.)
2. Remove the stand bracket L. (See section 7.12.)
3. Remove the screws (×3 ) and Remove the Cabinet
mount metal.
4. Remove the DD-Heat-sink holder fastening screws
(×14 ).
5. Remove the DD-Heat-sink (×7).
6. Disconnect the flexible cables (CB9, CB10, CB11, CB12,
CB13, CB14 and CB15).
7. Disconnect the flexible cables (C20 and C21).
8. Disconnect the connectors (C23 and C25).
9. Remove the screws (×4 ) and remove the C2-Board.
