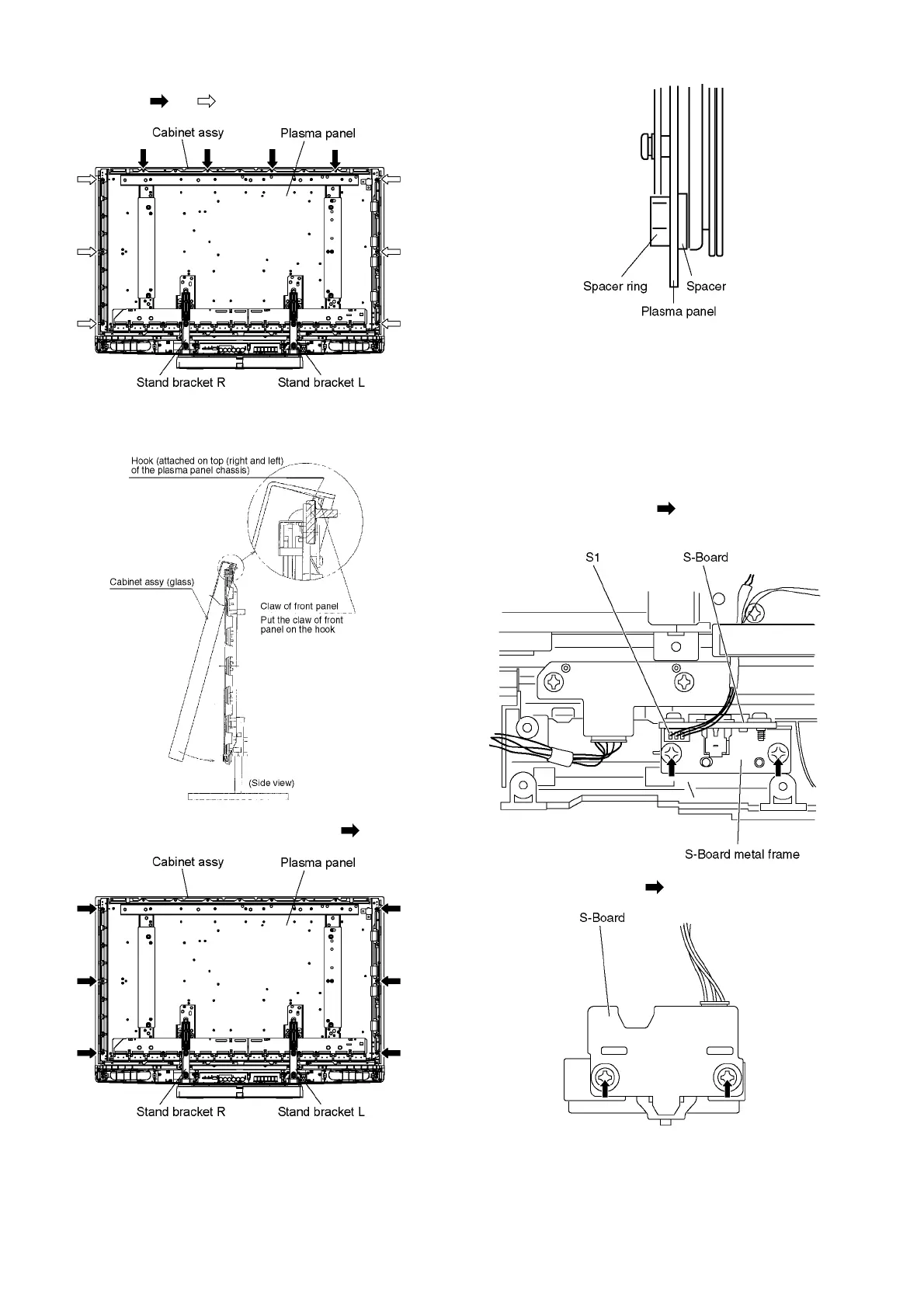

2. Remove the cabinet assy and the plasma panel fastening
screws (×4 , ×6 ).
3. For leaving the plasma panel from the front frame, pull the
bottom of the cabinet assy forward, lift, and remove.
4. Remove the spacers and spacer rings (×6 ).
Caution:
• Please confirm the installation place of Spacer and
Spacer Ring when you exchange the Plasma Panel, and
install Spacer and Spacer Ring in an original installation
place after exchanging the Plasma Panel.
7.20. Remove the S-Board
1. Remove the Cabinet assy. (See section 7.19.)
2. Disconnect the connector (S1).
3. Remove the screws (×2 ) and remove the S-Board
metal frame.
4. Remove the screws (×2 ) and remove the S-Board.
