Panasonic TH-42PY80P - Board Removal Procedures

20

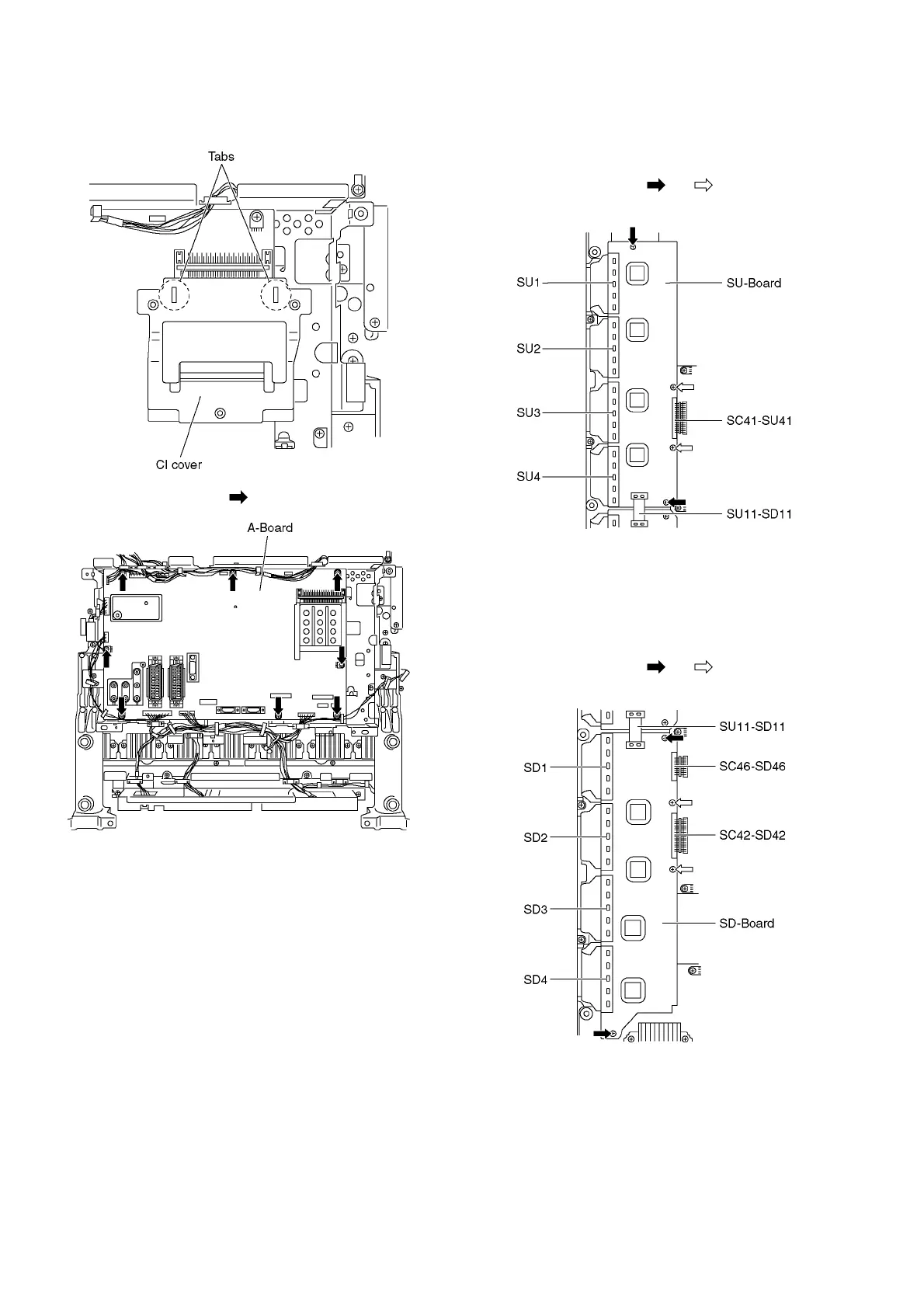

7.7. Remove the A-Board
1. Remove the tuner unit. (See section 7.6.)
2. Remove the tab and remove the CI cover.
3. Remove the screws (×8 ) and remove the A-Board.
7.8. Remove the SU-Board
1. Remove the flexible cables (SU1, SU2, SU3 and SU4)
connected to the SU-Board.
2. Remove the flexible cable (SU11-SD11) and the bridge
connector (SC41-SU41).
3. Remove the screws (×2 , ×2 ) and remove the SU-
Board.
7.9. Remove the SD-Board
1. Remove the flexible cables (SD1, SD2, SD3 and SD4)
connected to the SD-Board.
2. Remove the flexible cable (SU11-SD11) and the bridge
connectors (SC42-SD42 and SC46-SD46).
3. Remove the screws (×2 , ×2 ) and remove the SD-
Board.
