About the wire arrangement after replacing the LCD Panel
• Please refer to the “9. Wiring Connection Diagram”.
Precaution when connecting the LVDS Cable
• Please insert the LVDS Cable firmly to the back.
The shortage of plugs causes failure.

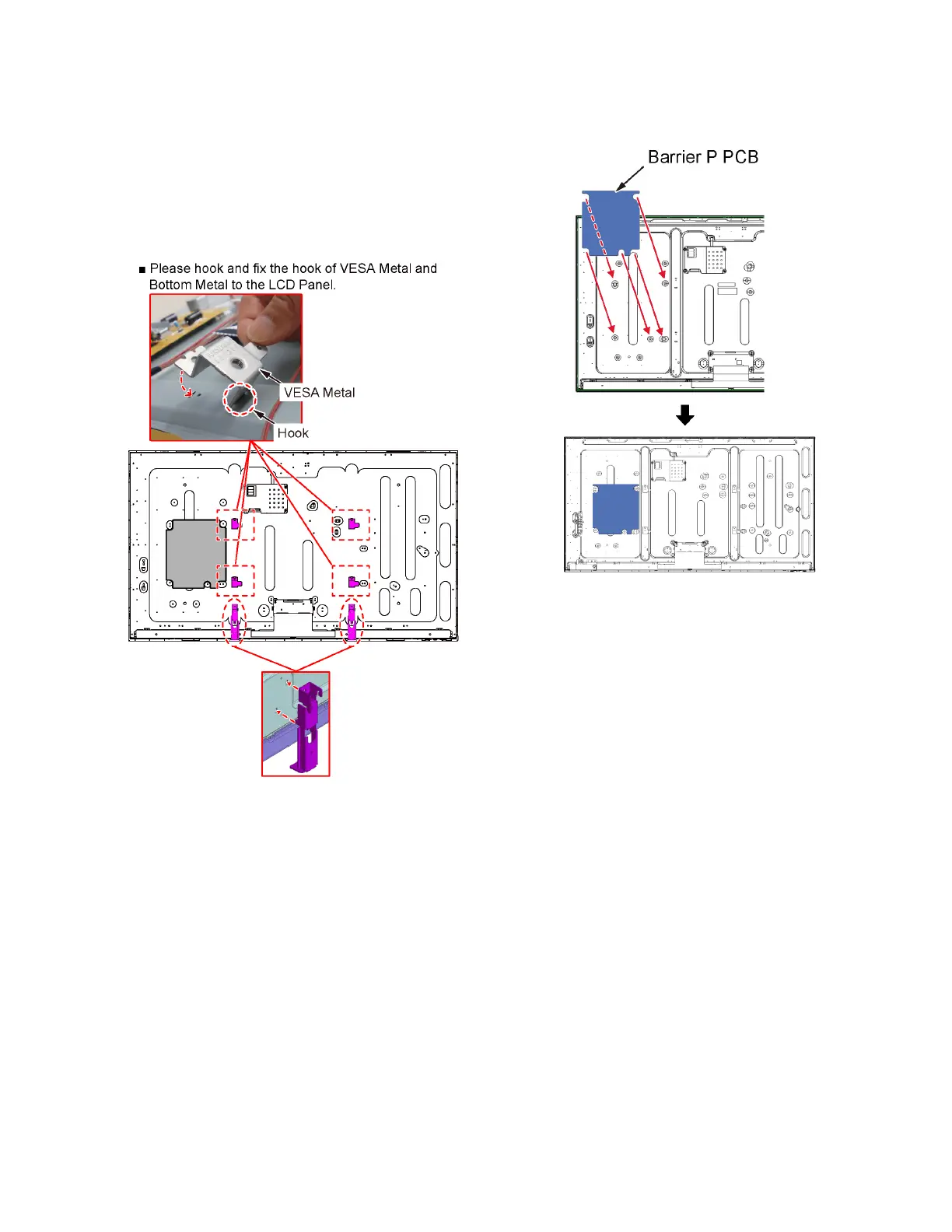

Precaution when attaching the VESA Metal and Bottom
Metal
• Please insert the hook of VESA Metal and Bottom Metal to
the LCD Panel certainly.
Caution about the sticking parts of LCD Panel Assy
• Please remove the Barrier P PCB from the old LCD Panel
and stick it on the new LCD Panel Assy for repair with dou-
ble sided tape.
