26
TH-50LFE7U/TH-50LFE7W/TH-50LFE7E

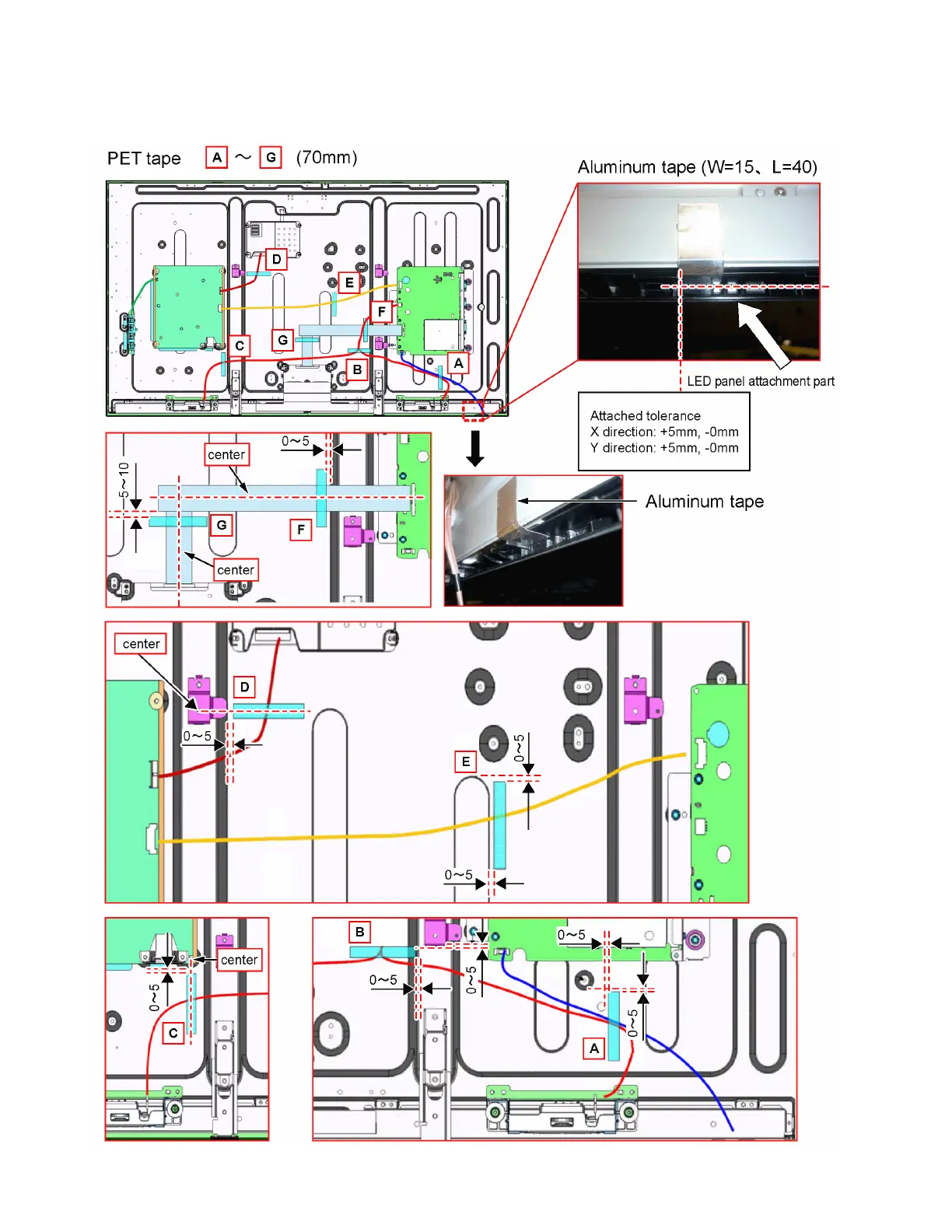

• Please stick the tapes according to the sticking position of the LCD Panel Assy for repair after connecting the LVDS Cable.
* Attachment specifications are subject to change without notice and parts may remain.
* Please stick on the same place as before.
(Please refer to the "Wiring Connection Diagram".)
