9. Remove 6 screws.
10. Remove the DS-Board.

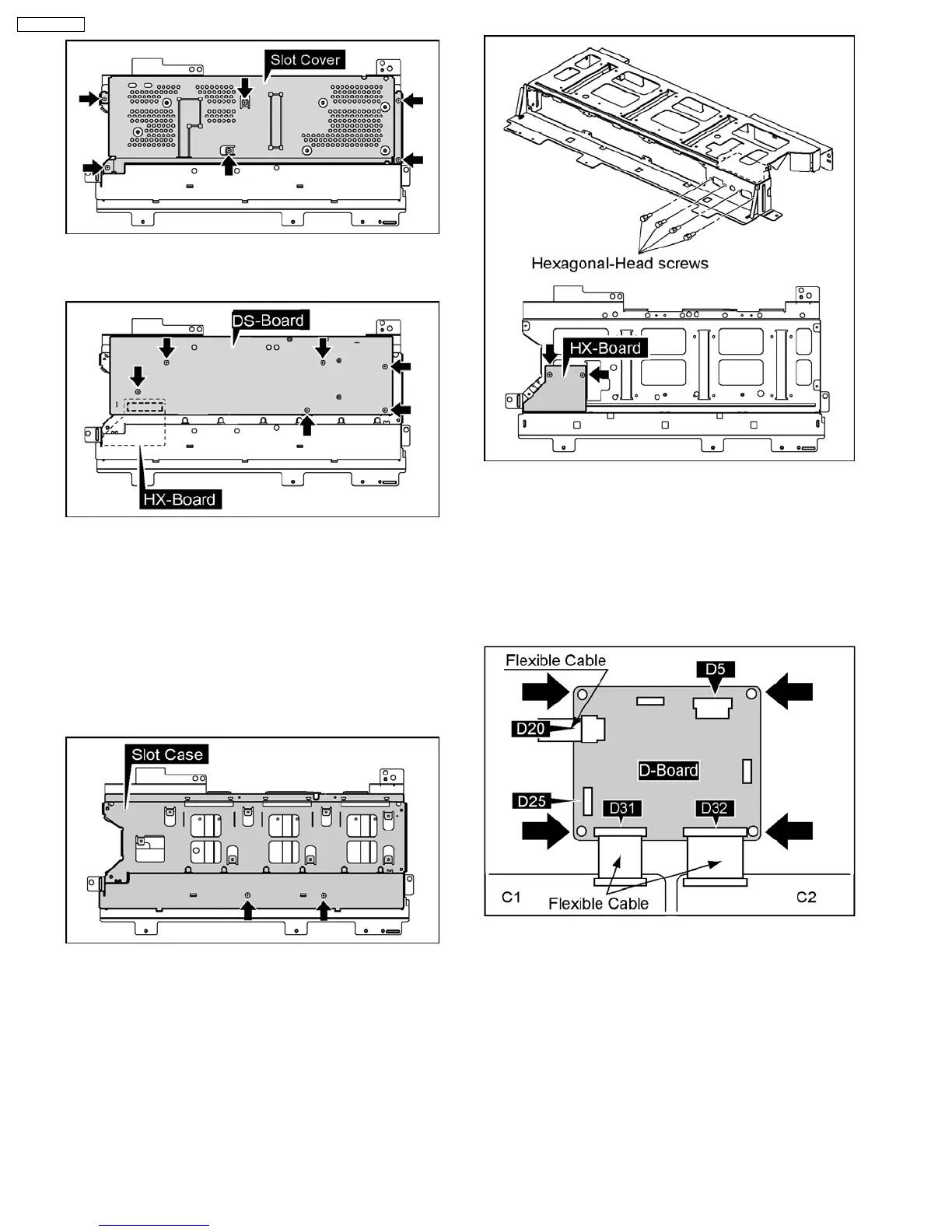

6.5. Removal of the HX-Board
1. Remove the HU Terminal Block and the HA Terminal Block.
(Reference to Removal of the HU-Board and the HA-Board)
2. Remove the Slot Block.
(Reference to Removal of the Slot Block)
3. Remove the DS-Board.
(Reference to Removal of the DS-Board)
4. Remove 2 screws and then remove the Slot Case.
5. Remove 4 Hexagonal-Head screws and 2 screws and then
remove the HX-Board.
6.6. Removal of the D-Board
1. Remove the Slot Block.
(Reference to Removal of the Slot Block)
2. Disconnect the connectors (D5, D25).
3. Remove the Flexible Cable from the connectors (D20, D31,
D32).
4. Remove 4 screws and then remove the D-Board.
