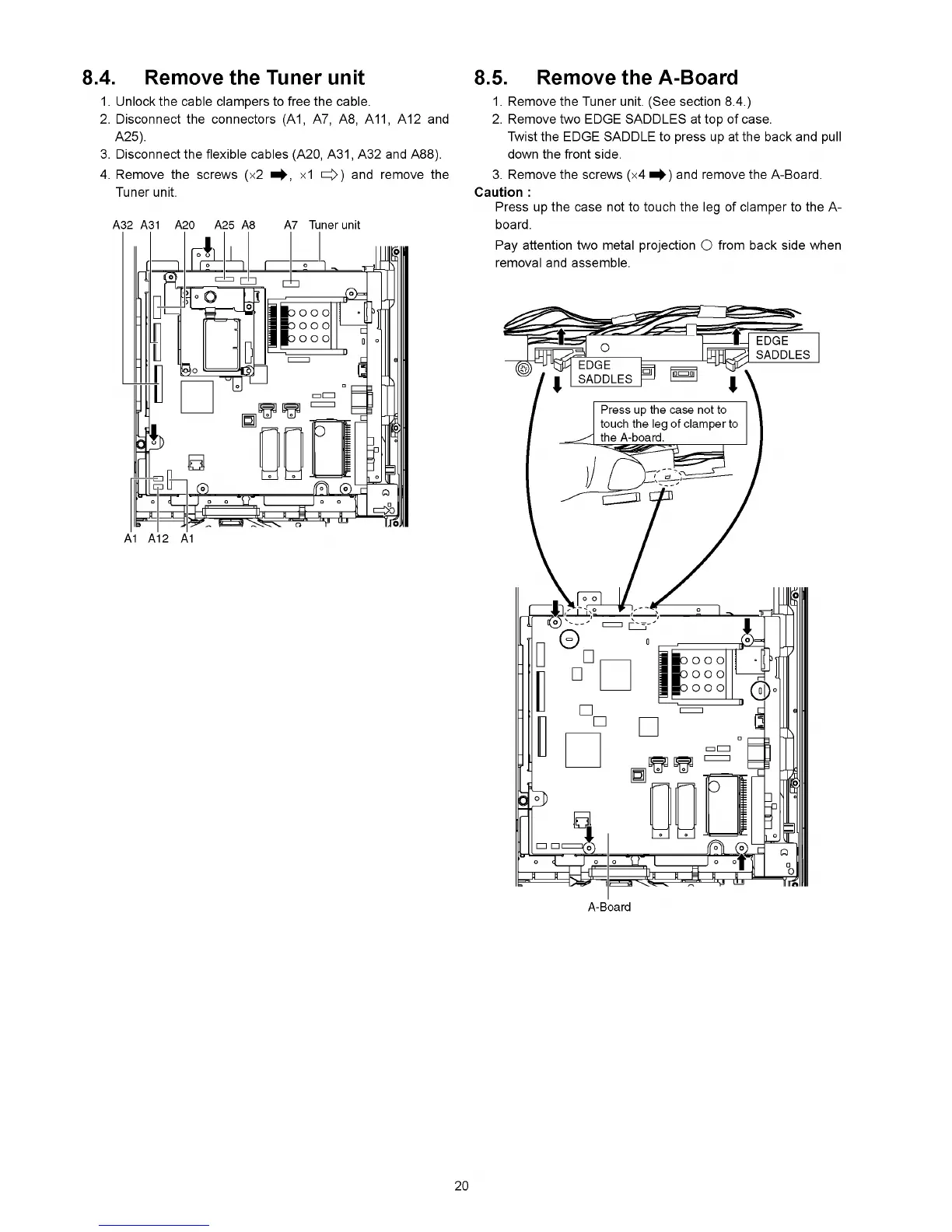

Panasonic TX-PR42U10 - Remove the A-Board; Remove the Tuner Unit

1. Unlock the cable clampers to free the cable.
2. Disconnect the connectors (A1, A7, A8, A11, A12 and
A25).
3. Disconnect the flexible cables (A20, A31, A32 and A88).
4. Remove the screws (x2 x1 O ) and remove the
Tuner unit.
8.4. Remove the Tuner unit
A32 A31 A20 A25 A8 A7 Tuner unit
А1 A12 A1
1. Remove the Tuner unit. (See section 8.4.)
2. Remove two EDGE SADDLES at top of case.
Twist the EDGE SADDLE to press up at the back and pull
down the front side.
3. Remove the screws (x4 and remove the A-Board.
Caution :
Press up the case not to touch the leg of clamper to the A
board.
Pay attention two metal projection О from back side when
removal and assemble.
8.5. Remove the A-Board
A-Board
