1. Remove the Tuner unit. (See section 8.4.)
2. Unlock the cable clampers to free the cable.
3. Disconnect the connectors (SS11 and SS33).
4. Disconnect the flexible cables (SS61 and SS64).
5. Disconnect the bridge connector (SS21-SS24).
6. Remove the screws (x6 and remove the SS-Board.

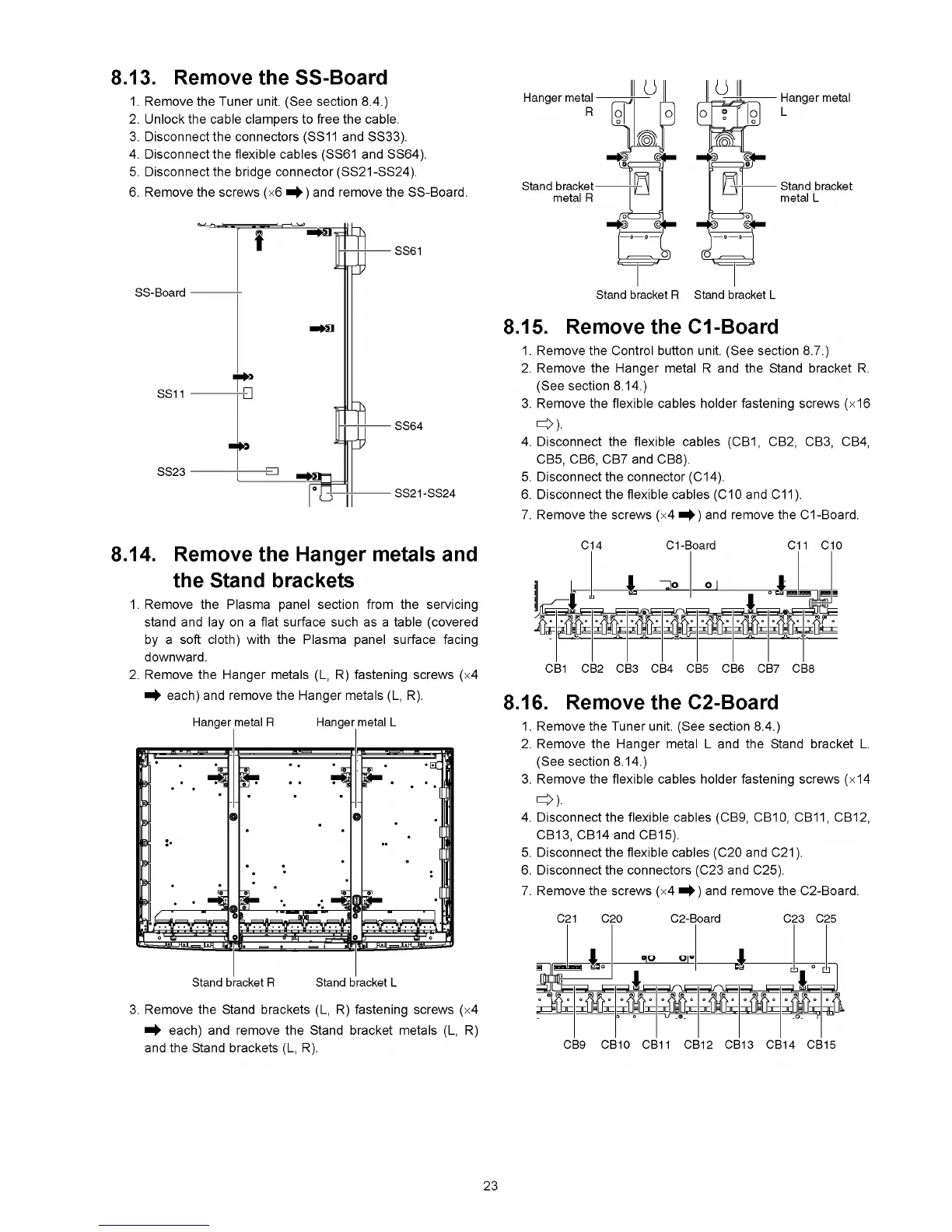

8.13. Remove the SS-Board
8.14.
Remove the Hanger metals and
the Stand brackets
1. Remove the Plasma panel section from the servicing
stand and lay on a flat surface such as a table (covered
by a soft cloth) with the Plasma panel surface facing
downward.
2. Remove the Hanger metals (L, R) fastening screws (x4
^ each) and remove the Hanger metals (L, R).
3. Remove the Stand brackets (L, R) fastening screws (x4
^ each) and remove the Stand bracket metals (L, R)
and the Stand brackets (L, R).
Stand bracket R Stand bracket L
8.15. Remove the C1-Board
1. Remove the Control button unit. (See section 8.7.)
2. Remove the Hanger metal R and the Stand bracket R.
(See section 8.14.)
3. Remove the flexible cables holder fastening screws (x16
<=»■
4. Disconnect the flexible cables (CB1, CB2, CB3, CB4,
CB5, CB6, CB7 and CB8).
5. Disconnect the connector (C14).
6. Disconnect the flexible cables (C10 and C11).
7. Remove the screws (x4 ^ ) and remove the C1 -Board.
CB1 CB2 СВЗ CB4 CB5 CB6 CB7 CB8
8.16. Remove the C2-Board
1. Remove the Tuner unit. (See section 8.4.)
2. Remove the Hanger metal L and the Stand bracket L.
(See section 8.14.)
3. Remove the flexible cables holder fastening screws (x14
<=»■
4. Disconnect the flexible cables (CB9, CB10, CB11, CB12,
CB13, CB14 and CB15).
5. Disconnect the flexible cables (C20 and C21).
6. Disconnect the connectors (C23 and C25).
7. Remove the screws (x4 ^ ) and remove the C2-Board.
C21 C20 C2-Board C23 C25
I
ЦО О Г
1
a j f f l -
ЕЩ S 3 О
- n l r -
— J / \ i —
с
— J / M —
3
с
*
ryl >r
*
'tj СГ»
CB9 CB10 CB11 CB12 CB13 CB14 CB15
23
