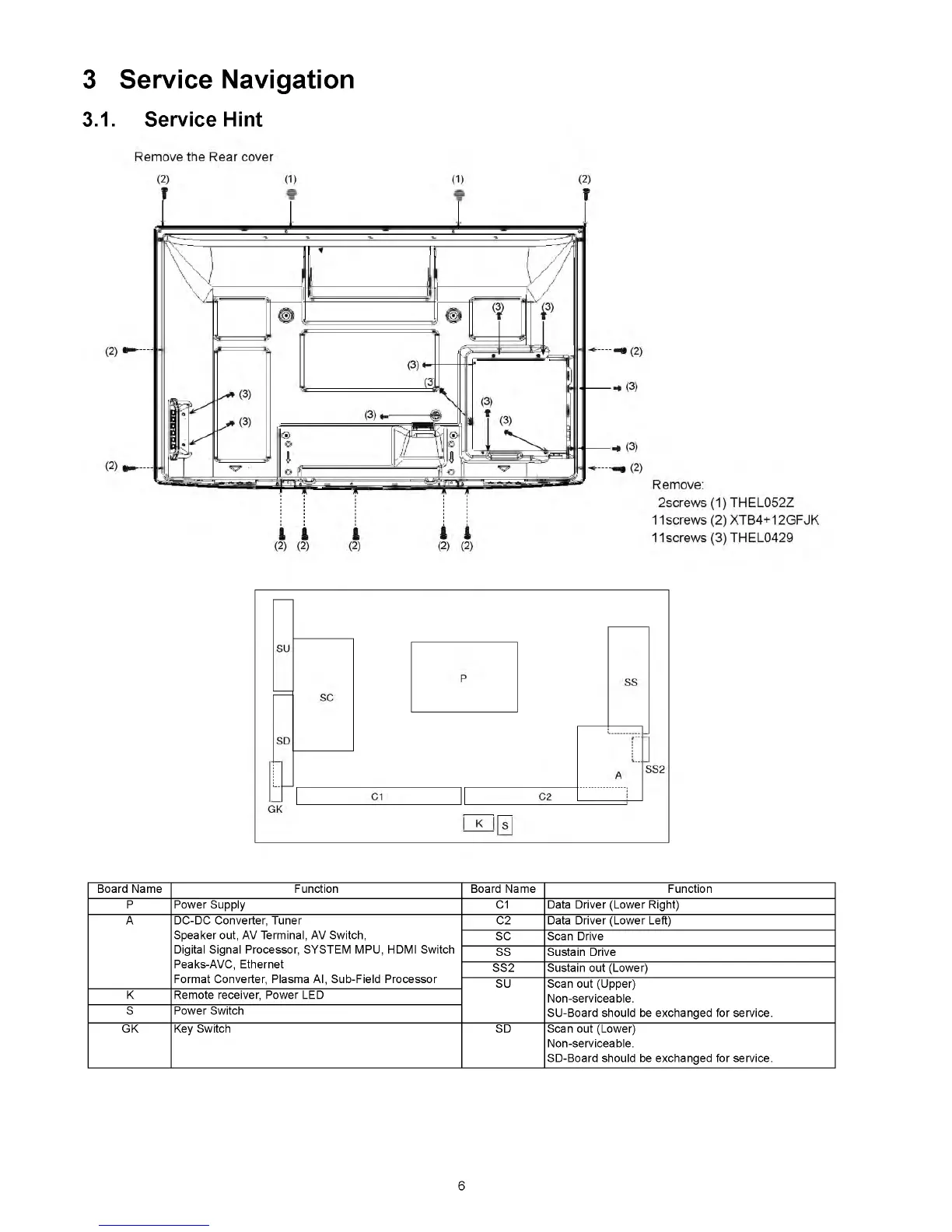

Panasonic TX-PR42U10 - Service Hint; Service Navigation

3 Service Navigation
3.1. Service Hint
Board Name Function
P Power Supply
A DC-DC Converter, Tuner
Speaker out, AV Terminal, AV Switch,
Digital Signal Processor, SYSTEM MPU, HDMI Switch
Peaks-AVC, Ethernet
Format Converter, Plasma AI, Sub-Field Processor
K Remote receiver, Power LED
S Power Switch
GK Key Switch
Board Name Function
C1 Data Driver (Lower Right)
C2 Data Driver (Lower Left)
SC Scan Drive
SS Sustain Drive
SS2 Sustain out (Lower)
SU Scan out (Upper)
Non-serviceable.
SU-Board should be exchanged for service.
SD Scan out (Lower)
Non-serviceable.
SD-Board should be exchanged for service.
