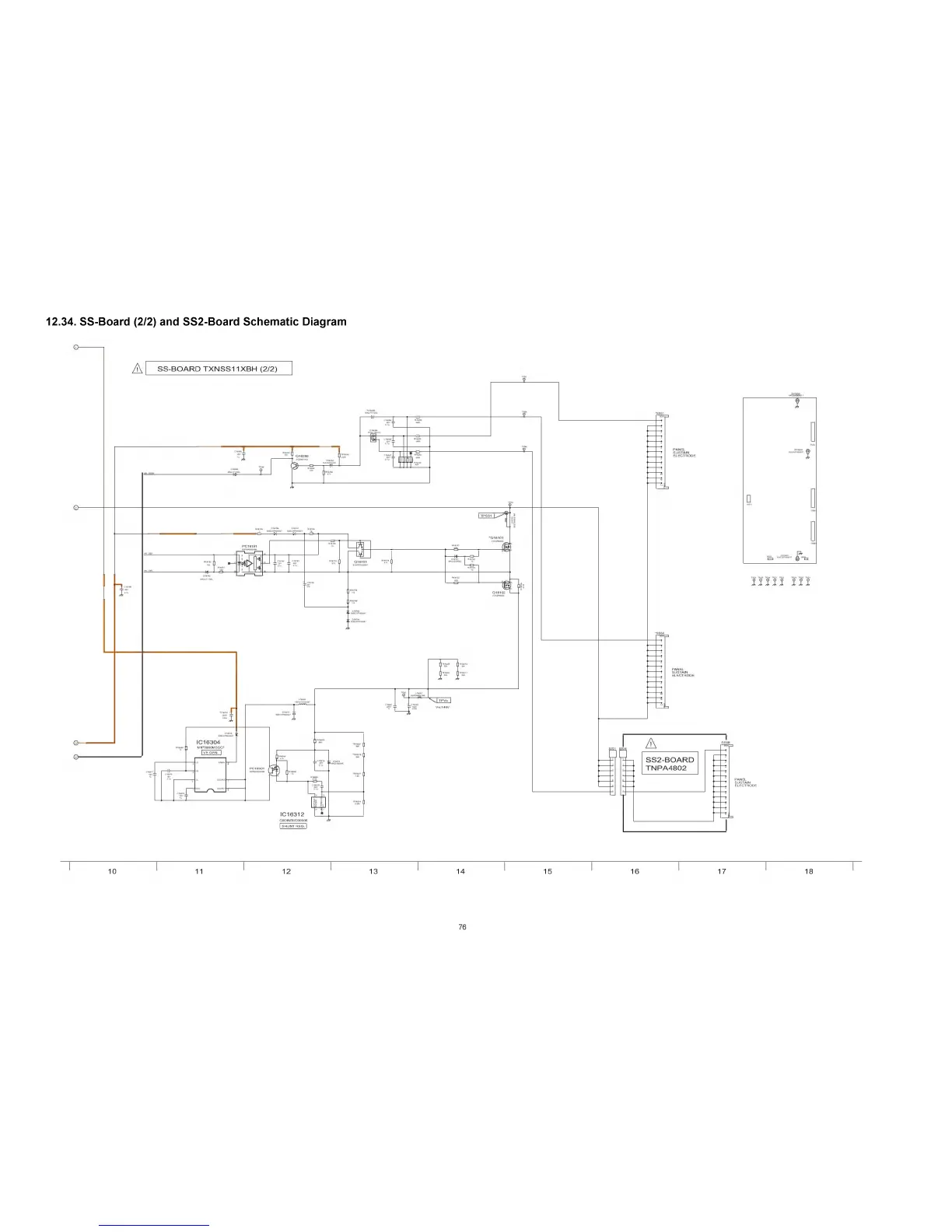

12.34. SS-Board (2/2) and SS2-Board Schematic Diagram
K4CD010&0011
PANEL
SUSTAIN
ELE CTRO DE
10 11 12 13 14 15 16 17 18
76
