Recorder operation
The following operations of the recorder are available using this software.
• Configuration of the settings of the recorder
• Check of each log of the recorder
• Check of the system information and disk information of the recorder
• Start/stop of the manual recording using this software
• Determination whether to enable or disable the alarm output from the AUDIO IN/ALARM OUT terminal on the
rear of the recorder
• Reboot of the recorder
• Download/upload of the setup data from/to the recorder
• Download/upload of the language data from/to the recorder
• Firmware update of the recorder
To operate the recorder, log in the recorder first. (☞ page 19)

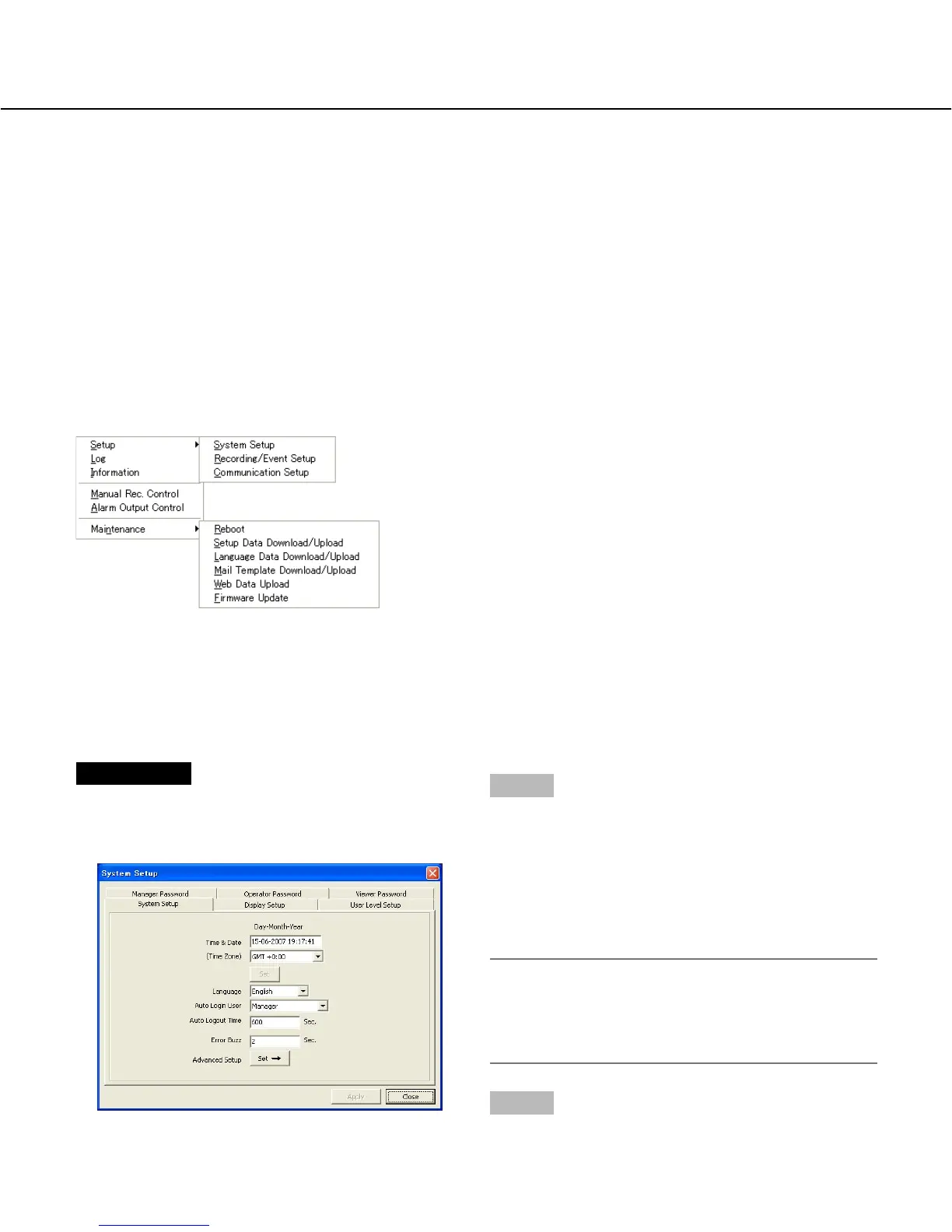

When clicking the [Recorder Config.] button, the pop-up menu will be displayed.
Note: Available operations differ depending on the login user.
Configuration of the settings of the recorder System Setup (Setup – System Setup)
Configure the basic settings relating the system of the recorder.
Screenshot 1
Select "System Setup" under "Setup" from the pop-up
menu.
→ The "System Setup" window will be displayed.
Step 1
The setup items on the "System Setup" window are the
same as the items on the setup menu ("System Setup",
"Display Setup", "User Level Setup", "Manager
Password", "Operator Password" and "Viewer
Password") of the recorder.
Refer to the installation guide of the recorder for further
information about the setup items.
Notes:
• The camera title (up to 10 alphanumeric characters)
can be set on the "Display Setup" tab.
• The camera title should be named in the language
selected for "Language" on the "System Setup" tab.
Step 2
When completing the settings, click the [Apply] button.
