Panasonic YP-100PF - Rated Duty Cycle

6
3 Rated Specifications (continuous)
3.4 Rated duty cycle
YP-060PF
 The rated duty cycle is 60 %. This means that the machine can cut for a total of 6 minutes out of any
10 minutes at the rated current, and then, during the remaining 4 minutes, the machine must be
cooled down to prevent overheating.
 Exceeding allowable duty cycle can cause the temperature rise higher than the maximum allowable
temperature, resulting in the performance degradation or damage.

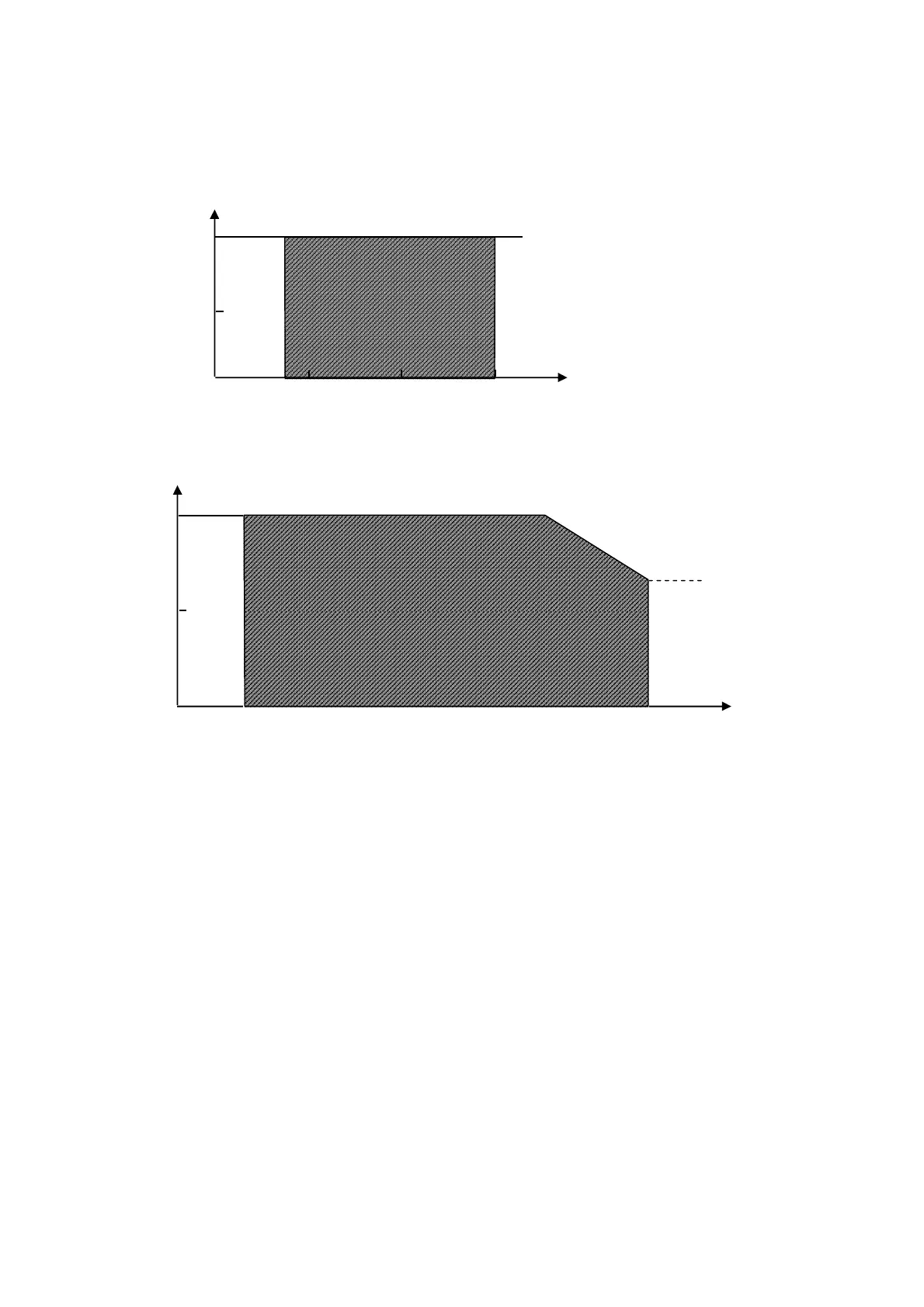

 The figure above shows the ideal value of cutting current and duty cycle. Please use the machine
within the corresponding duty cycle of cutting current..
0
10 20 40
60
0
50
100
10 20 40 60 80 100
60%
100% （77A below）
Rated Duty Cycle
Duty cycle (%)
Output current (A)
Output current (A)
Duty cycle (%)
50
100
100%
