USER MANUALSECURITY-SERVICE SYSTEM PANDORA CAMPER
EN
RADIO TAG BT760

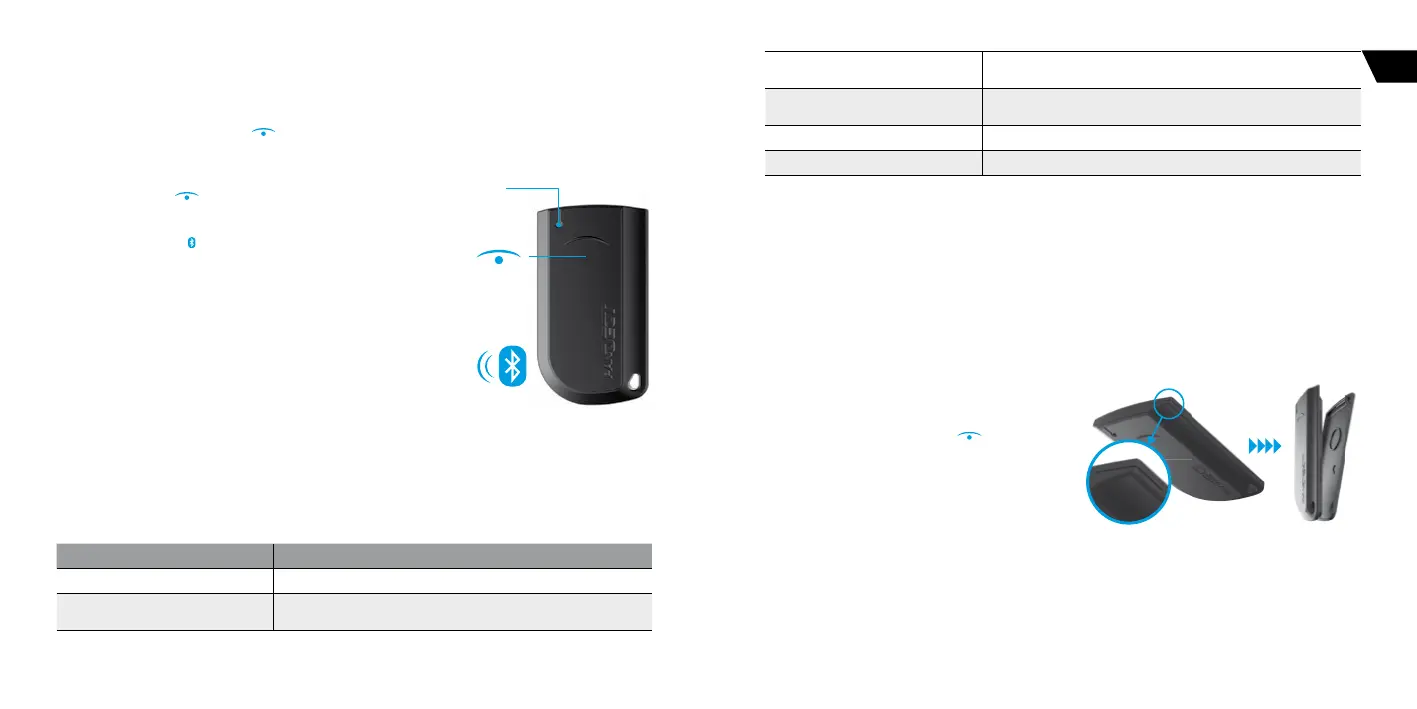

A radio tag is a device used to control a vehicle/system. The remote control is also used as an authorization
device for “Immobilizer/Anti-Hijack/HandsFree” modes. It works in the Bluetooth coverage zone.
A radio tag has: a control button
for arming/disarming and activating/deactivating service mode;
a built-in accelerometer allows the tag to go into energy saving mode when there is no movement; a
LED indicator SEND.
• Control button
for arming/disarming and activating/
deactivating service mode
• LED indicator SEND
• Bluetooth protocol
• Built-in accelerometer
• CR 2032 Battery
• 2,4 GHz radio interface (dialog encryption AES-128)
Light indication of the SEND indicator when there is a
short press of the button
• No flashes – a battery is discharged
• 1 flash – radio tag operation is correct
Light indication of the SEND indicator when installing a
battery
• No flashes – a battery is discharged
• 1 flash – low battery level
• flashes – high battery level
!
avoid moisTure on The radio Tag. do noT place The radio Tag near magneTs or producTs wiTh self-magneTic fields.
Functions of the button
ACTION FUNCTION
Short press when ignition is o Arm/disarm
Press and hold for 2 sec when the
system is disarmed and ignition is o
Activate Stay Home
Open here
Press and hold for 2 sec when the
system is disarmed and ignition is on
Change the “Main owner’s phone number”
Press and hold for 2 sec when ignition
is on
Activate/deactivate Service mode
Press and hold for 6 sec. Pair a tag with the base unit
Press and hold for10 sec. Firmware update
Replacing an immobilizer tag battery
Carefully open the cover of the tag’s battery compartment. Extract discharged battery and insert a
new one keeping in mind the correct polarity. Replacing a battery will not cause a loss of tag code
information, as authorization data is stored in the non-volatile memory of the MCU. Carefully close the
cover of the tag’s battery compartment. All elements of construction should be rigidly locked in places.
If it is so, the tag can be operated as usually.
Update rmware of a radio tag
• Download the Pandora BT application (for
Android or iOS devices equipped with a
Bluetooth 4.0 Low Energy or higher module)
• Open the mobile app Pandora BT.
• Press and hold the button
of the radio
tag until the 10th flash of the «SEND», indicator,
then release the button.
• Select the found device and select one of the
update option: FILE MANAGER – firmware will
be uploaded from the phone storage (only for
Android). INTERNET – firmware will be uploaded
by an internet connection.
