Pandora Light Pro User Manual

Pandora

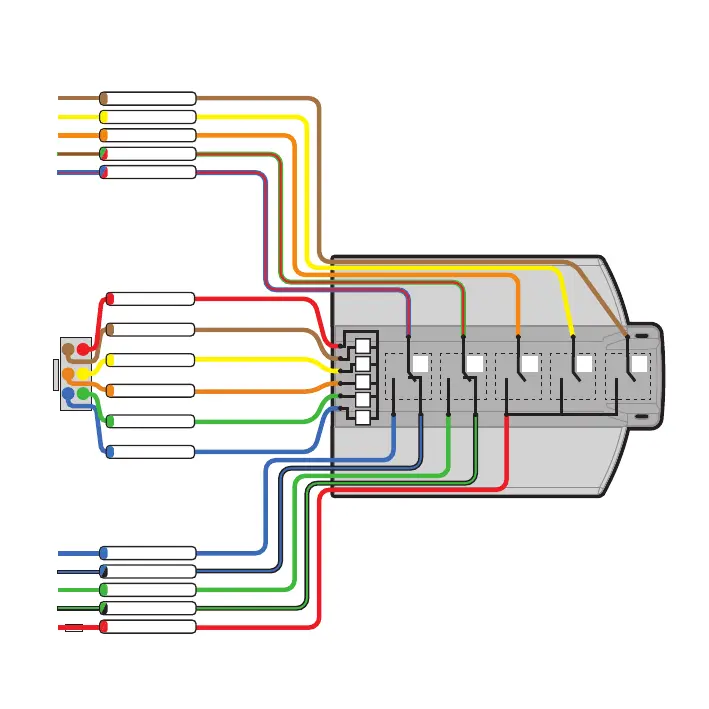

Relay module RMD-5M
(The module is not shipped
with the system)
** Total current of relays R3+R4+R5
should not exceed 40А
*** For PANDORA LIGHT PRO systems
* For remote start implementation
via Start/Stop button
3 6
52
1 4
+ 12V
Starter
CH10***
Bypass
CH8***
NO blocking/
NC blocking
CH7***
ACC/
Brake pedal *
CH6***
Ignition/
Start/
Stop button
CH9*
R4
R5
R3
R2
R1
R1 R2 R3 R4 R5
20A**20A**20A**20A20A
Relay
module
Brown
Yellow
Orange
Green/Red
Blue/Red
40А
Blue
Blue/Black
Green
Green/Black
Red
Brown
(–)
Yellow
(–)
Orange
(–)
Green (–)
Blue
(–)
Red
(+)
