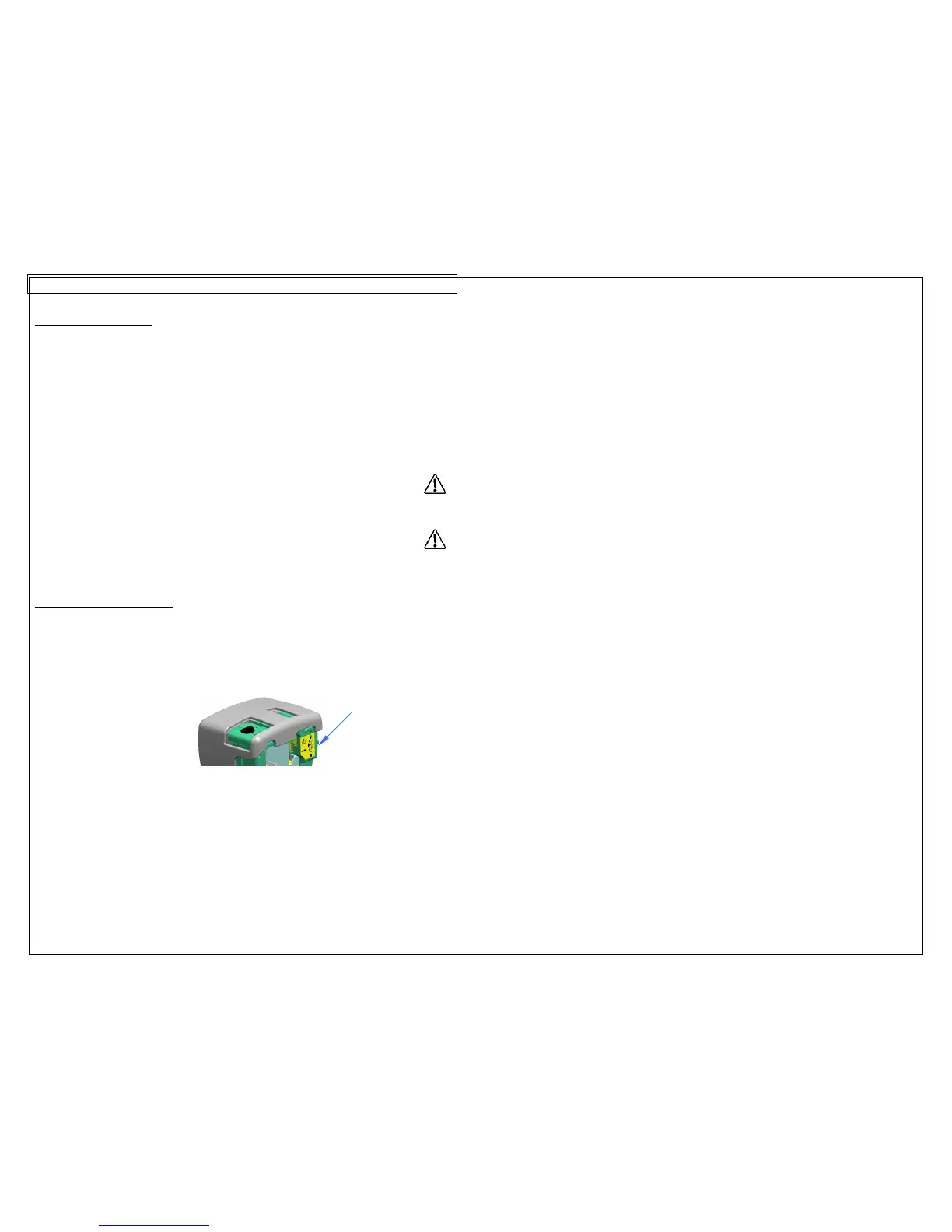

LOADING BATTERIES AND LABEL CASSETTE
9
Loading the Batteries
1. Remove the battery door from the back of the PANTHER™ LS8EQ printer. If
the impact bumper is installed on the printer, you will have to move it away
from the battery door first.
2. Install the 6 AA batteries according to the molded indicators within the battery
compartment.
3. Reattach the battery door. Move the impact bumper back over the battery
door if necessary.
Observe Correct Polarity When Installing
Batteries
Replace All Six Batteries At The Same Time
Loading a Label Cassette
1. Remove the cassette door from the back of the PANTHER™ LS8EQ printer.
2. Install a label cassette. Press firmly to lock the cassette in place. Do not
remove the raised white tab from the cassette. This tab is used to assist with
removal of the cassette from the LS8EQ printer.
3. Lock the print head latch.
4. Reattach the cassette door.
NOTE: To uninstall a label cassette:
1. Unlock the print head latch.
2. Remove the cassette door.
3. Remove the cassette. Use the white removal tab on the
cassette for assistance.
4. Reattach the cassette door.
Print Head Latch

Panduit PanTher LS8EQ Specifications

General

Color	-
Print technology	Thermal transfer
Vertical printing	Yes
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Display	LCD
Product color	Black, Grey
Keyboard layout	QWERTY
Display number of lines	4 lines
Certification	RoHS, WEEE, FCC
Number of styles	3
Battery type	AA
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Number of batteries supported	6
PC connection	USB 2.0
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 90 %
Cables included	USB
Bundled software	PanTherLink

Weight and Dimensions

Weight	80 g
