104

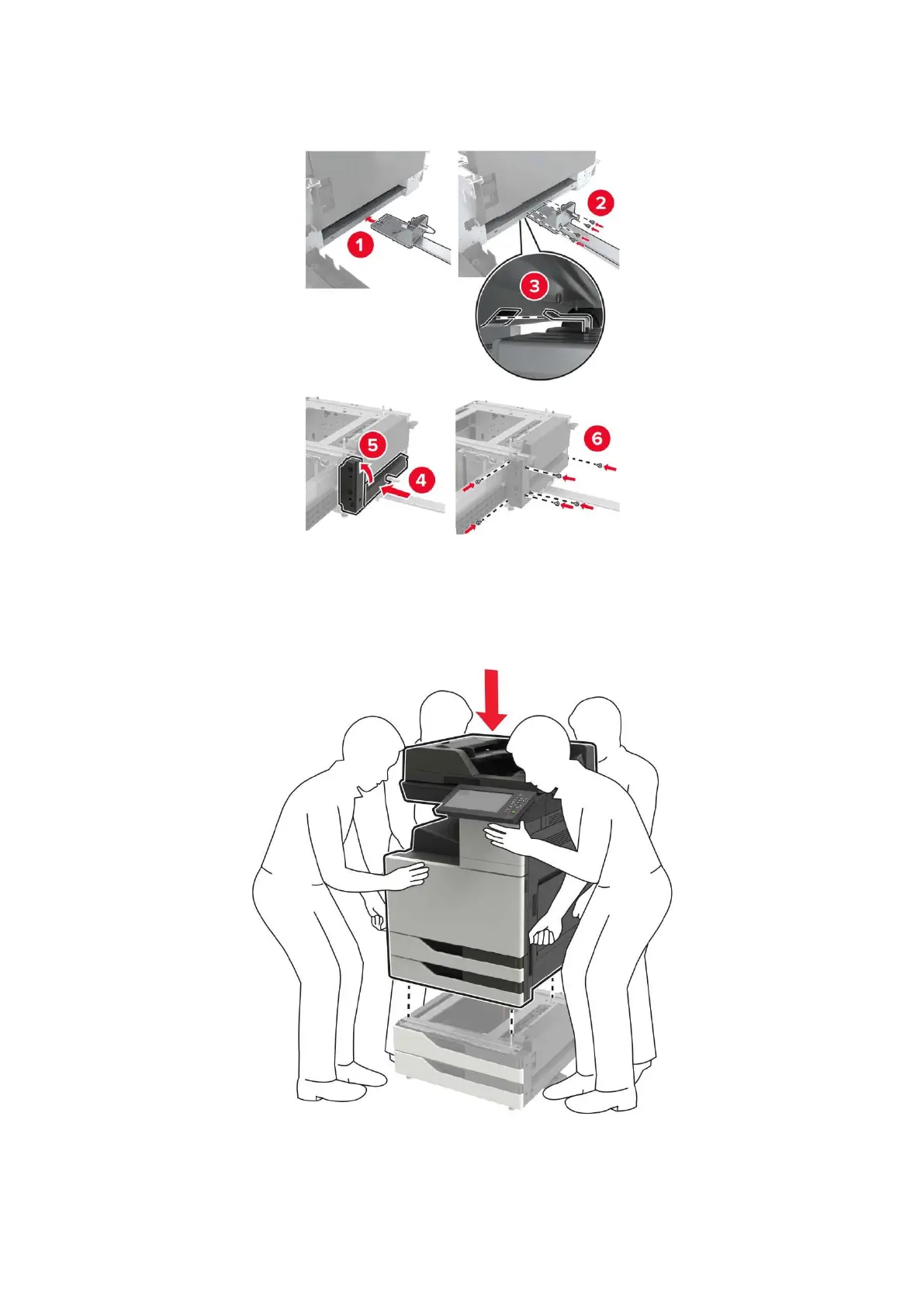

13. Install the guide, and then install the mounting bracket and the guide cover.

14. Close the tray.

15. Align the printer with the tray with the side handle, and then lower the printer in place.
