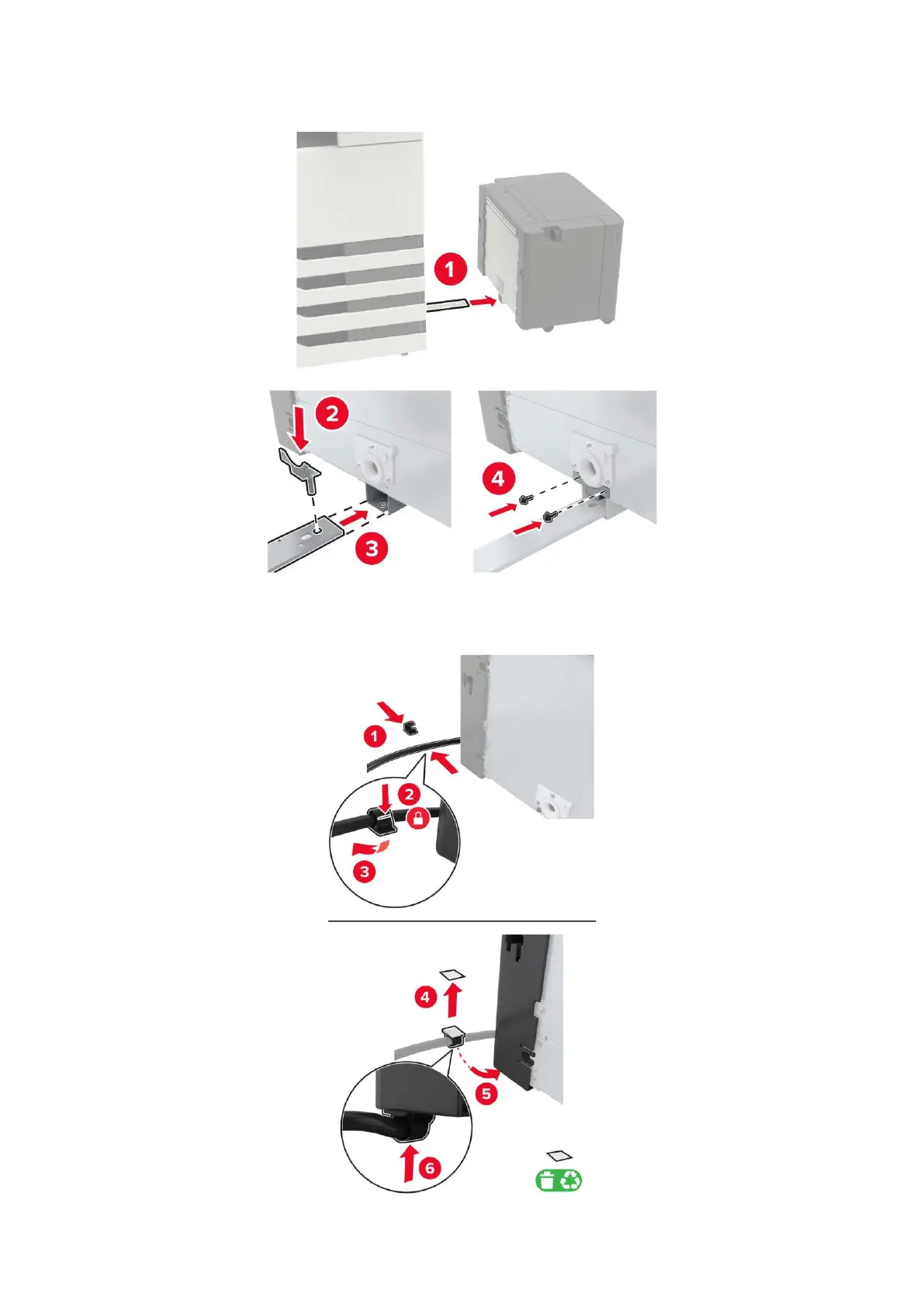

16. Align the 3000-sheet tray with the printer, and then install the fixing column.

17. Attach the tray cable with clips.
