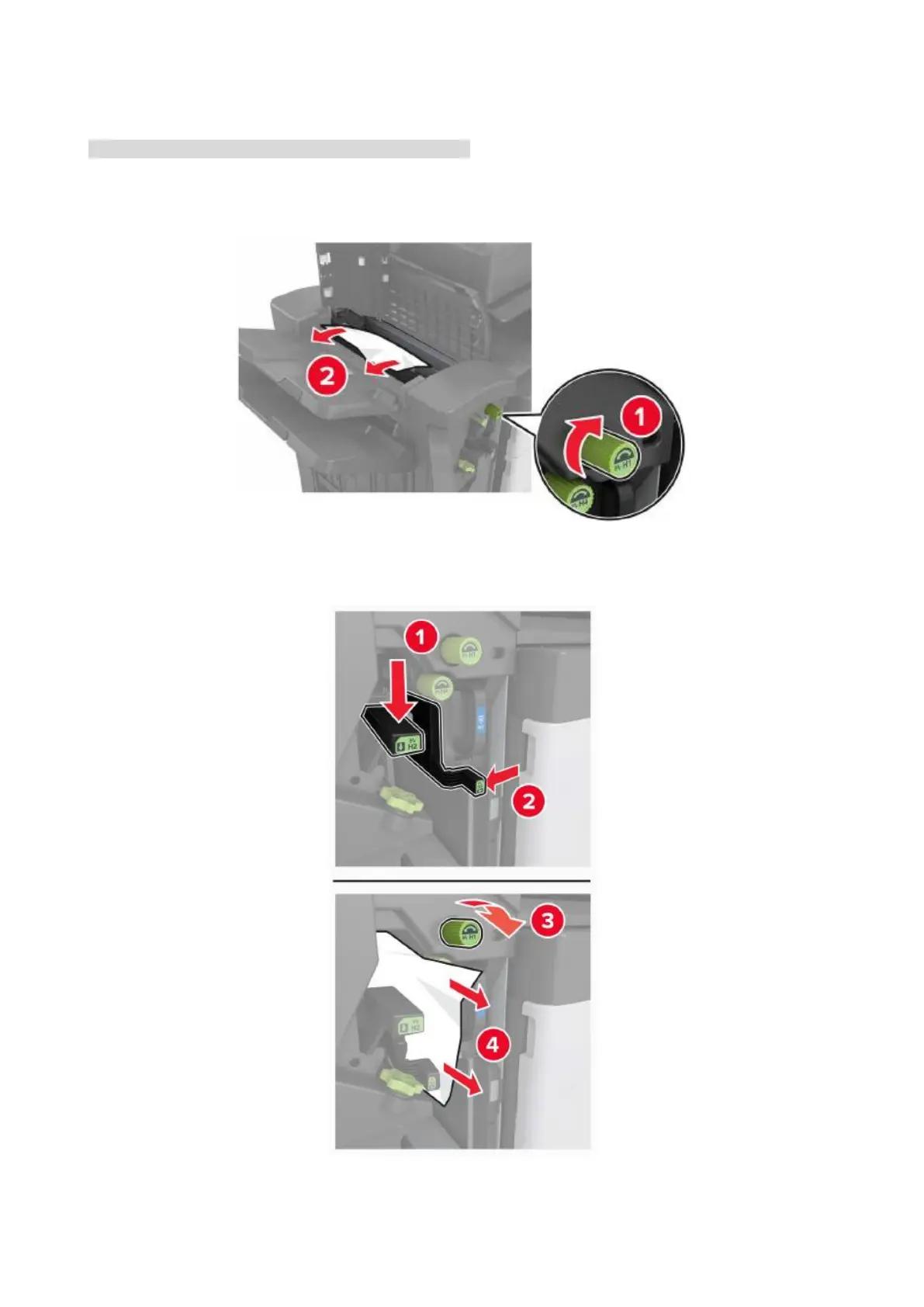

4. Remove the jammed paper from any position below.

Note:

• Make sure that all paper fragments are removed.

• Door J

• Area H1 and H2
