• Area H6

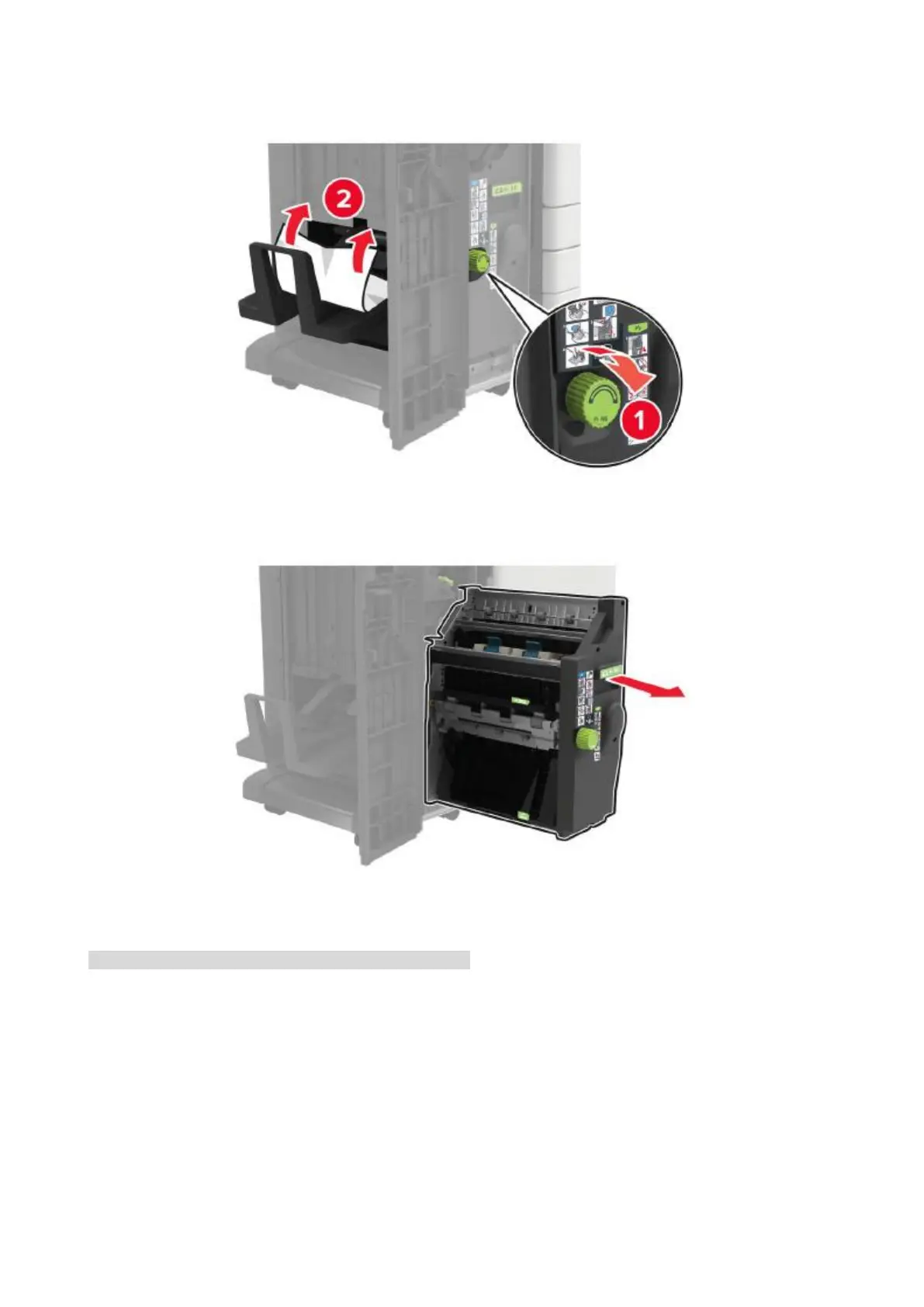

5. Pull out the booklet maker.

6. Remove the jammed paper from any position below.

Note:

• Make sure that all paper fragments are removed.
