12 NVX80 Installation Manual
2.4 Connecting the NVX80 to a Control Panel
Connect the NVX80:
• To EVO control panels with a Digiplex connection
• To MG/SP control panels or a third party system with a Dry Contact connection
2.4.1 Digiplex Connection
Connect the NVX80 to the EVO control panel with four colored wires corresponding to the marking on the terminal
board as displayed below.

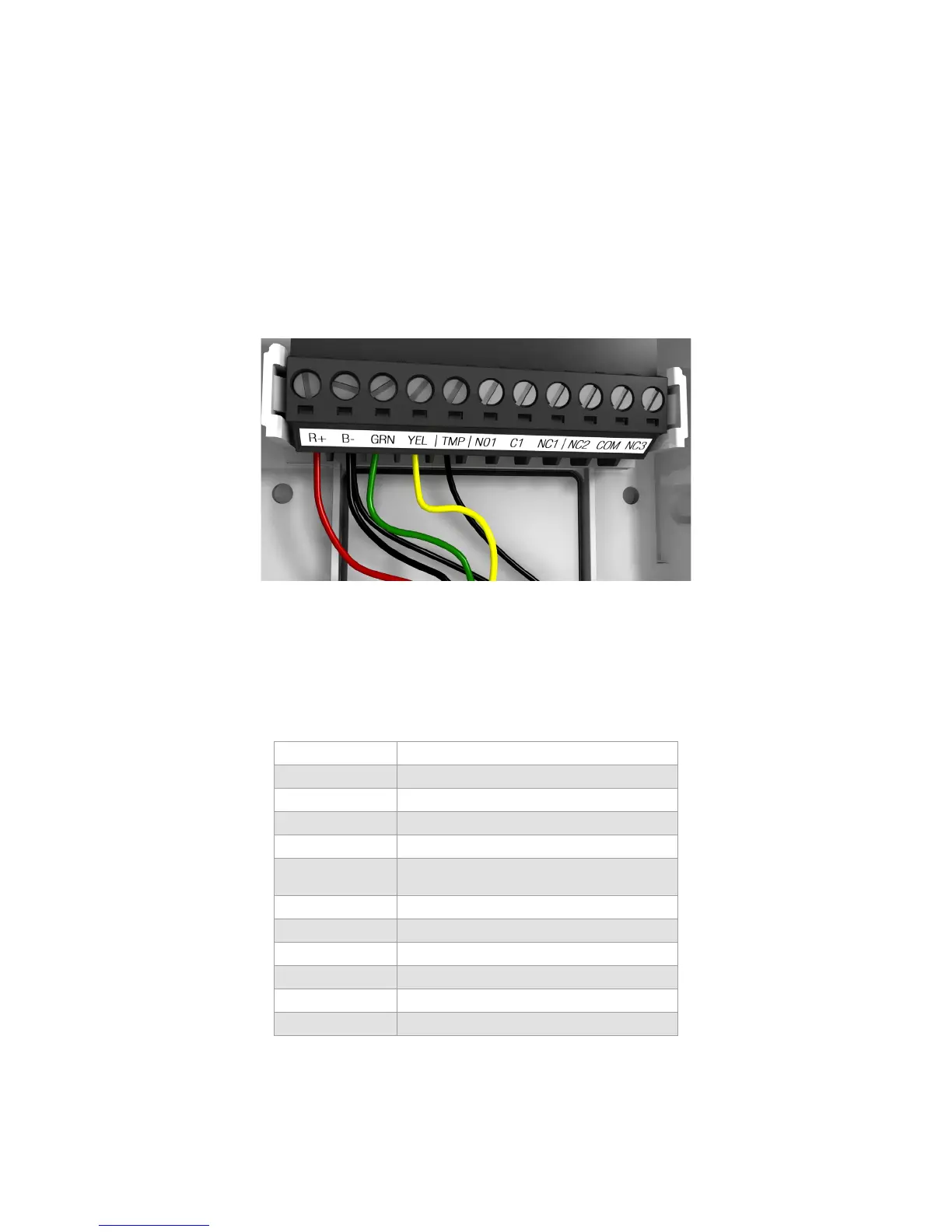

Figure 8: Digiplex Wiring
2.4.2 Dry Contact Connection
Connect the NVX80 terminal board to MG/SP control panels or a third party system as described below.
Table 1: Dry Contact Connection
Contacts Description
R+ Power Line
B-
Ground
GRN N/A
YEL
N/A
TMP Tamper line (note the tamper ground line
should be connected to B-)
NO1
Relay 1 (Form C) Normally Open output line
C1 Relay 1 Common
NC1
Relay 1 (Form C) Normally Closed output line
NC2 Relay 2 (Form A) Normally Closed output line
COM
Relays 2 and 3 common
NC3 Relay 3 (Form A) Normally Closed output line
NOTE: Configure NVX80 after connecting it to the control panel via the OLED screen on the NVX80, BabyWare
software or a supported keypad.
