NVX80

Quick Start Guide

NVX80-EQ0

Product Description

The Paradox NVX80 motion detector is above and beyond anything in its class. The NVX80 fea-

tures resilience to extreme outdoor conditions, a series of active infrared anti-masking and

microwave proximity technologies to detect if anyone is trying to mask the detection, and

unparalleled detection performance using SeeTrue™ (patent pending). The NVX80 is the only

detector in the industry offering eight detection channels - 4x forward looking PIR channels (2x

quad interlock geometry sensors), 2x microwave channels and 2x standalone creep detector

(1quad sensor with interlock geometry).

SeeTrue™ significantly improves the detection of cloaked intruders trying to avoid PIR detec-

tion by means of using insulating materials such as heavy coats, cartons, umbrellas, etc.

The combination of advanced technologies found in the NVX80 overcomes technical obstacles

that traditional PIR detectors cannot, like the degrading effects of high temperature environ-

ments.

For the installer, "Easy Slide" installation, and first-in-industry full-color OLED display with intui-

tive menus, allows easy programming and installation without any mechanical setting (jump-

ers). The NVX80 also features diagnostic tools testing its PIR, anti-mask, and microwave

settings, as well as SoloTest™ for easy walk test execution.

The sleek, vandal-resistant, and built-tough NVX80 is the detector of choice for commercial,

industrial, and residential applications.

Consider the following before you begin installation of the NVX80.

Package Contents

Inspect to make sure you have the following items:

• NVX80 Motion Detector

• All-weather cover (for outdoor use)

• Screws

•Foam pad

Optional items may include:

• Wall anchors

• Additional screws

Mounting Considerations

Recommendations

• Ensure that the unit’s detection beams are perpendicular to the anticipated move-

ment (see beam patterns below)

• Keep a minimum distance between adjoining NVX80 detectors to prevent MW

cross interference

• The NVX80 can be placed under a roof, awning, or the all-weather cover can be

installed for outdoor installations

• Install the detector within the suggested range: installing the unit lower than 2.5 m

/ 8 ft 2 in may compromise the Pet Immunity capability. Installing over 3.0 m / 9 ft 8

in may require use of our swivel bracket adjusted downward shifting the Pet

Immunity beam and neutralizing the creep zone. Installing the unit over 3.0 m / 10

ft does not affect the creep zone.

• If the installation is near heavy traffic or objects beyond the required detection

range, adjust the MW sensitivity and/or tilt the detector downward.

Recommended Restrictions

• Don’t direct the unit’s beams into swaying trees or bushes

• Don’t place the detector facing direct sunlight or near a heat source, as it might

interfere with the Active IR anti-mask feature

• Don’t place any objects, such as shelves, ledges or plants, below the unit

• Don’t place any reflective objects within 2 m / 6 ft. 6 in of the unit, as this may inter-

fere with the MW anti-mask capabilities

• Don’t use excessive force when handling the NVX80

Figure 1: Beam Patterns

Technical Specifications

Warranty

For complete warranty information, please visit www.paradox.com/terms. Your use of the Para-

dox product signifies your acceptance of all warranty terms and conditions. Paradox, Digiplex,

EVO, ENVY Series and Pet Immunity are trademarks or registered trademarks of Paradox Secu-

rity Systems (Bahamas) Ltd. or its affiliates in Canada, the United States and/or other countries.

Patents

One or more of the following US patents may apply: 7046142, 6215399, 6111256, 6104319,

5920259, 5886632, 5721542, 5287111, and RE39406 and other pending patents may apply.

Canadian and international patents may also apply. Printed in Canada.

SeeTrue™ Effective Range Indoor use, two levels, secure and sterile, up to

12 m (36 ft)

Dual Anti-Mask Selectable:

1) Active IR: Proximity and blocking comply /

surpass EN50131 grade 3 for all materials, liquid.

2) Active Microwave for movement detection.

Creep Zone Area Up to 3 m (10 ft) 90° downward

Coverage Pattern 16m (52 ft) 90°

Installation Height 2.5 - 3.0m (8 - 10 ft). A bracket may be used for

installation requiring higher mounting.

Current Consumption

(at 12V)

Typ. 80 mA, max. 100 mA

Outputs Relay 1: 1A 24 VDC

Relay 2 and 3: 150 mA / 24 VDC

Display OLED, 16-bit, 96 x 64 pixels

Dimensions 9.8 cm x 22.9 cm x 9.2 cm (3.8 in x 9.0 in x 3.6 in)

Tam p er Dual : Cov er and Wall

RF Immunity 10 V/m up to 2.7 GHz

Operating Temperature -35º to 60º C (-31º to 140º F)

Bus Connection Paradox EVO Series, 4 wires

Certification EN 50131-2-4 Grade 3 Class IV;

Certification Body: Applica Test and Certification

Construction Materials ASA UV Resistant

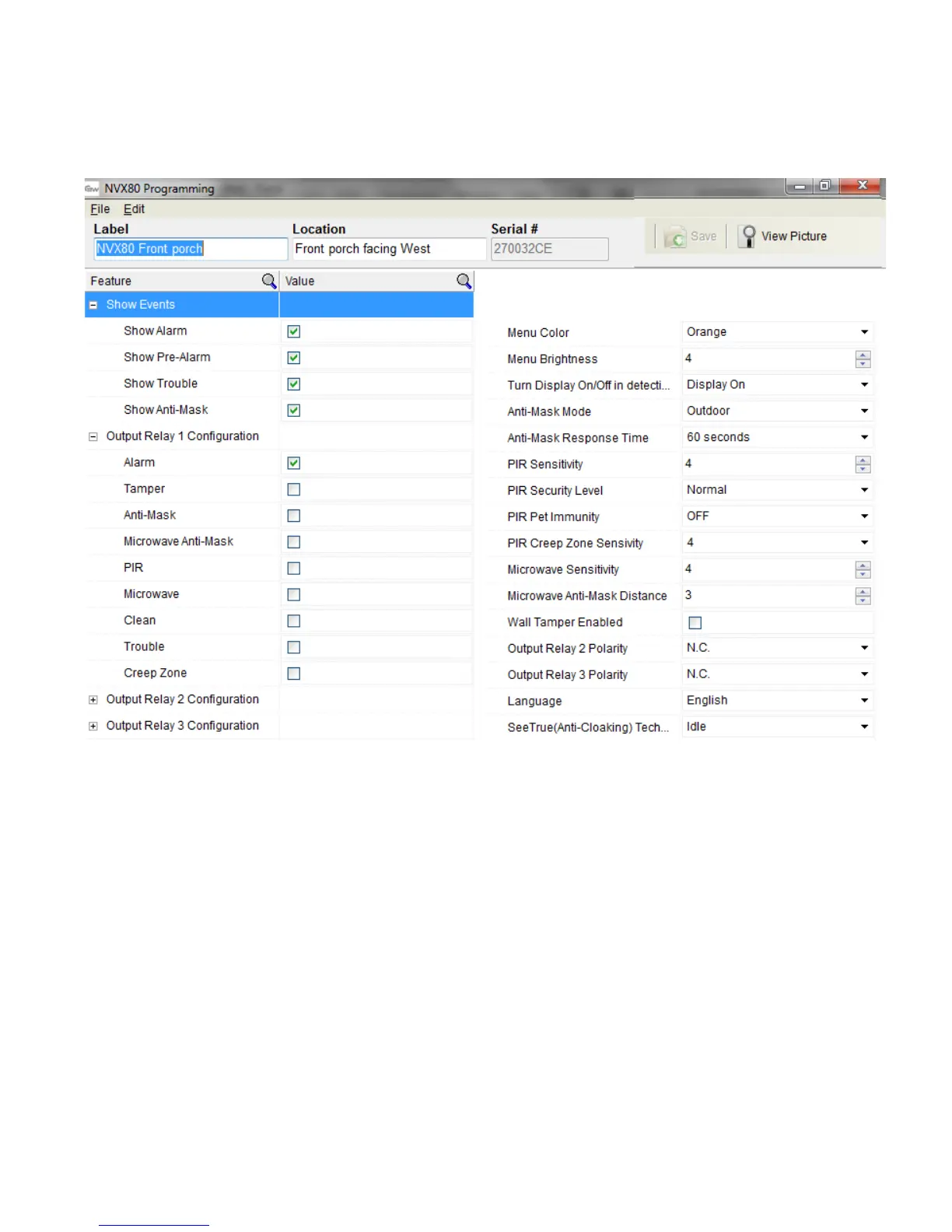

Programming Interactive 4-button programming with graphic

menu display or via EVO bus

Weight 520 g (1.1 lb)

PIR Forward 2X quad sensors with interlock geometry

PIR Creep 1X quad sensor with interlock geometry

Microwave Dual output 10.5 GHz

Power Up Time Approximately 30 seconds

Humidity 5 - 95% RH non-condensing

Ingress Protection (IP) Rating IP54 & IP55 (dust and water protection)

Pet Immunity Suppress detection of animals: Settings for small

and large pets

Languages English, Portuguese
