Paradox SPECTRA SP5500 User Manual

Magellan / Spectra SP 53

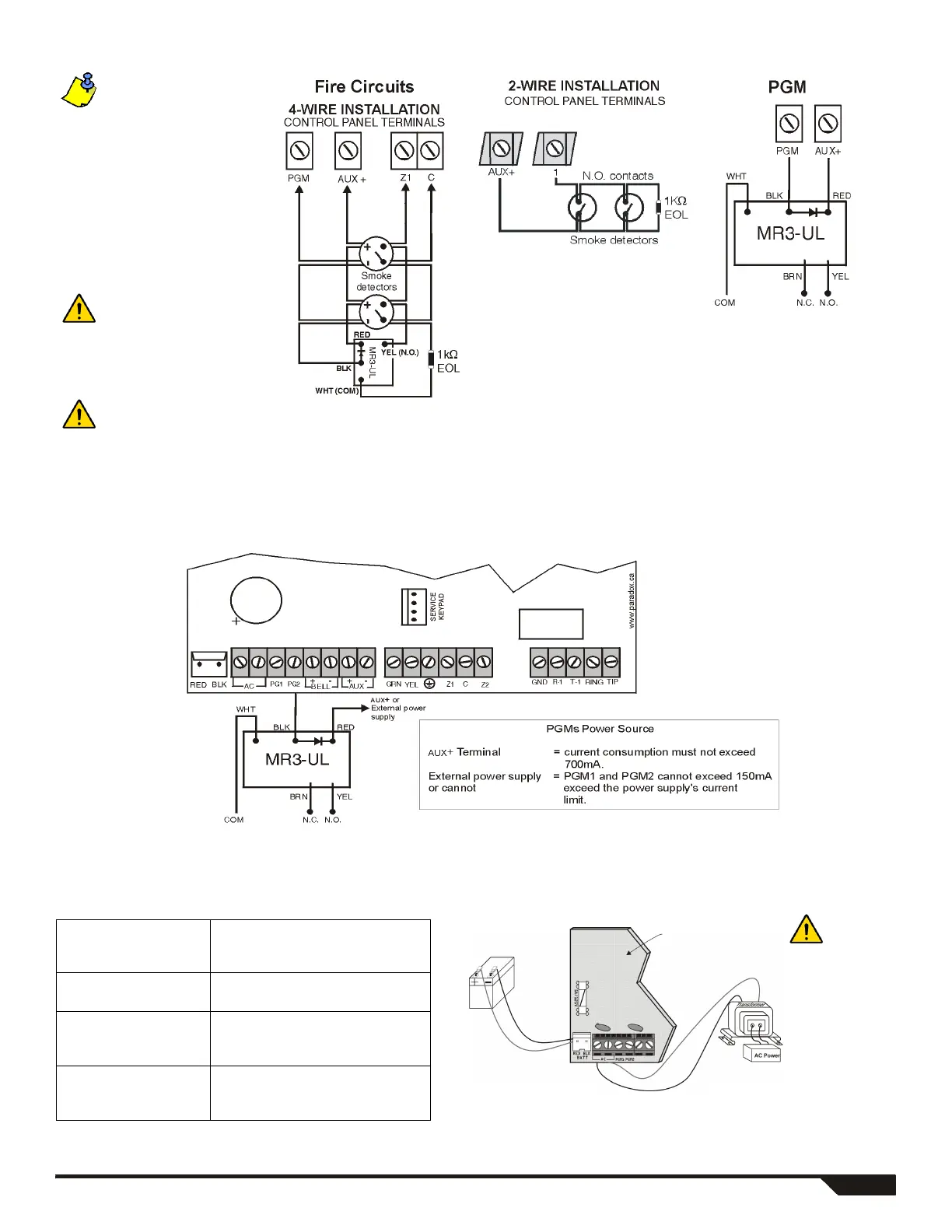

Connecting Fire Circuits and PGMs
Alarm Relay and PGM Connections
AC Power & Backup Battery Connections
Transformer Requirements Table
Transformer: 16VAC 20VA* (Amseco XP-1620)
16.5VAC 40VA (Universal UB1640W)
*not verified by UL
DC Power
Supply rated at:
MG5000/MG5050 = 1.0A
SP5500/SP6000/SP7000 = 1.4A
Auxiliary Supply can
provide a maximum of:
typ: 600mA
max: 700mA
UL installations: typ. 200mA
Acceptable Battery Charge
Currents (section [127]
option [5])
350mA/700mA
For 4-wire installation:
Program the Activation
Event so that the smoke
detectors can be reset by
pressing the [
CLEAR] +
[ENTER] keys for three
seconds. See Event Group
# 6 on page 18. For 2-wire
installation (except
SP5500): Press [
CLEAR] +
[
ENTER] to automatically
reset smoke.
All 4-wire smoke
detectors must be
connected using the
daisy chain
configuration.
Each control panel
(except the SP5500)
supports a maximum of
five 2-wire smoke
detectors.
Partial view of control panel
UL Warning:
A 12Vdc / 7Ah battery is required to comply with UL fire
requirements.
Caution:
Disconnect battery before replacing the fuse.
Rechargeable Battery
UL/ULC - 12Vdc / 4Ah or 7Ah
Improper
connection
of the
transformer
may result in
damage to the
system.

Paradox SPECTRA SP5500 Specifications

General

Partitions	2
User Codes	32
Event Buffer	256 events
StayD Mode	Yes
Communication	GSM (optional)
Remote Control	Yes
System Type	Hybrid
Wireless Zones	32
Battery Backup	12V 7Ah
Operating Temperature	0°C to 50°C (32°F to 122°F)
Humidity	5% to 90% non-condensing
