General facts Information Operation Help
- Functions of the secondary systems -
The primarily used control elements are described. Other
control elements are possible. Your service technician can
address any additional instructions that may be necessary.
Autonomous control panel
4 pushbuttons, lit for feedback of the action.
• Park position "P"
-> Parking, engaging the parking block in automatic transmis-
sions.
• Driving gear "R"
-> Reverse, shifting into reverse gear.
• Driving gear "N"
-> Neutral (idle), engine and transmission are decoupled.
• Driving gear "D"
-> Drive, forward driving with automatic gear selection.
-> Selection of the sub-gears 1, 2, or 3.
Integrated control panel e.g. in the joystick
The same function or operation as with an autonomous
control panel.

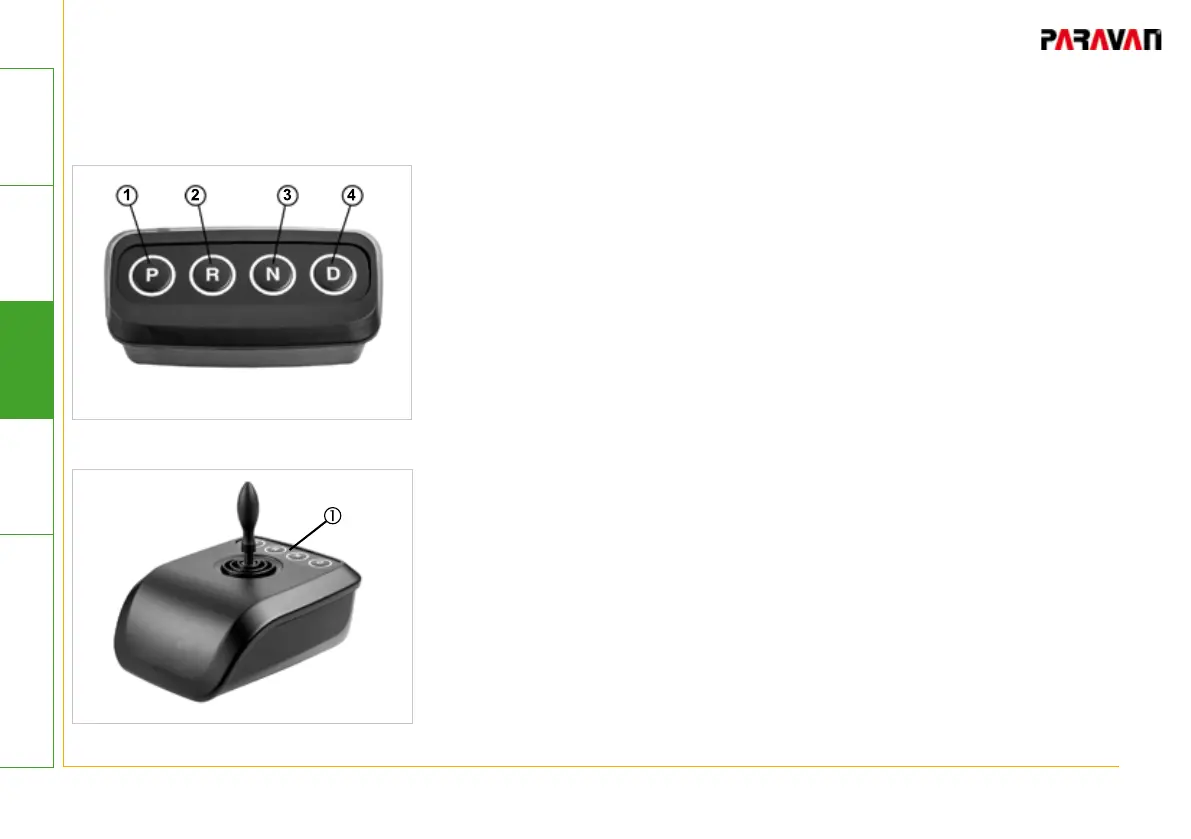

Fig. 13: Gear Cont. control panel
6.2.2 Operating elements
Fig. 14: Integrated control panel
