Assembly
Assembling

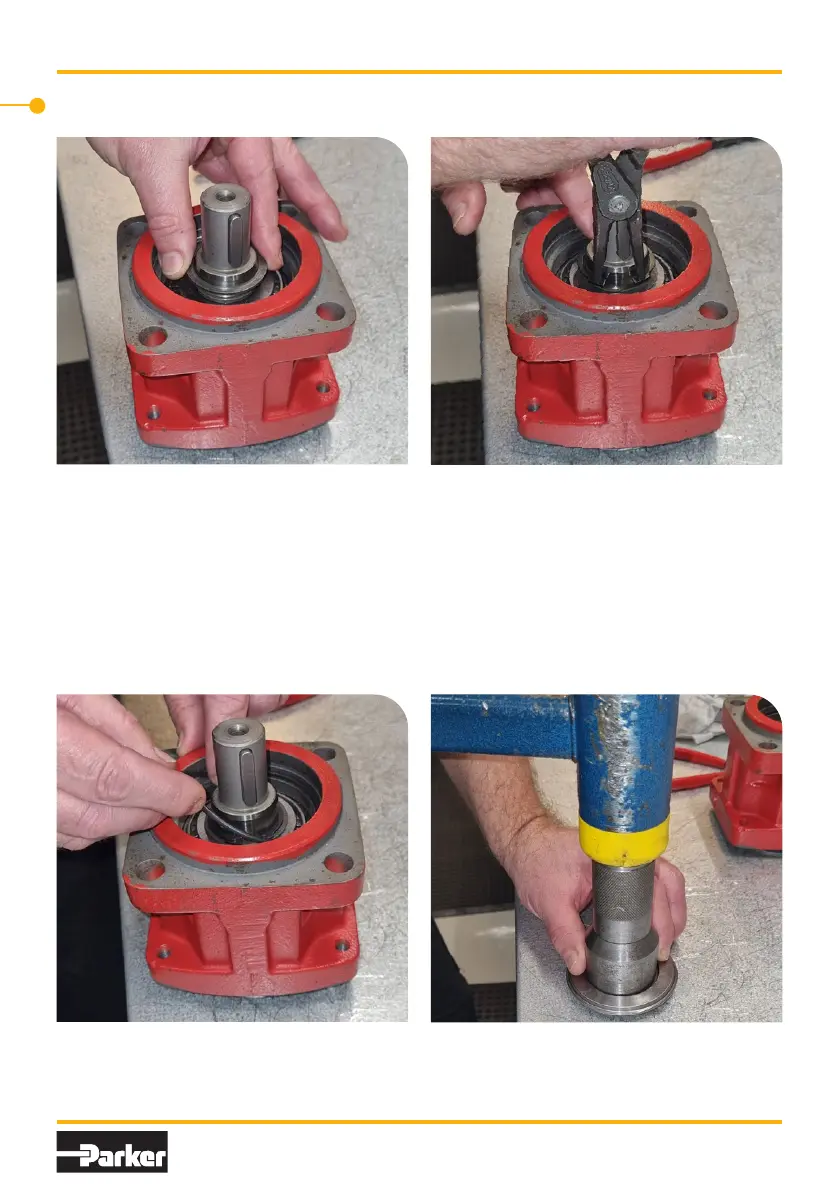

24. Install the space washer (item 476).
Space washers are available in dif-
ferent thickness, these are included in
bearing kit.
25 Install the retaining ring (item 478)
Included in bearing kit
Secure that the retaining ring is correct
mounted in the groove and the space
washer is tight mounted.
Tips! Use mandrel and hammer to tap
carefully to secure that retaining ring is
mounted correct.
26. Install the O-ring (item 225)
Included in seal kit
Tips! Use some oil on the O-ring
27. Tap the new shaft seal back with a tube
and a hammer.
