Parker F10 Series User Manual

MSG30-5524-M1/UK
14
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service/Spare Parts Manual
Series F10
Assembling
Assembly

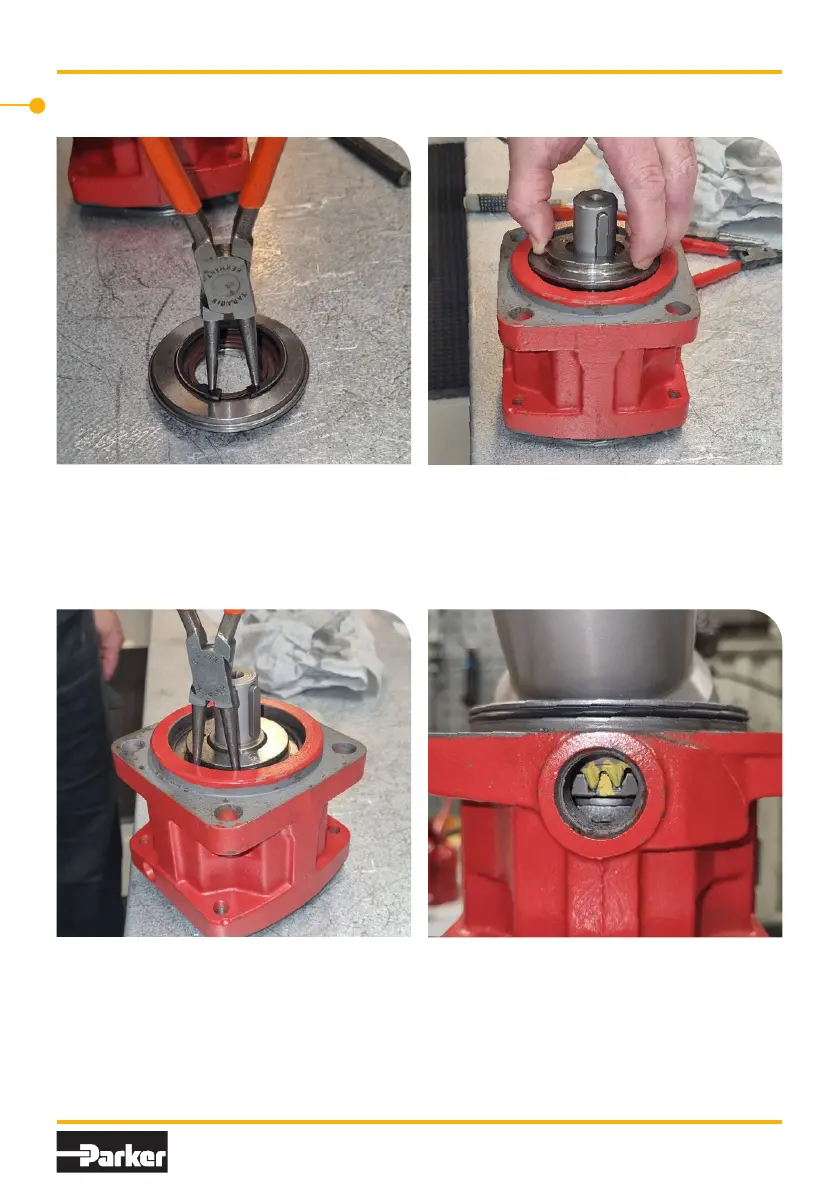

28. Assemble the retaining ring (item 238) 29. Install the seal carrier (item 231)
Tips! Protect the shaft seal from sharp
edges on shaft.
30. Install the retaining ring (item 237)
Included in seal kit
Tips! Tap with mandrel and hammer to
secure retaining ring is correct
assembled.
31. Install the O-ring (item 221)
