As previously, Parker can provide 4 meter length power cable to take place between the
drive and the battery (with 2 interlock wires) which part number is HVLP-B-D-CABLE.
For High Voltage Low Power drives with multi core thin cables, the plastic
insulator must not be damaged neither removed to insure insulation and
safety protection.
3.8.3.2. Vehicle chassis (ground) connection
Use one of the fitting holes for vehicle chassis connection as on the picture below.
In every country, you must respect all the local electrical installation
regulations and standards to determine the vehicle chassis (ground) cable
size.

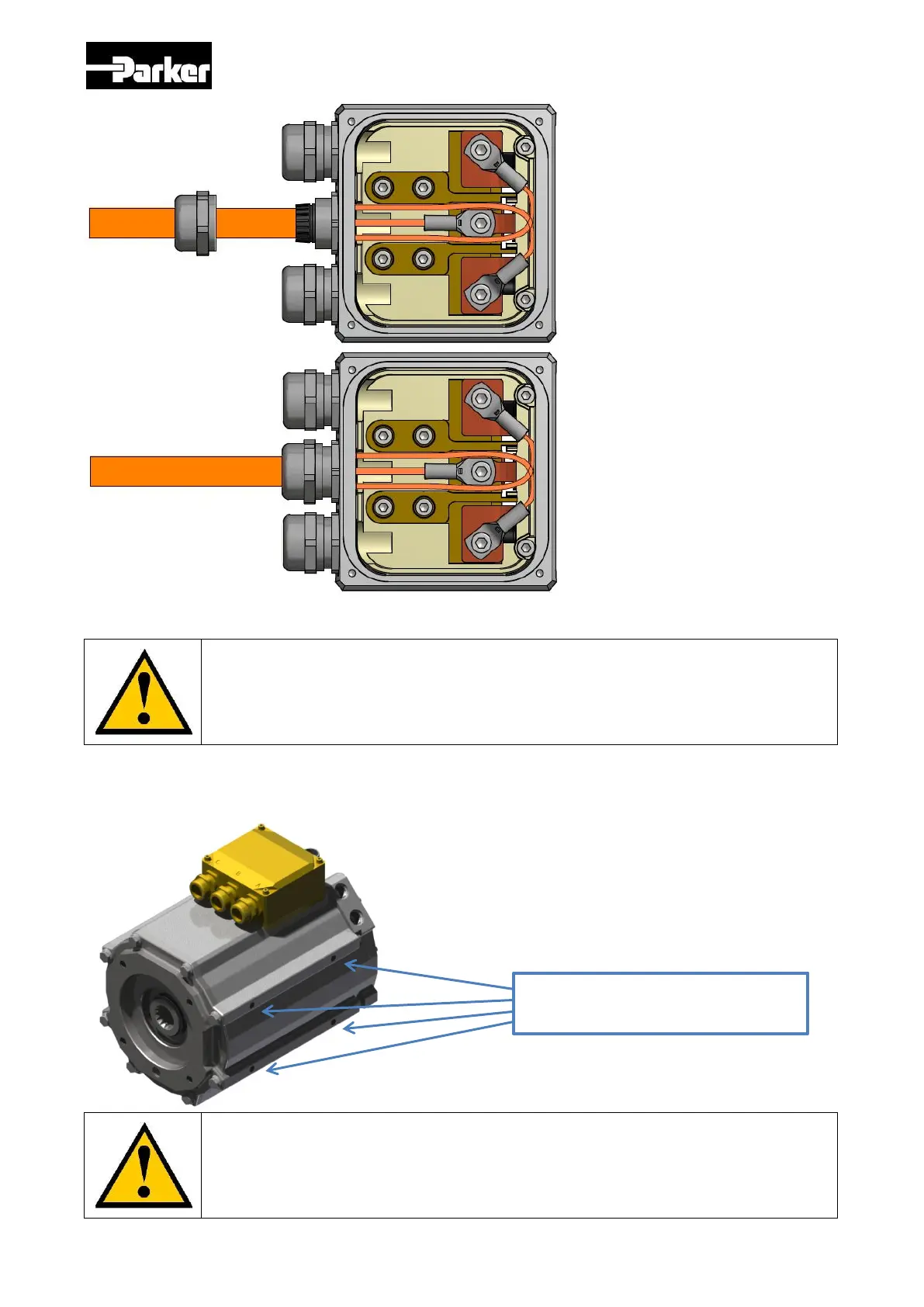

Holes available for grounding
connections on 3 motor sides
Please use M6 x 10 to fix
the terminals (tightening
torque : see §4.2.1)
Take care to close
non-used cable glands
