Parker GVM Series User Manual

- 75 –
18-06-08 PVD3668_GB_GVM_June_2018

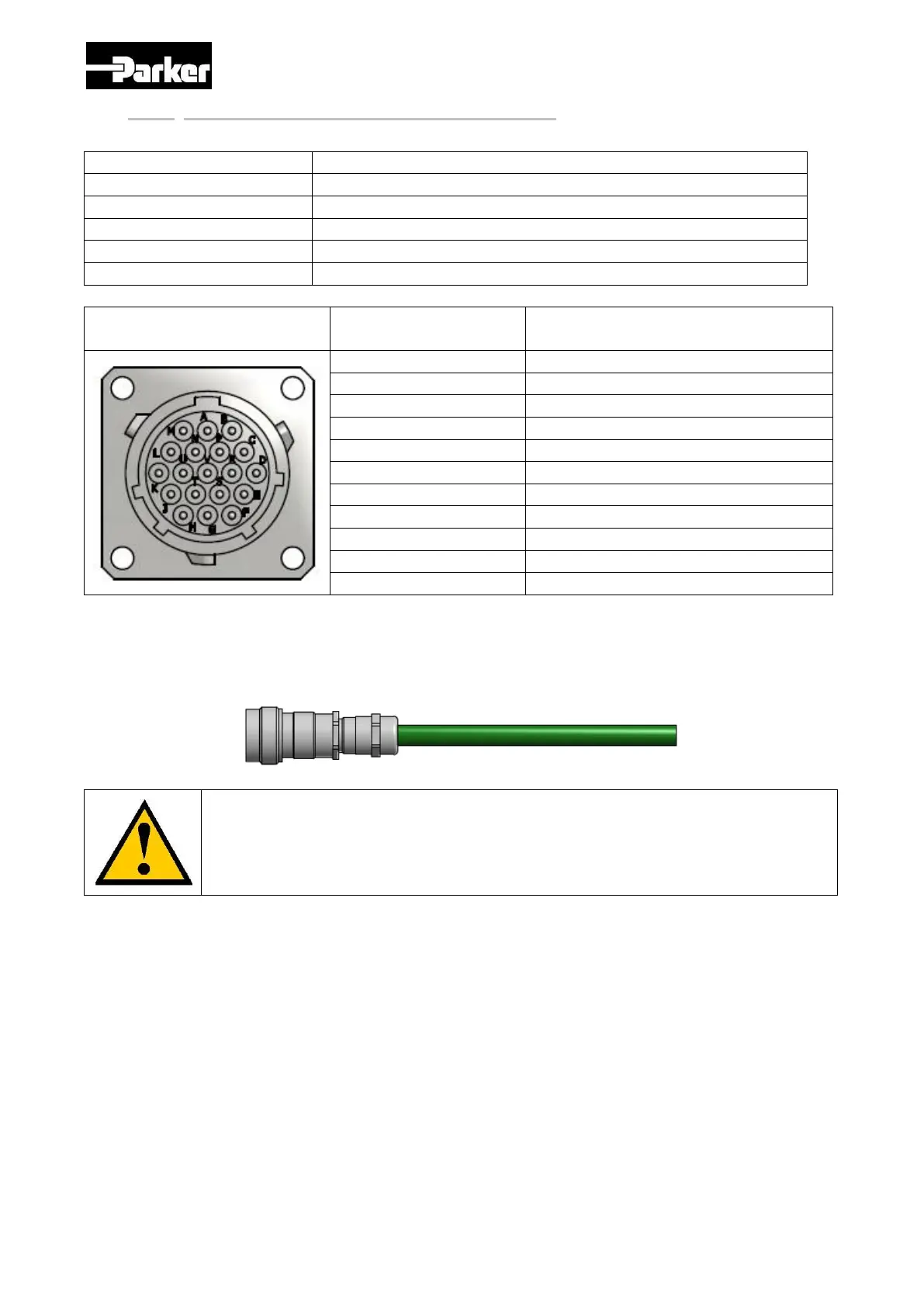

3.9.2. Sin-Cos Encoder (low voltage application)
Parker part number
220285P0002
Electrical specification
Values @ 500 Hz
Input voltage
5 Vrms ± 5%
Input current
20 mA maximum
Encoder accuracy
± 0,5° maxi
Internal serial impedance
720 Ω
Sin-Cos Encoder
connector
PIN
Signal
A
VA (Sin)
J
VDD
K
GND
E
VB (Cos)
C
PTC Therm Disconnect (+)
D
PTC Therm Disconnect (-)
G
KTY Winding Therm (+)
H
KTY Winding Therm (-)
L,M,N,P,R,S,T,U,V
Not Connected
In this case, Parker can provide Encoder Sensor cables, to be placed between the motor
and the drive, with standard lengths of 1, 2, 3 or 4 meters ; its part number is built as follows
“CBFSC0H0-SRX-000-00x0-00” where “x” is the length in meter.
In case of SinCos encoder, take care to connect the cable shield to the
vehicle chassis.
In any case the motor housing must be at the same potential than the drive
body.
