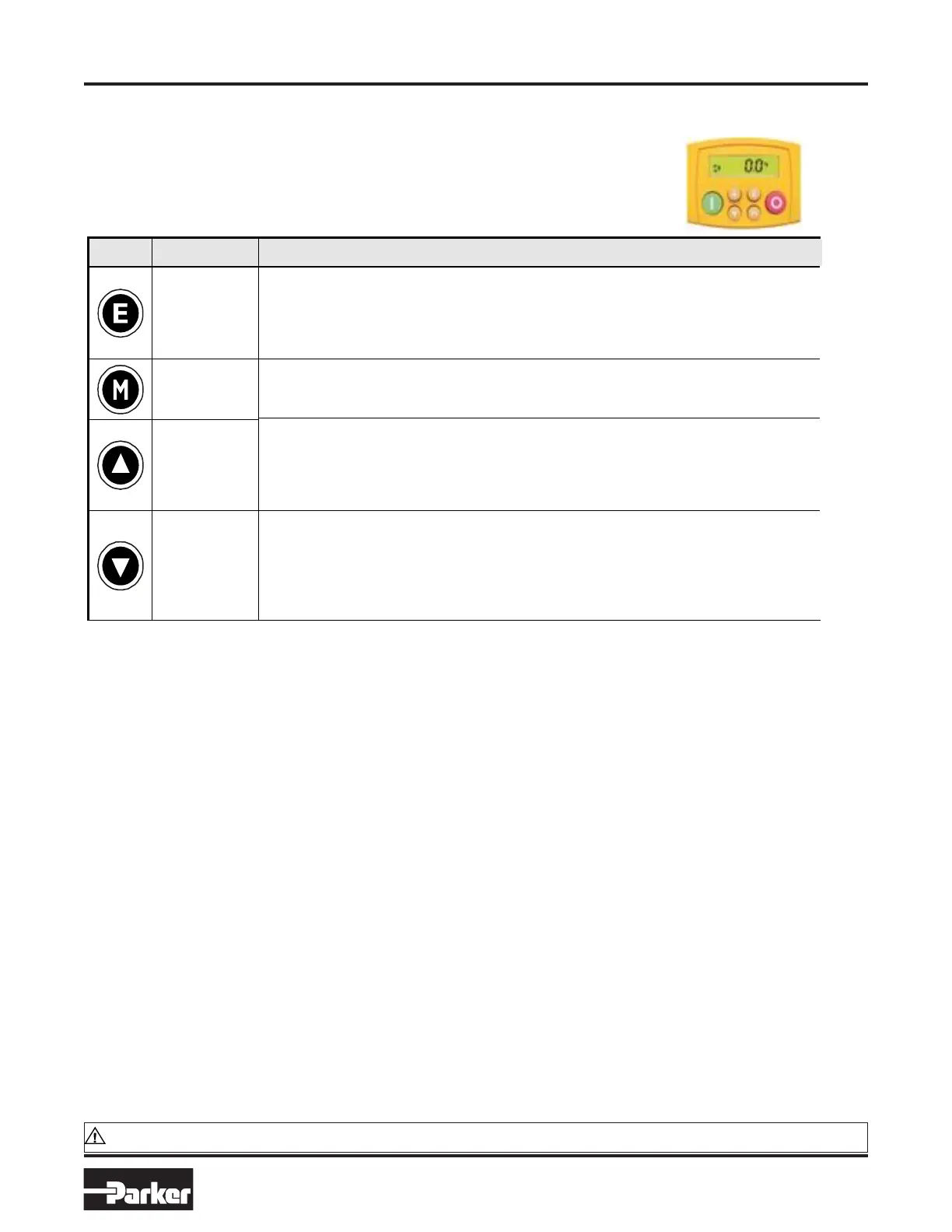

6511 Keypad
6511 Keypad Control Key Definitions
KKeeyy OOppeerraattiioonn DDeessccrriippttiioonn
Escape
Navigation - Moves upwards through the list of parameters.
Parameter - Increments the value of the displayed parameter.
Command Acknowledge - Confirms action when in a command menu.
Menu
Navigatio n - Moves downwards through the list of parameters.
Parameter - Decrements the value of the displayed parameter.
Increment
Navigation - Displays the previous level’s Menu.
Parameter - Returns to the parameter list.
Trip Message - Clear the Trip or Error message from the display.
Decrement
Navigation - Displays the next Menu level, or the first parameter of the
current Menu.
Parameter - Allows a writable parameter to be modified (this is indicated
by →→ appearing on the left of the bottom line).
