109
and pinion.
Note:
When installing a new drive shaft, it is required to adjust the shim.
5. Tighten the pinion nut.
Specified torque: 95 Nm
6. Install the propeller shaft assembly.
7. Install the underwater unit housing cover.

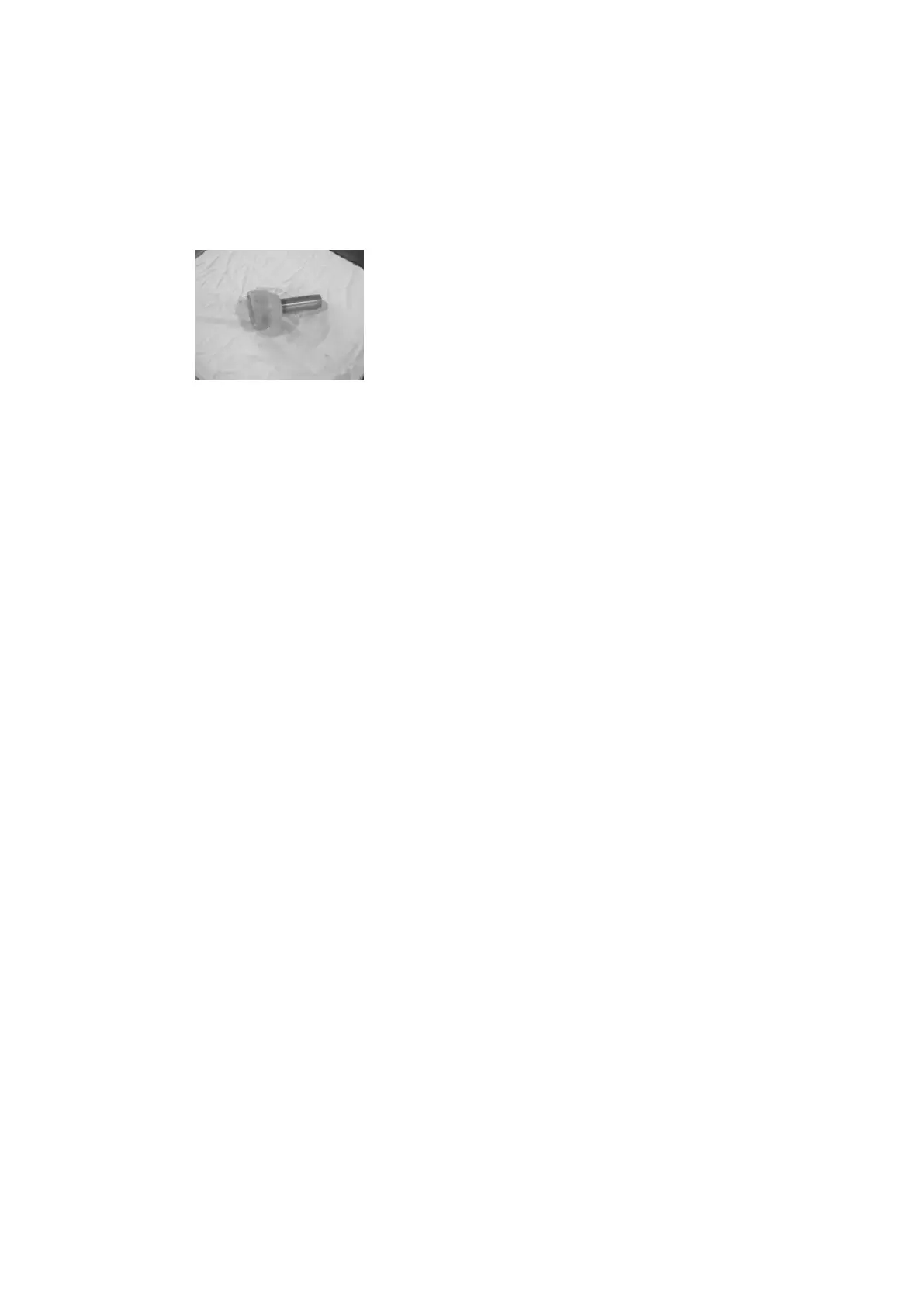

Installation tool for housing cover assembly of underwater unit
8. Check whether the gear shift is working properly.
9. Install the water pump assembly.
10. Install the anode and water inlet.
11. Install the propeller and slotted hexagon nut, place a piece of wood between the
anti-swirl baffle and the propeller,
Tighten the nut according to the specified torque.
Specified torque: 35 Nm
Note:
If the groove on the nut is not aligned with the cotter pin hole on the propeller shaft,
tighten the nut further until they are aligned.
Install the underwater unit
1. Install the locating pin.
2. Place the shift cam in the forward position. Install the underwater unit to the housing of
the water unit and tighten the bolts to the specified value.
Specified torque: 40 Nm
3. Perform shift operation and check whether it is operating normally.
4. Add gear oil with pressure filling device.
Selection of shim
When replacing the internal parts of the underwater unit or assembling a new underwater unit,
it is required to adjust the shim.
