20
Spark plug model: DPR7EA-9

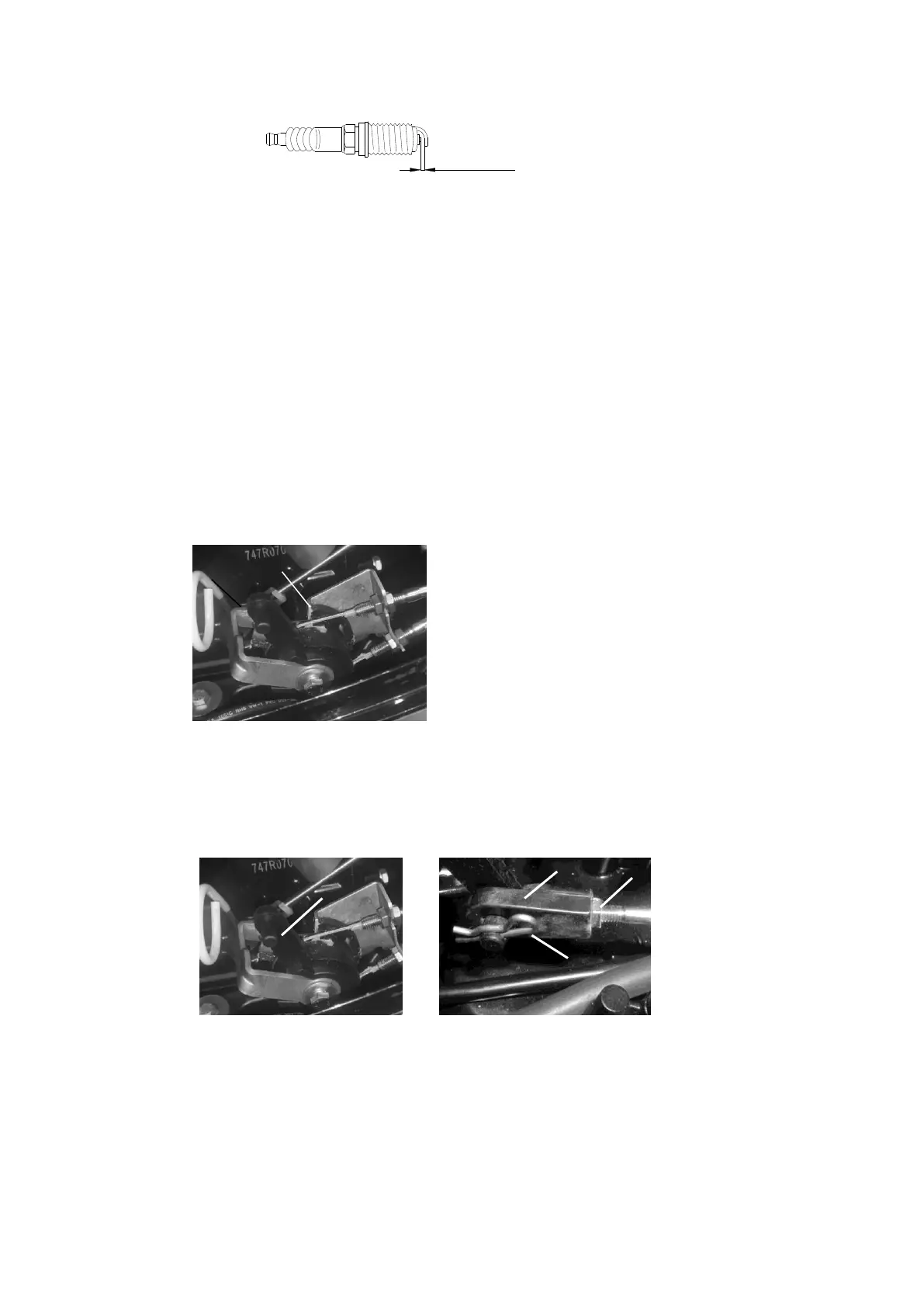

4. Check whether the electrode gap meets the specified value; If necessary, replace the
spark plug.
5. Install the spark plug and tighten it with the spark plug wrench according to the
specified torque.
Specified torque: 18 Nm
Control system
Throttle push-pull cable
1. Put the throttle grip in the closed position; Please put the shift lever to the neutral
position for the front operating model.
2. Check whether the throttle actuator driving pulley is in contact with the check plate on
the controller cable holder.
If not, adjust the throttle cable.
1. Check plate.
3. Loosen the throttle cable adjusting nut and adjust the throttle cable position; After
adjustment, tighten the throttle cable adjusting nut
The throttle control is realized by connecting the front operating model with the fixed
column on the throttle actuator through the push-pull cable
1. Fixed column; 2. Push-pull cable joint; 3. Lock nut; Step 4. Clip clutch
The adjustment method is as follows:
1. Remove the clip clutch, remove the push-pull cable joint, and loosen the lock nut of the
push-pull cable joint.
2. Adjust the screw-in depth of the joint so that the joint hole is aligned with the fixed
column of the throttle actuator driving pulley.
Note:
The push-pull cable joint must be screwed in more than 8 mm.
